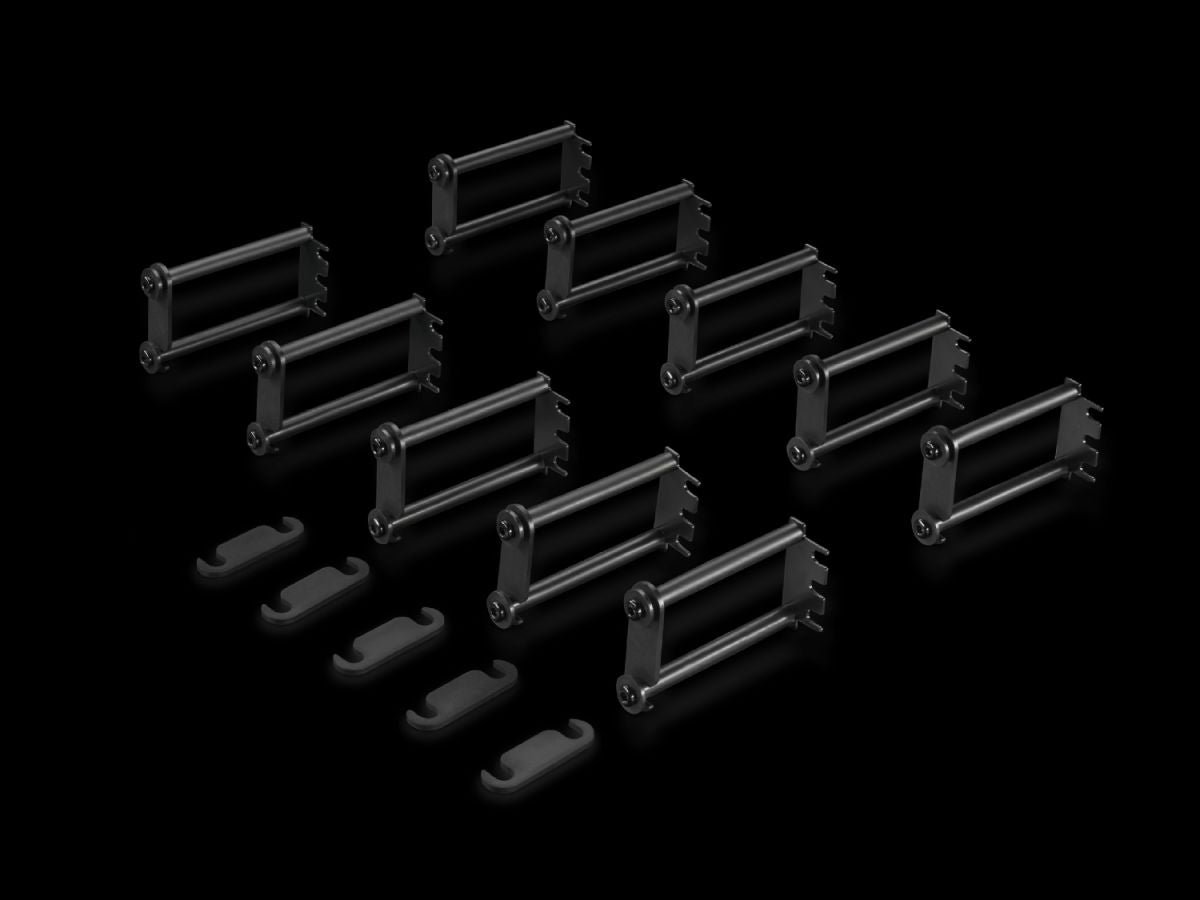

Rittal DK 7111.214, Cable routing bars, 482.6 mm (19") attachment
Rittal DK 7111.214, Cable routing bars, 482.6 mm (19") attachment
Regular price
€78,89
Regular price
Sale price
€78,89
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7111.214
For structured routing of entire cable bundles, 482.6 mm (19") attachment, connection comb.
| Article number: | DK 7111.214 |
| Product description | For structured routing of entire cable bundles, the cable bars may be secured to a variety of different positions inside the enclosure. |
| Applications | For horizontal cable routing within the distributor level. Thanks to their open mounting holes, they can also be retrospectively slotted onto the 482.6 mm (19") system punchings of the mounting level at any time and secured with the existing mounting screws of the installed components. |
| Material | Support: Sheet steelCable routing bars, connection combs: Plastic UL 94-V0 |
| Colour | RAL 9005 |
| Supply includes | Cable routing barsConnection combs |
| Number connection combs | 5 |
| Note | Size of individual chambers (WxD) approx. 34 x 100 mm |
| Units | 1 U |
| Packs of | 10 pc(s). |
| Net weight | 0.57 kg |
| Gross weight | 0.668 kg |
| PCF per pack (cradle-to-gate) | 2.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73182900 |
| EAN | 4028177550360 |
| ETIM 9 | EC000322 |
| ECLASS 8.0 | 27400604 |
| Product description | DK Cable routing bars, 482.6 mm (19") attachment, 1 U |
