Rittal

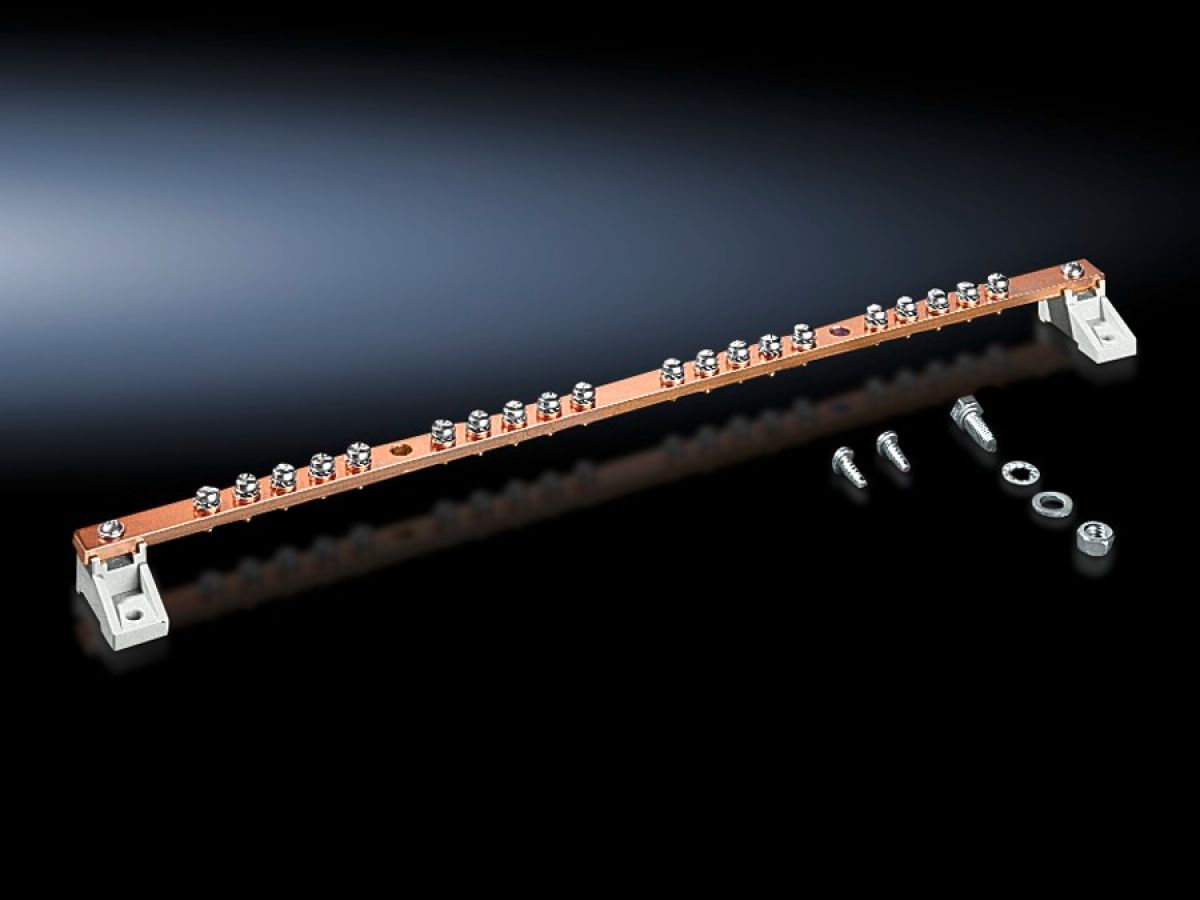

Rittal DK 7113.000, Earth rail, horizontal
Rittal DK 7113.000, Earth rail, horizontal
Regular price
€45,05
Regular price
Sale price
€45,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7113.000
Potential equalisation rail, current carrying capacity approx. 200 A.
| Article number: | DK 7113.000 |
| Product description | Current carrying capacity approx. 200 A. |
| Supply includes | Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm20 connection points with M5 screws2 earth connections 25 mm²2 isolatorsAssembly parts |
| Dimensions | Width: 15 mmHeight: 5 mmLength: 450 mm |
| To fit | Enclosure type: AXVXVX ITTSTS ITAX wall-mounted enclosure, 3-partWidth: > 600 mmDepth: > 600 mmTo fit width/depth: 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.402 kg |
| Gross weight | 0.436 kg |
| Customs tariff number | 74198090 |
| EAN | 4028177124943 |
| ETIM 9 | EC000329 |
| ECLASS 8.0 | 27400605 |
| Product description | DK earth rail, horizontal, length 450 mm, W/D: >600 mm |
