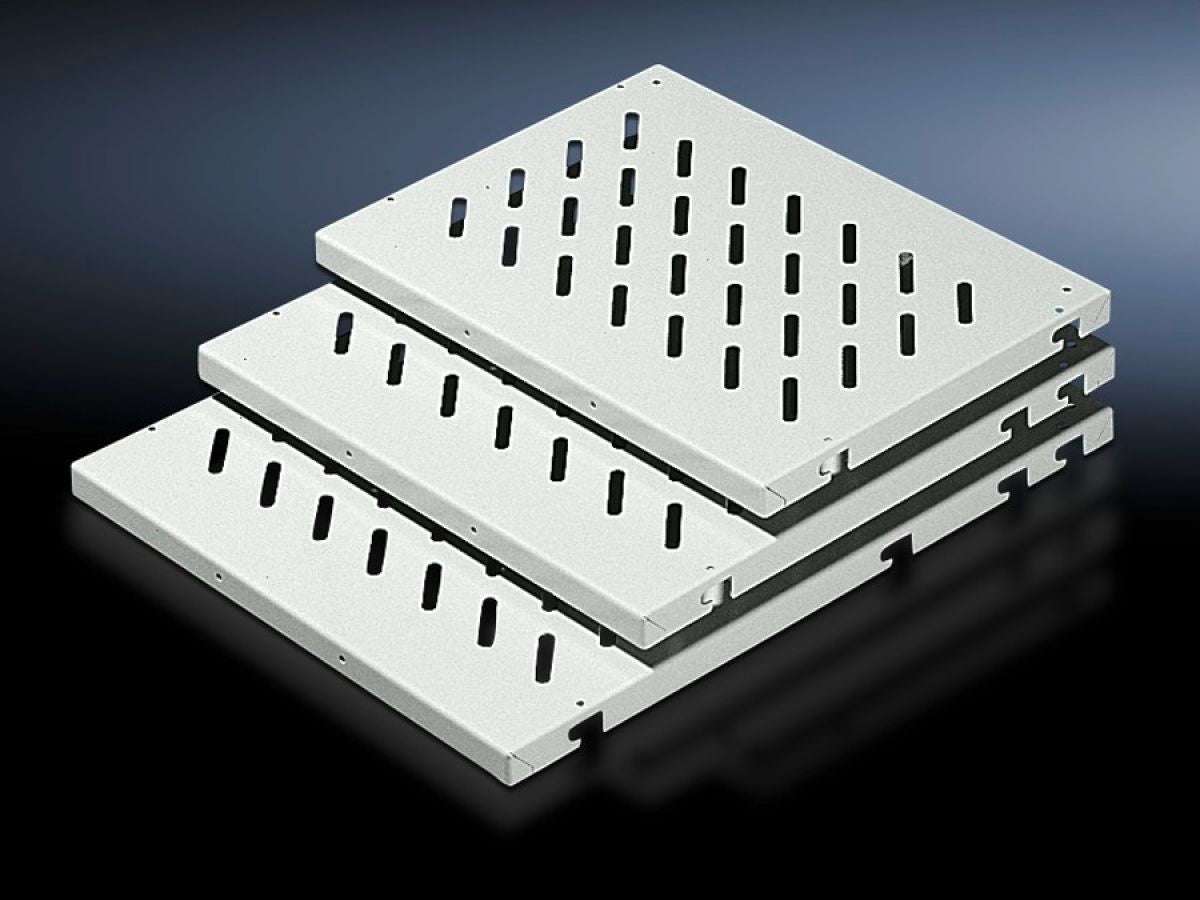

Rittal DK 7145.735, Component shelf, 482.6 mm (19") configuration Enclosures with L-shaped mounting angles front and rear
Rittal DK 7145.735, Component shelf, 482.6 mm (19") configuration Enclosures with L-shaped mounting angles front and rear
Regular price
€79,89
Regular price
Sale price
€79,89
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7145.735
Provide several attachment points, so the distance between the 482.6 mm (19˝) mounting angles is variable, load capacity: 50 kg.
| Article number: | DK 7145.735 |
| Product description | Depending on their depth, the component shelves have several attachment points, so the distance between the 482.6 mm (19˝) mounting angles is variable within certain limits. Each component shelf secured in this way can be retrospectively upgraded to full withdrawal using telescopic slides. For this purpose, the telescopic slides are screw-fastened in place of the spacers. |
| Applications | For mounting two between 482.6 mm (19") mounting angles |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Assembly parts |
| Distance between mounting levels | 548 mm648 mm698 mm |
| Load capacity | 50 kg area load |
| Note | For TS: If L-shaped mounting angles based on TS are used in network enclosures, adaptor 7827.300 is required |
| Dimensions | Width: 409 mmDepth: 700 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.57 kg |
| Gross weight | 3.77 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177221420 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Component shelf, WxD: 409x700 mm, 50 kg, distance between levels: variable, depth-variable on 2 482.6 mm (19") attachment levels, RAL 7035 |
