Rittal

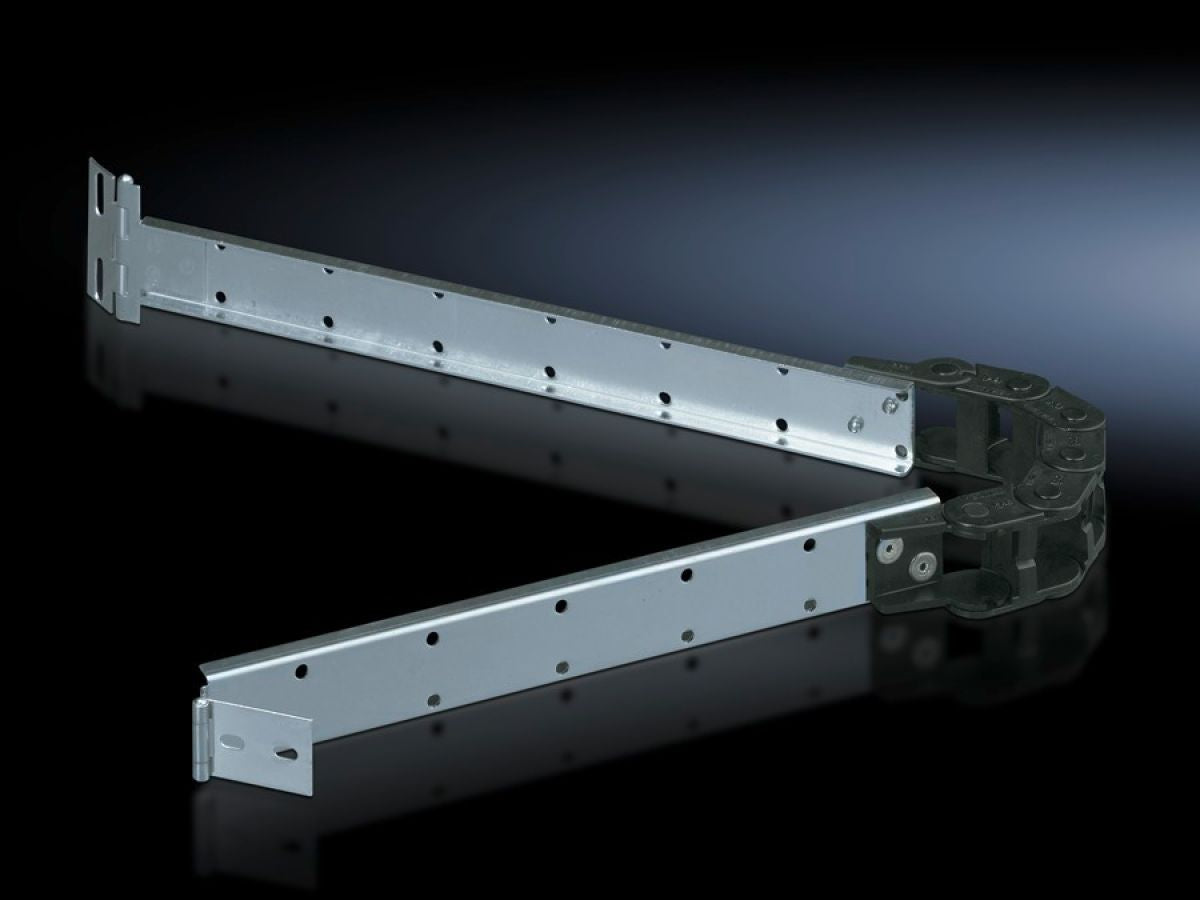

Rittal DK 7163.565, Cable support hinged, with anti-kink device and clamp
Rittal DK 7163.565, Cable support hinged, with anti-kink device and clamp
Regular price
€123,30
Regular price
Sale price
€123,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7163.565
Kink-free cable routing in the central part via mobile chain links, the attachment may be released on both sides, thanks to clamps.
| Article number: | DK 7163.565 |
| Product description | For secure routing of connection cables from the component shelf to the clamping point. Kink-free cable routing in the central part via mobile chain links. The attachment may be released on both sides thanks to clamps. |
| Material | Sheet steel, zinc-platedCentre part: Plastic |
| Supply includes | Assembly parts |
| Note | Max. depth of component shelves = Enclosure depth - 200 mm. |
| To fit | Depth: > 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.7 kg |
| Gross weight | 0.78 kg |
| PCF per pack (cradle-to-gate) | 2.8 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177438576 |
| ETIM 9 | EC000322 |
| ECLASS 8.0 | 27400604 |
| Product description | DK Cable support, kink-free, For D: > 600 mm, Max. depth component shelf = depth rack-200 mm |
