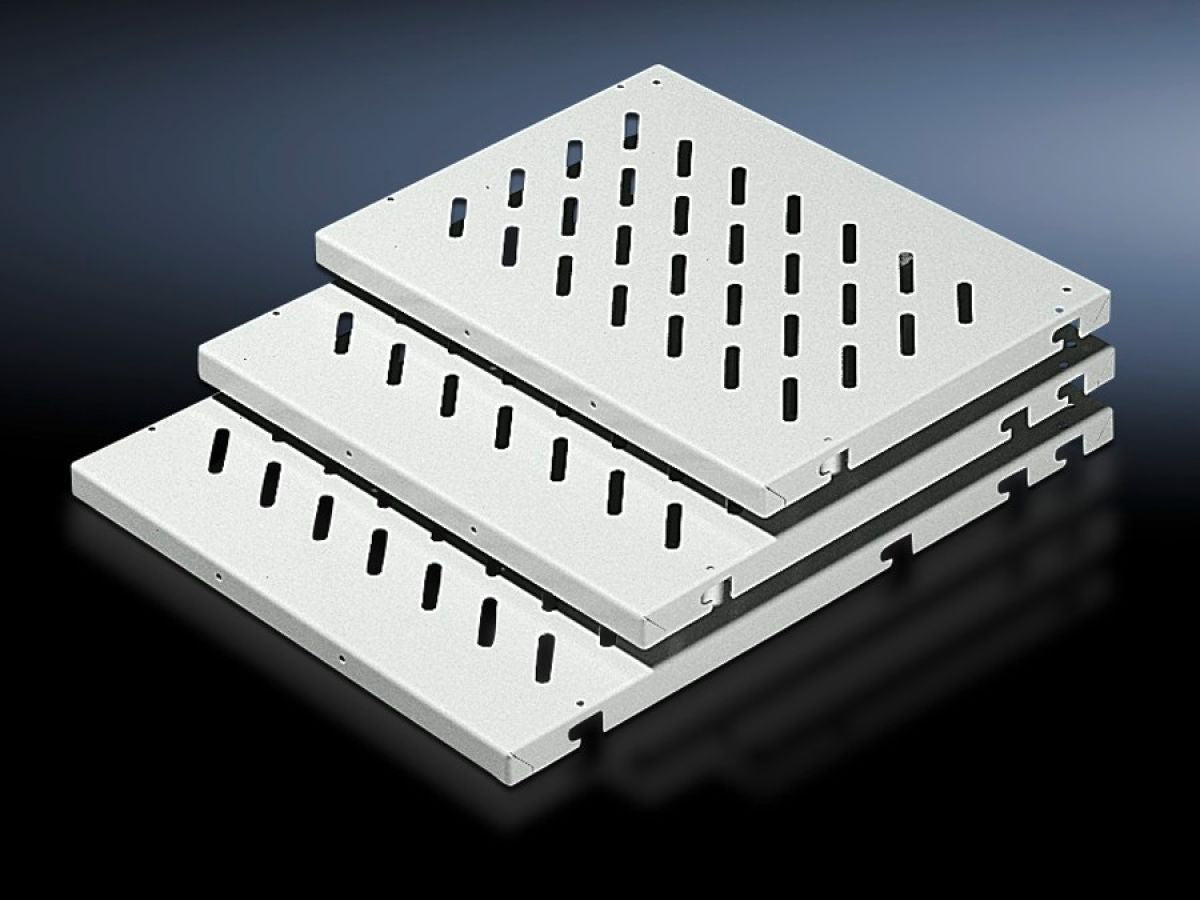

Rittal DK 7165.035, Component shelf for frame attachment
Rittal DK 7165.035, Component shelf for frame attachment
Regular price
€67,32
Regular price
Sale price
€67,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7165.035
For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation, enclosure width: 600 and 800 mm, load capacity: 50 kg / 100 kg.
| Article number: | DK 7165.035 |
| Design | Slotted |
| Product description | For frame attachment, for installation in enclosures without 482.6 mm (19") accommodation. |
| Benefits | Mounting bolts or mounting rails may be installed on a 25 mm pitch pattern in the enclosure depth. |
| Applications | For installation in enclosures without 482.6 mm (19") accommodation |
| Material | Sheet steel |
| Surface finish | Spray-finished |
| Colour | RAL 7035 |
| Supply includes | Component shelf, slotted4 pc(s). fixing bolts |
| Installation options | Static installation: Component shelf, 50 kg with fixing bolts on punched section without mounting flange |
| Load capacity | 50 kg area load |
| Assembly instruction | Additionally, two punched sections with mounting flanges are required for the inner mounting level |
| Note | Max. depth of component shelves = Enclosure depth - 100 mm. |
| Dimensions | Width: 471 mmHeight: 29 mmDepth: 500 mm |
| To fit | Enclosure type: VXVX ITTS ITWidth: 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 2.78 kg |
| Gross weight | 2.98 kg |
| PCF per pack (cradle-to-gate) | 12.1 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177165809 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Component shelf, WHD: 471x29x500 mm, 50 kg, Slotted, For W: 600 mm, RAL 7035 |
