Rittal

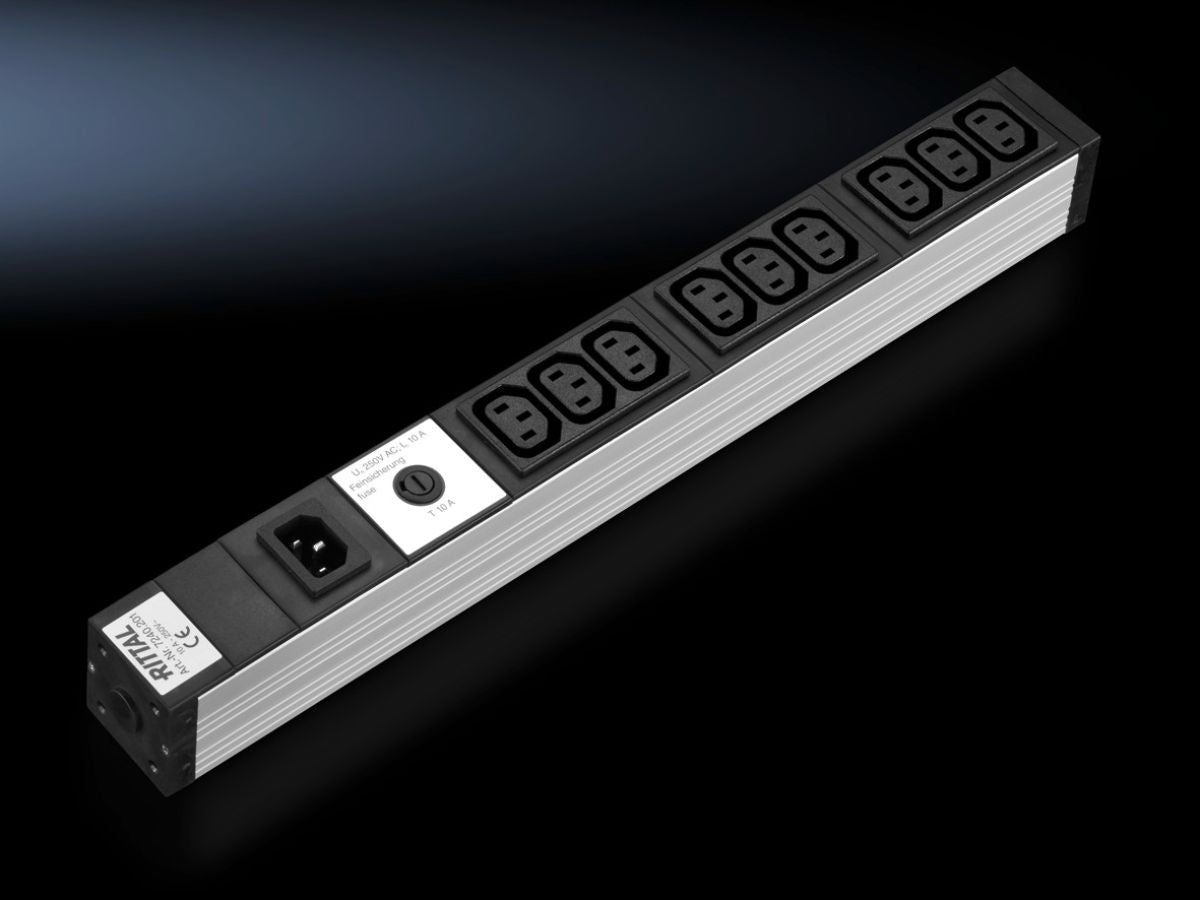

Rittal DK 7240.201, Socket strip for IEC 320 connectors
Rittal DK 7240.201, Socket strip for IEC 320 connectors
Regular price
€110,45
Regular price
Sale price
€110,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7240.201
Socket strips in various designs for attaching into frames, wall-mounted distributors DK (horizontal) or between a pair of 482.6 mm (19") mounting angles.
| Article number: | DK 7240.201 |
| Product description | The socket strips are available in various country-specific variants with different functional elements. Special attention has been devoted to practical, universal fastening: Variable attachment facilities have been created with an angle bracket which may be inserted in four positions. Hence, for example, the 482 mm long socket strips may optionally be mounted on 482.6 mm (19") mounting angles, the 482.6 mm (19") mounting frame, on the enclosure frame, or in the rear section of the wall-mounted distributor. Socket strips with a length of more than 482 mm can only be fitted on the enclosure frame. The socket strip may be inserted into all sections with a 25 mm hole pattern, without the need for additional mounting accessories. This makes selection much easier, as well as providing additional flexibility and saving on warehousing. Provision has also been made for cable routing of the infeed, and when mounting in the 482.6 mm (19") section there is adequate space to route the infeed between the socket strip and the profile rail without kinks. The arrangement of the IEC 320 sockets at a 45° angle allows unrestricted use of angular connectors. |
| Benefits | Practical, universal fastening |
| Material | Aluminium section, natural anodisedSocket inserts: Polycarbonate |
| Supply includes | Socket strip2 mounting bracketsAssembly partsIntegral miniature fuse 5 x 20 mm (10 A)No connection cable, to be provided by the customer. |
| Design | With IEC 320 input |
| Sockets | 9 x IEC 320 socket C13 |
| Dimensions | Height: 44 mmDepth: 44 mmLength: 482.6 mm |
| Length of connection cable | 2 m |
| Connection cable (type) | H05VV-F3G1.5 |
| Mounting dimensions | 452.5 mm |
| Tolerance of mounting dimensions | ± 25 mm |
| Rated operating voltage | 250 V AC, 50 Hz |
| Rated voltage | 250 V AC, 50 Hz |
| Rated current (max.) | 10 A |
| Type of electrical connection | IEC 60320: C14 |
| Installation options | Components with a 25 mm pitch pattern |
| Note | Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes |
| Standards | Sockets: DIN VDE 0620-1 |
| Colour of socket | Black |
| Packs of | 1 pc(s). |
| Net weight | 0.54 kg |
| Gross weight | 0.61 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177237544 |
| ETIM 9 | EC000330 |
| ECLASS 8.0 | 27142604 |
| Product description | DK Socket strip, IEC 320 socket C13, 9-way, 250 V, 10 A, LHD: 482,6x44x44 mm, For IEC 320 connectors with IEC 320 input |
