Rittal DK 7284.135, Mounting angles additional fastening attachment with L-shaped mounting angles
Rittal DK 7284.135, Mounting angles additional fastening attachment with L-shaped mounting angles
Regular price
€42,76
Regular price
Sale price
€42,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7284.135

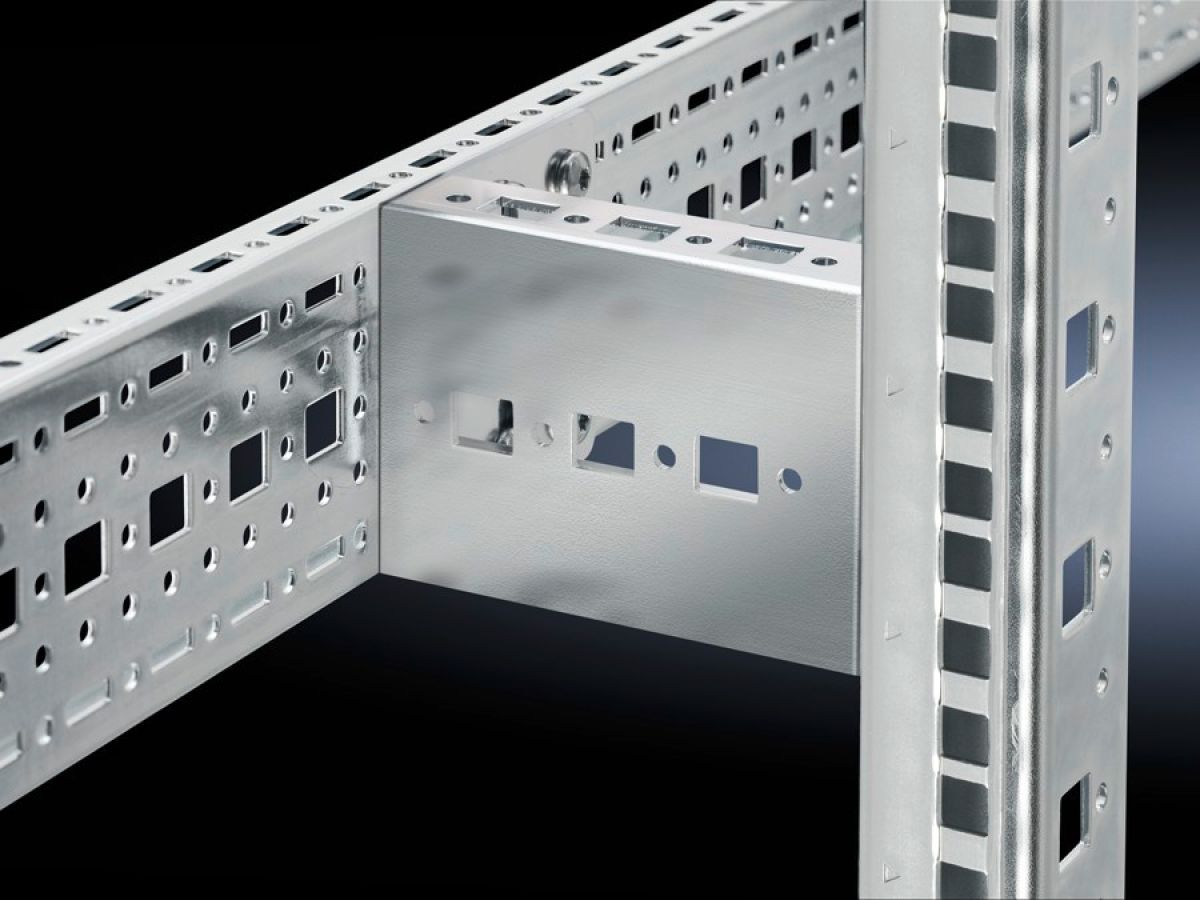

Counteracts bending of the mounting angles in case of unevenly distributed loads, it is attached directly to 482.6 mm (19˝) mounting angles and to the punched section with mounting flange fitted in the depth.
| Article number: | DK 7284.135 |
| Product description | The additional fastening attachment counteracts bending of the mounting angles mounted on installation brackets in case of unevenly distributed loads. It is attached directly to 482.6 mm (19") mounting angles and to the punched section with mounting flange fitted in the depth (inner mounting level). |
| Applications | For upgrading existing TS applications |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| To fit | Enclosure type: TSWidth: 800 mm |
| Installation dimensions | Installation depth for components: 482.6 mmInstallation width for components: 19" |
| Assembly instruction | Additionally, the TS punched section with mounting flange 17 x 73 mm is required for the inner mounting level |
| Packs of | 2 pc(s). |
| Net weight | 0.6 kg |
| Gross weight | 0.621 kg |
| Customs tariff number | 73182900 |
| EAN | 4028177167230 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | DK Mounting angles additional fastening attachment, 482.6 mm (19"), For L-shaped mounting angles, For W: 800 mm, For TS |
