Rittal

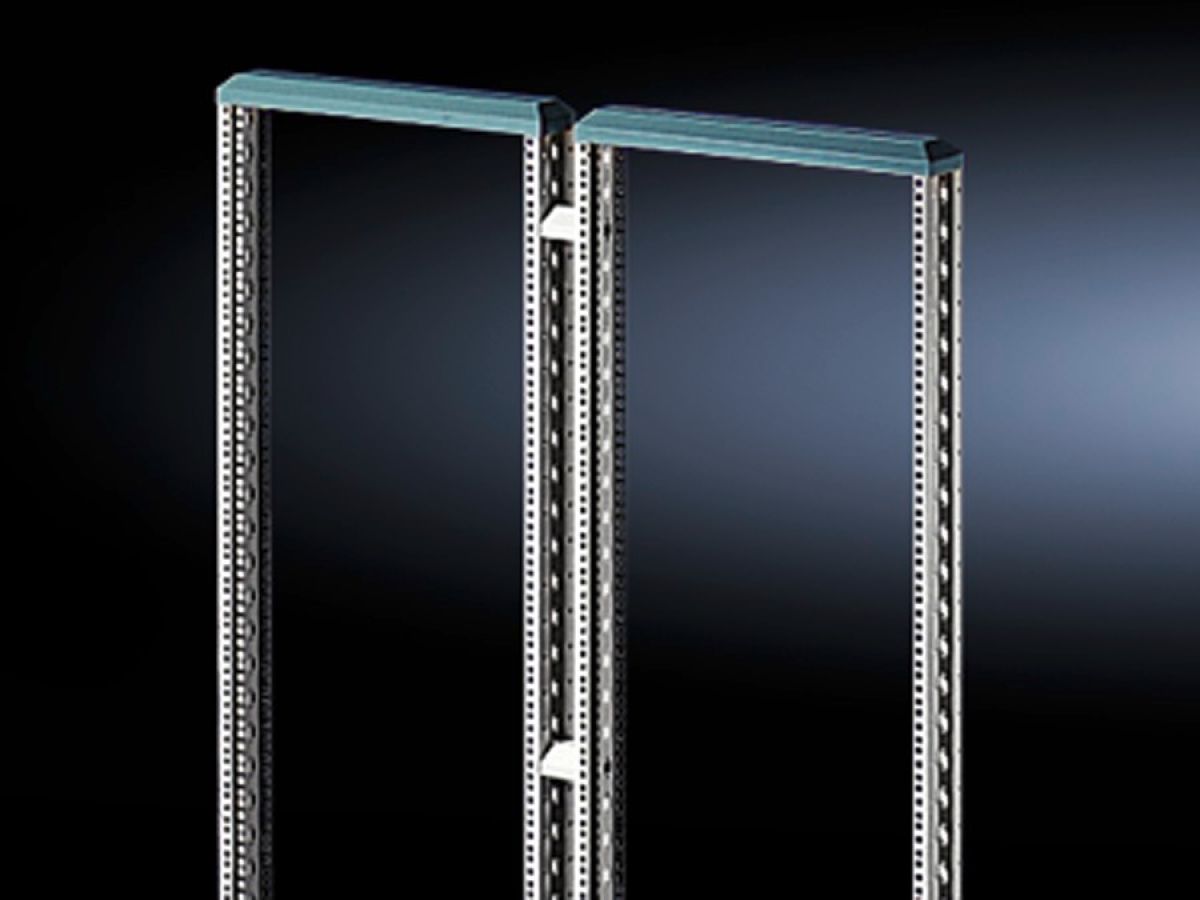

Rittal DK 7297.000, Second pair of mounting angles for Data Rack
Rittal DK 7297.000, Second pair of mounting angles for Data Rack
Regular price
€210,27
Regular price
Sale price
€210,27
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7297.000
To accommodate 482.6 mm (19") network components or for the attachment of component shelves and slide rails.
| Article number: | DK 7297.000 |
| Product description | To accommodate 482.6 mm (19") network components or for the attachment of component shelves and slide rails. 482.6 mm (19") punched profile at the front, hole centre distance 465 mm (470 mm at the rear), tailored to the attachment of patch panels and cable routing rails. The mounting level may be positioned on a 50 mm pitch pattern. Minimum distance between levels 150 mm, maximum distance between levels 350 mm. |
| Material | Sheet steel, 2 mm |
| Surface finish | Spray-finished |
| Colour | Profile frame: RAL 7035Trim panel: RAL 5018 |
| Supply includes | Torsionally stiff profile frame with 482.6 mm (19") punchingsMounting accessories |
| Installation dimensions | Installation depth for components: 482.6 mmInstallation width for components: 19" |
| Units | 36 U |
| Packs of | 1 pc(s). |
| Net weight | 12.028 kg |
| Gross weight | 12.661 kg |
| PCF per pack (cradle-to-gate) | 48.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94039910 |
| EAN | 4028177128811 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Second pair of mounting angles, 36 U, 482.6 mm (19"), For Data Rack |
