Rittal DK 7320.570, CMC III sensors
Rittal DK 7320.570, CMC III sensors
Regular price
€223,40
Regular price
Sale price
€223,40
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7320.570
CMC-TC motion sensor
| Article number: | DK 7320.570 |
| Design | Motion sensor |
| Product description | CMC III sensors are used for monitoring the physical environment and can be connected directly to the PU via a CAN bus connection cable RJ45. The sensors may also be linked together to form a bus. |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III processing unit or IoT interface |
| Material | PlasticFront: SmoothEnclosure: Textured |
| Colour | Enclosure: white |

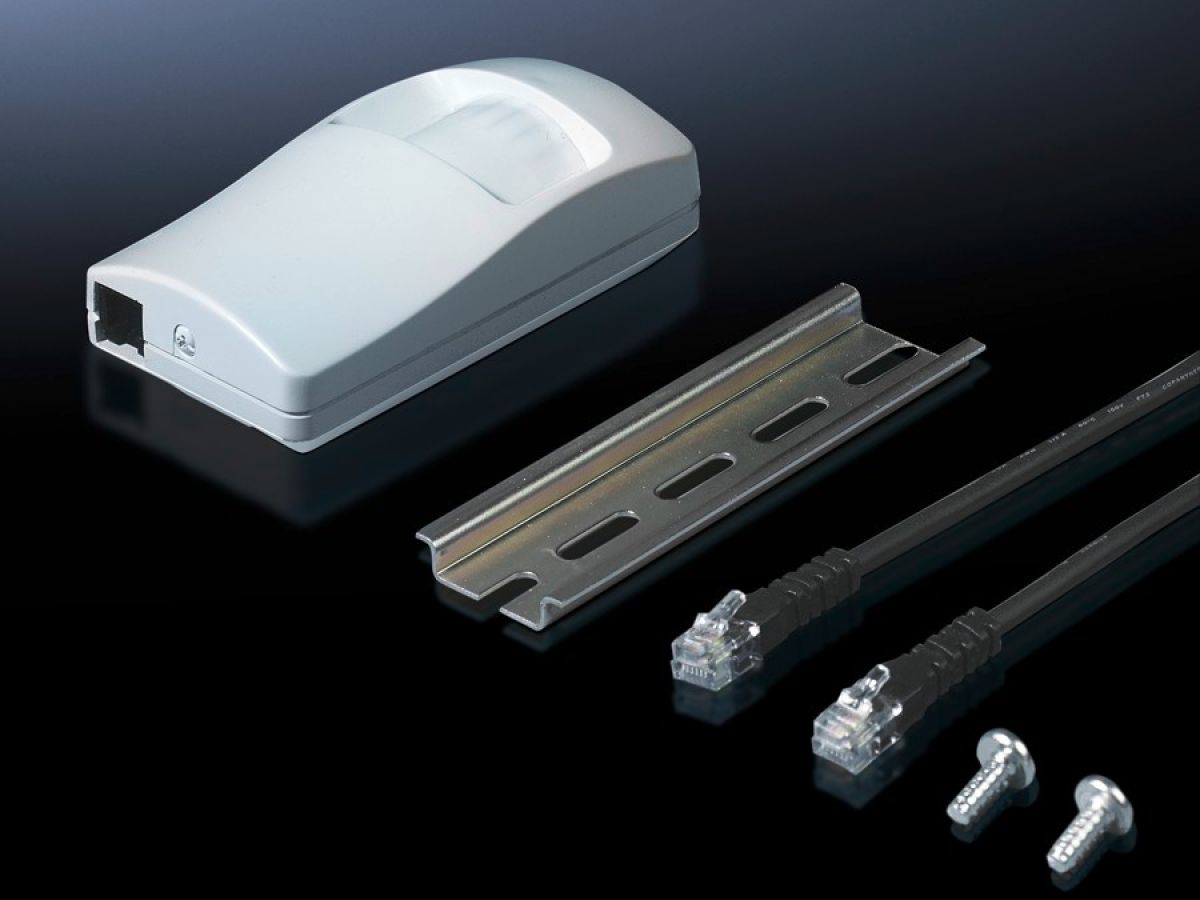

| Supply includes | SensorMounting plateAssembly partsConnection cable with connectorMounting clips for support railsAssembly parts |
| Connection to the CAN bus | Indirect, via CMC III CAN bus interfaces |
| Interfaces | RJ12 |
| No. of participants per IoT interface (max.) | 32 |
| No. of participating PU compact (max.) | 4 |
| No. of participating PU (max.) | 32 |
| Note | Extended delivery times. |
| Measuring technique | Infrared (IR) detector |
| Dimensions | Width: 59 mmHeight: 102 mmDepth: 32 mm |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Packs of | 1 pc(s). |
| Net weight | 0.25 kg |
| Gross weight | 0.267 kg |
| PCF per pack (cradle-to-gate) | 1 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 85311095 |
| EAN | 4028177367432 |
| ETIM 9 | EC002627 |
| ECLASS 8.0 | 27189253 |
| Product description | DK CMC-TC Motion sensor |
