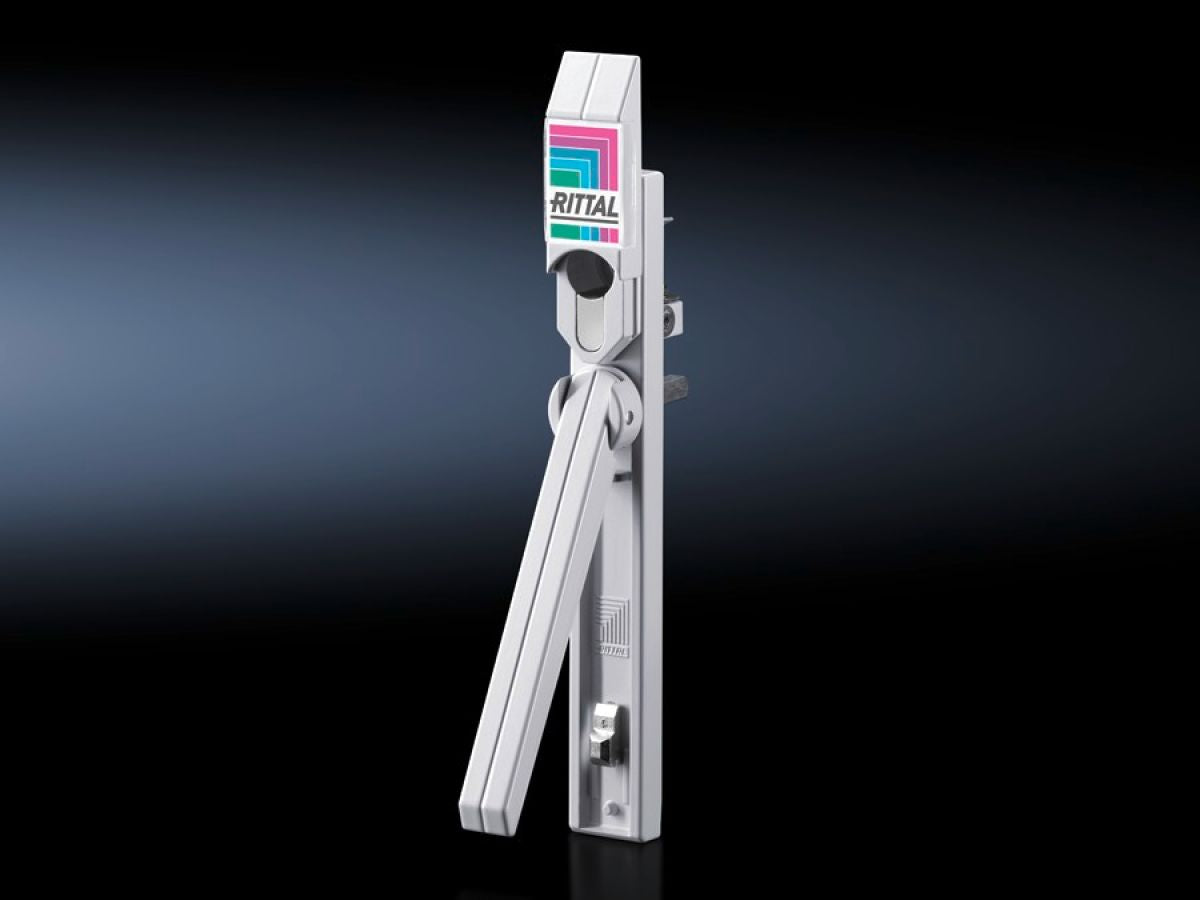

Rittal DK 7320.700, Handles, electromagnetic for CMC III and IoT Interface
Rittal DK 7320.700, Handles, electromagnetic for CMC III and IoT Interface
Regular price
€253,25
Regular price
Sale price
€253,25
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7320.700
Handles may be integrated into various enclosure systems.
| Article number: | DK 7320.700 |
| Design | Ergoform-S handle |
| Product description | For control and monitoring via a central CMC III type control unit and IoT interface. |
| Benefits | Autonomous access administration and handle release via numerical code or transponder card |
| Applications | Central access administration via the network - no need for keys or lock systems |
| Colour | RAL 7035 |
| Supply includes | Connection cable (3 m) with RJ 12 connector |
| Lock type | Electromagnetic |
| Rated current max. | 0.1 A |
| No. of participants per IoT interface (max.) | 16 |
| No. of participating PU compact (max.) | 2 |
| No. of participating PU (max.) | 16 |
| Number subscribers per PDU note | Max. 5 p. for power supply with PoE |
| Operating temperature range | 5 °C...40 °C |
| Packs of | 1 pc(s). |
| Net weight | 0.76 kg |
| Gross weight | 0.76 kg |
| Customs tariff number | 83024110 |
| EAN | 4028177367470 |
| ETIM 9 | EC000327 |
| ECLASS 8.0 | 27409217 |
| Product description | DK CMC III handle, electromagnetic, Ergoform-S handle with master key function for TE, access control via CMC III Processing Unit, with position sensor for monitoring the manual handle, RAL 7035 |
