Rittal

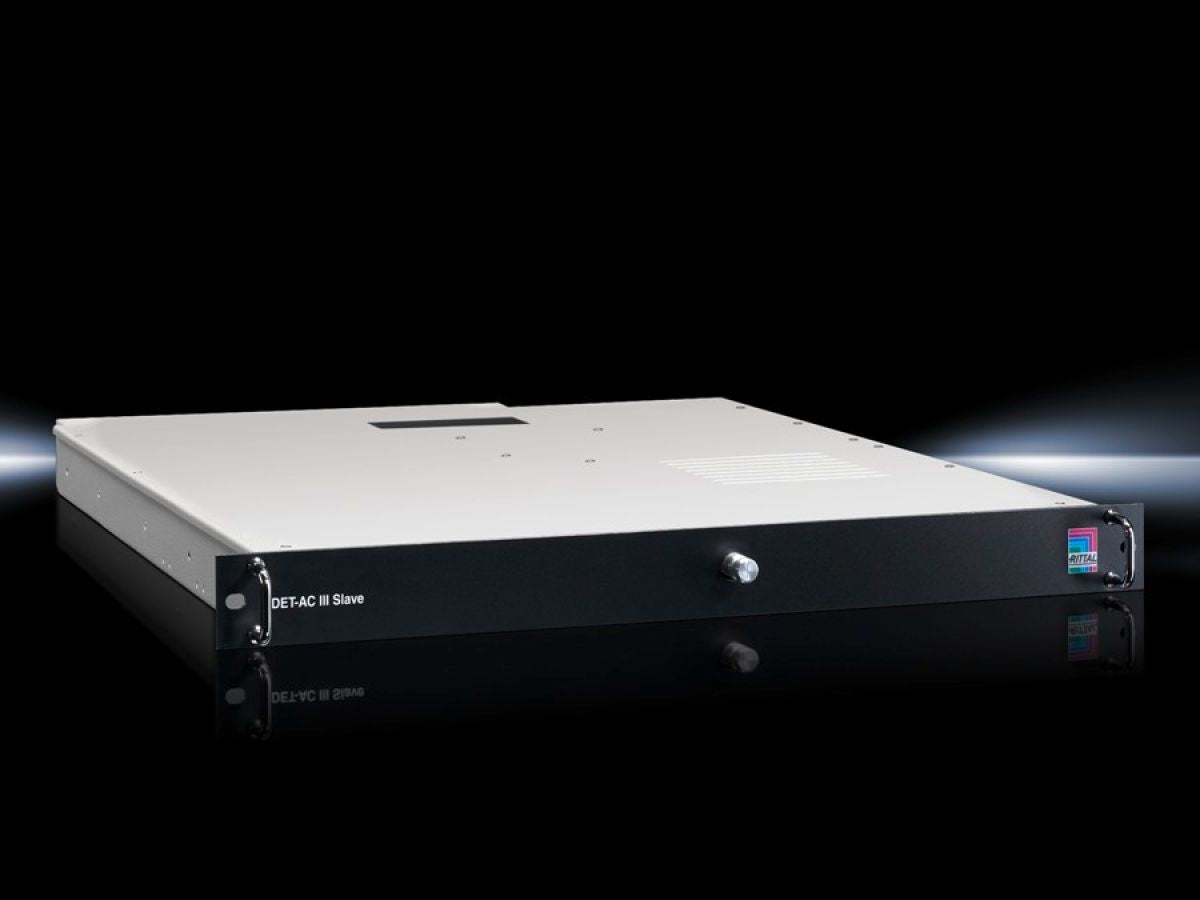

Rittal DK 7338.321, Add-on unit DET-AC III slave
Rittal DK 7338.321, Add-on unit DET-AC III slave
Regular price
€4.524,98
Regular price
Sale price
€4.524,98
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7338.321
In conjunction with the DET-AC III slave system, up to five bayed enclosures may be extinguished.
| Article number: | DK 7338.321 |
| Product description | This add-on unit to the DET AC III Master includes an additional extinguisher unit. In addition to the DET-AC III unit, a DET-AC III slave unit is used for each additional bayed enclosure and supplies the extinguishing agent for that enclosure. Detection occurs via the DET-AC III master system, even when multiple enclosures are bayed together. If a main alarm is reported, the DET-AC III Master will activate extinguishing in all systems simultaneously. |
| Benefits | Innovative extinguisher NOVEC™ 1230: eco-friendly, non-critical for IT components, non-conductive |
| Technical specifications | Extinguisher is emitted via a propellant cartridge, with integral electrical activation unit |
| Material | Sheet steel |
| Colour | Enclosure: RAL 7035Front: RAL 9005 |
| Extinguisher gas | Type: Novec™ 1230Fill volume: 1.8 l |
| Tank | Material: AluminiumVolume: 2 l |
| Interfaces | 4 x/3 x relay outputs for alarms and faults (terminals/RJ12 jacks) |
| Uninterruptible mains electricity operation | approx. 4 h |
| Note | This system is designed solely for use in closed, non-accessible enclosure systems with a maximum volume of 2.8 m³. |
| Dimensions | Width: 482.6 mmHeight: 44 mmDepth: 660 mm |
| Operating temperature range | 10 °C...40 °C |
| Storage temperature range | -20 °C...65 °C |
| Storage temperature range of batteries | -15 °C...40 °C |
| Relative humidity (non-condensing) | 96 % |
| Rated operating voltage | 24 V (DC) |
| Packs of | 1 pc(s). |
| Net weight | 19 kg |
| Gross weight | 19.5 kg |
| PCF per pack (cradle-to-gate) | 72.8 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 84248970 |
| EAN | 4028177699335 |
| ETIM 9 | EC002685 |
| ECLASS 8.0 | 40040104 |
| Product description | DK DET-AC III slave, Add-on unit to the DET AC III Master, Extinguishing agent supply for each bayed enclosure, Detection and activation occurs via the DET-AC III master system, Communication Master-Slave via CAN bus interface |
