Rittal DK 7480.035, Energy-Box, 482.6 mm (19")
Rittal DK 7480.035, Energy-Box, 482.6 mm (19")
Regular price
€281,95
Regular price
Sale price
€281,95
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7480.035

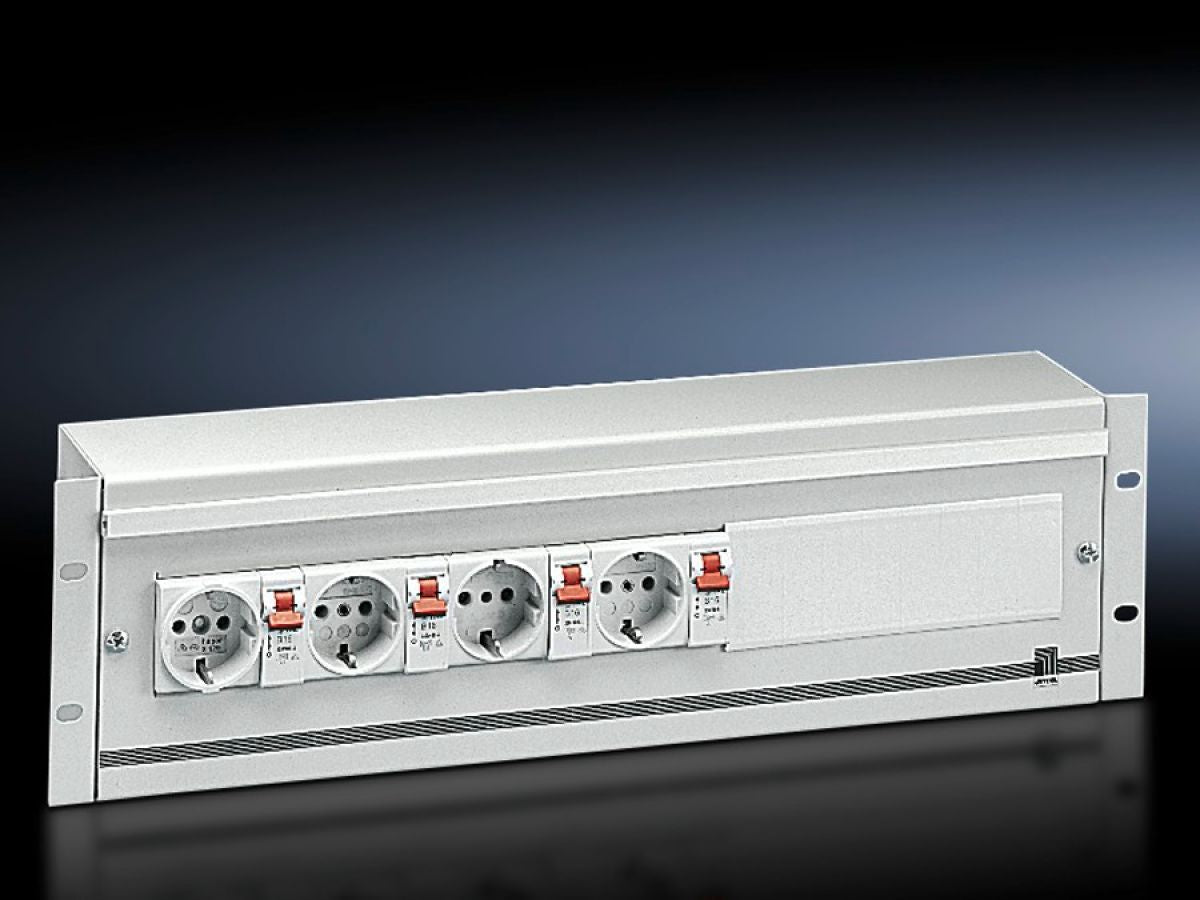

Depth-variable top hat rail for installed equipment to DIN 43 880, sizes 1 – 3 , maximum accommodation of 22 items of installed equipment.
| Article number: | DK 7480.035 |
| Product description | Depth-variable top hat rail for installed equipment to DIN 43 880 in sizes 1 – 3, e.g. to accommodate flush-type socket outlets, circuit-breakers, etc., with cable clamping at the rear and one N and one PE rail each on an insulated base/plinth. |
| Colour | RAL 7035 |
| Supply includes | Energy-Box with depth-variable top hat rail for installed equipment to DIN 43880, sizes 1 – 3, with brush strip for cable entry at the rearPlastic hood including extension cover (UL94-V0)44 connection clamps, 4 mm²2 connection clamps, 16 mm²2 blanking covers12 clips for strain relief of the connection cablesIdentification strips, self-adhesive |
| Max. pitch units @ 18 mm | 22 |
| Note | Individual population with circuit-breakers at the factory available on request. |
| Dimensions | Width: 482.6 mmHeight: 132.5 mmDepth: 155 mm |
| Units | 3 U |
| Packs of | 1 pc(s). |
| Net weight | 2.354 kg |
| Gross weight | 2.54 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177166004 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Energy-Box, WHD: 482,6 (19")x132,5x155 mm, max. 22 pitch units |
