Rittal

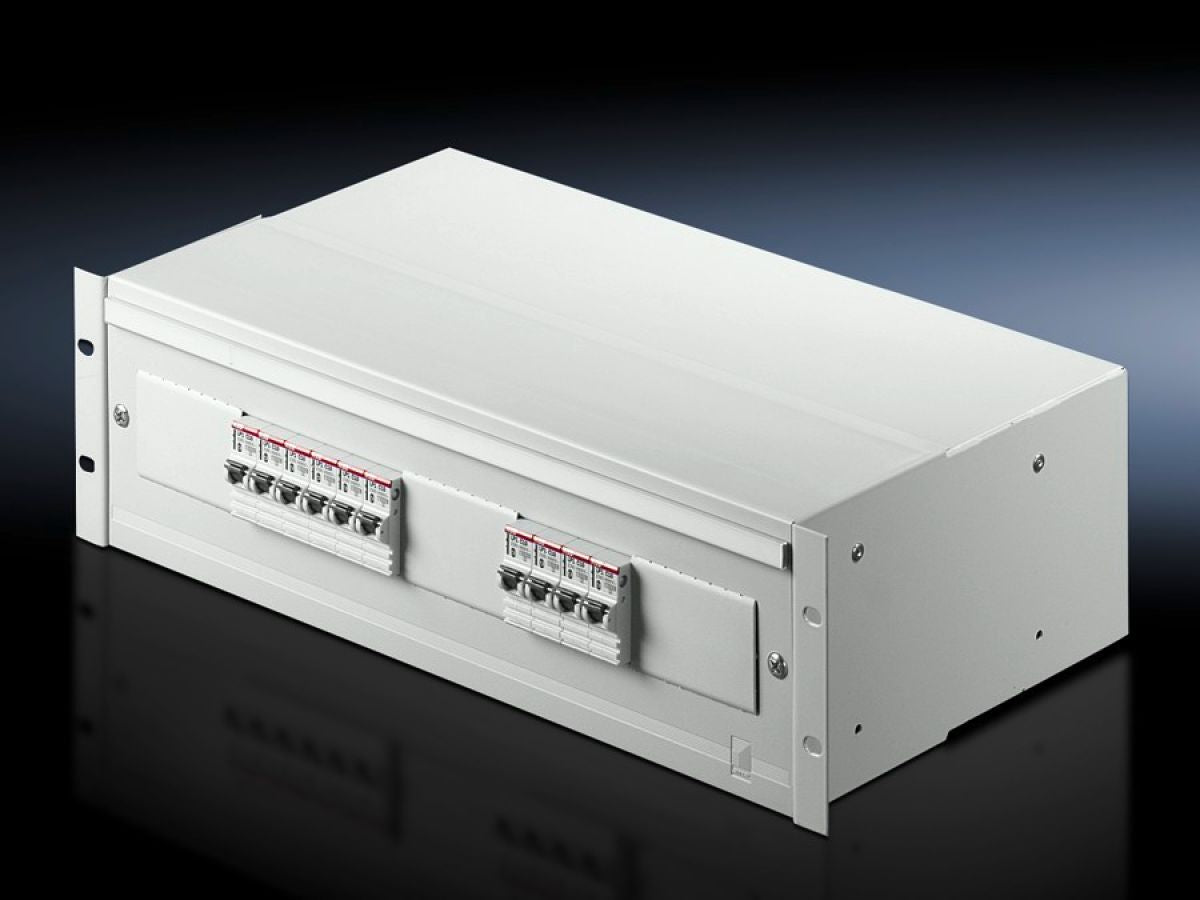

Rittal DK 7480.300, Energy-Box, 482.6 mm (19") Pull-out
Rittal DK 7480.300, Energy-Box, 482.6 mm (19") Pull-out
Regular price
€450,62
Regular price
Sale price
€450,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7480.300
Designed to accommodate both DC and AC components, pull-out component front for optimum access to the wiring space from above and below.
| Article number: | DK 7480.300 |
| Product description | Depth-variable top hat rail for snap-in attachment of installed equipment to DIN 43 880 in sizes 1 – 3 (e.g. to accommodate flush-type socket outlets, circuit-breakers, etc. or entire installed assemblies). Cable clamping at the rear. Two power distribution rails with connection clamps on an insulated base/plinth. Plastic cover including extension cover. Maximum capacity = 22 HP (22 x 18 mm = 396 mm). Enclosure height: 3 U. Enclosure depth: 223 mm. Maximum extension: 220 mm. Connection clamps: 4 clamps 35 mm², 18 clamps 16 mm² (per rail). |
| Colour | RAL 7035 |
| Supply includes | Energy-Box with plastic blanking covers.Connection clamp18 connection clamps, 16 mm²4 connection clamps, 35 mm²Strain reliefIdentification stripsBrush strip |
| Max. pitch units @ 18 mm | 22 |
| Dimensions | Width: 482.6 mmDepth: 220 mm |
| Units | 3 U |
| Packs of | 1 pc(s). |
| Net weight | 6.1 kg |
| Gross weight | 6.14 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177247529 |
| ETIM 9 | EC002006 |
| ECLASS 8.0 | 27189268 |
| Product description | DK Energy-Box, 482.6 mm (19"), Pull-out |
