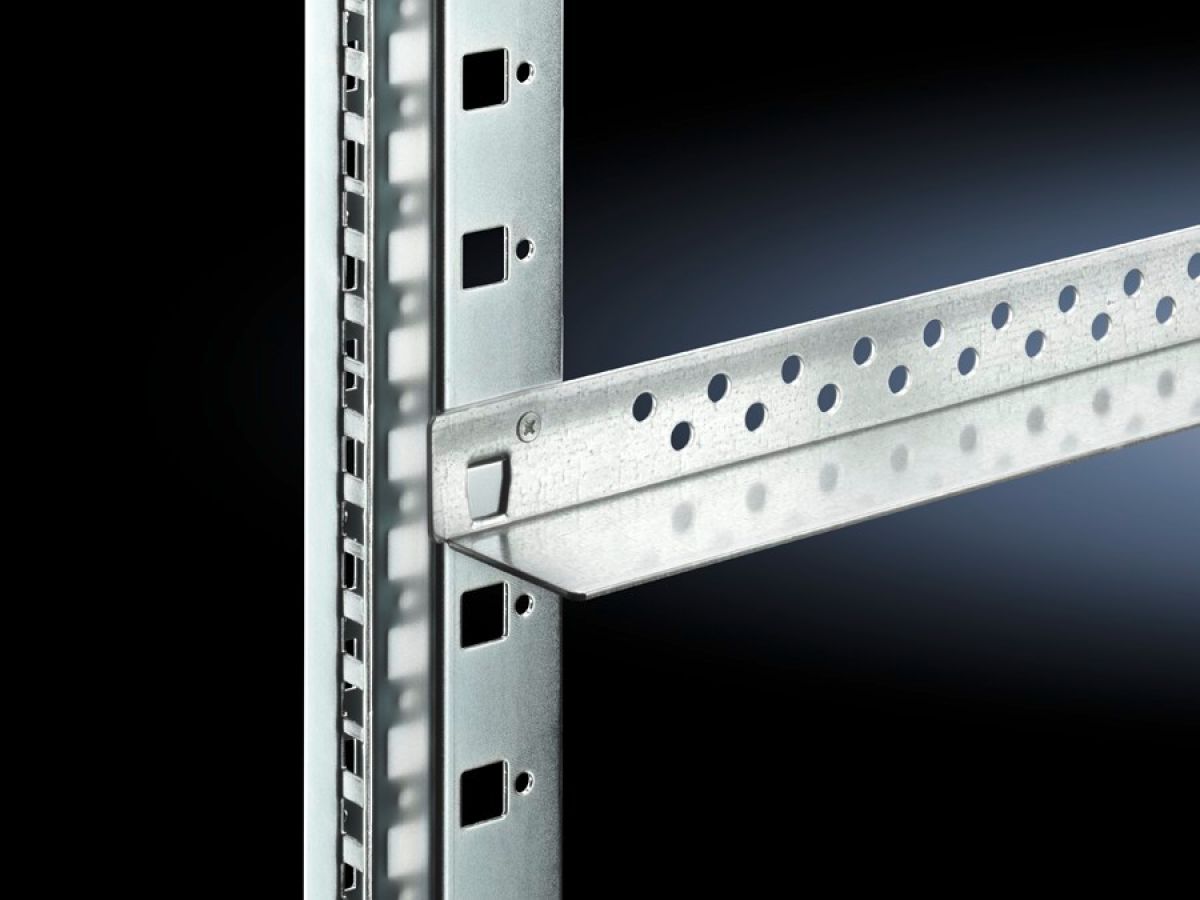

Rittal DK 7492.300, Slide rail, heavy-duty for TS network enclosures with two mounting levels
Rittal DK 7492.300, Slide rail, heavy-duty for TS network enclosures with two mounting levels
Regular price
€51,76
Regular price
Sale price
€51,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7492.300
For TS network enclosures with two 482.6 mm (19˝) mounting levels, to support heavy installed equipment.
| Article number: | DK 7492.300 |
| Design | For static installation between two 482.6 mm (19") mounting levels. |
| Product description | To support heavy installed equipment. The slide rails are simply located into the cranked mounting angles and secured with screws. The combined use with additional depth stays or, in case of 80 mm wide enclosures, with the additional fastening attachment counteracts possible bending of the mounting angles in case of unevenly distributed loads. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Distance between mounting levels | 298 mm |
| Load capacity | 80 kg, static load |
| Note | Not suitable in combination with 482.6 mm (19") mounting frame |
| Contact surface | Width: 55 mmDepth: 261 mm |
| Packs of | 2 pc(s). |
| Net weight | 0.588 kg |
| Gross weight | 0.694 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177221680 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
