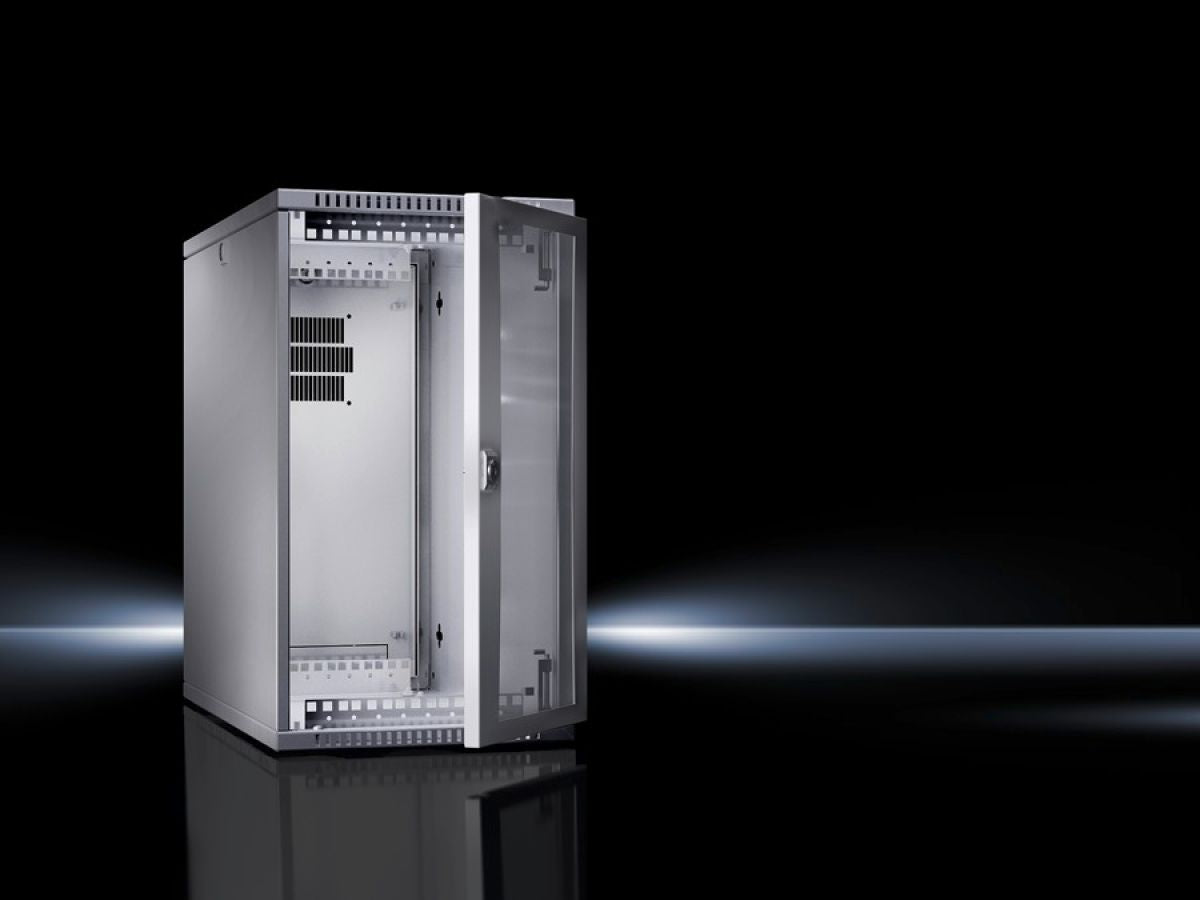

Rittal DK 7501.000, VerticalBox
Rittal DK 7501.000, VerticalBox
Regular price
€320,44
Regular price
Sale price
€320,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:DK 7501.000
Compact 482.6 mm (19") enclosure for small networks that may be used as a wall-mounted, under-desk or desktop enclosure.
| Article number: | DK 7501.000 |
| Product description | Compact 482.6 mm (19") enclosure for small networks. |
| Benefits | May be used as wall-mounted, under-desk or desktop enclosure |
| Material | Sheet steelViewing window: Single-pane safety glass, 3 mm |
| Surface finish | Powder-coated |
| Colour | RAL 7035 |
| Supply includes | Enclosure with glazed doorSide panels (1 x fixed, 1 x slot-in) with vent slotsKnockouts for cable entry via roof or baseSlot-in rear panel with knockouts for cable entry and fan accommodation482.6 mm (19") mounting level, 5 U, horizontal front and rear, depth-variable, distance between levels 434 – 489 mmSecurity lock 12321 on the door, side and rear panel4 plastic feet, self-adhesive |
| Units | 5 U |
| Dimensions | Width: 300 mmHeight: 540 mmDepth: 600 mm |
| Installation height for components | 5 U |
| Basic material | Sheet steel |
| Load capacity | 250 N |
| Max. load capacity (static) per enclosure to UL 2416 | 250 N |
| Packs of | 1 pc(s). |
| Net weight | 16.188 kg |
| Gross weight | 17.04 kg |
| PCF per pack (cradle-to-gate) | 64.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177625426 |
| ETIM 9 | EC002500 |
| ECLASS 8.0 | 27180208 |
| Product description | DK VerticalBox, compact 19" housing for small networks, with vent slots for passive ventilation, 5 U, WHD: 300x540x600 mm |
