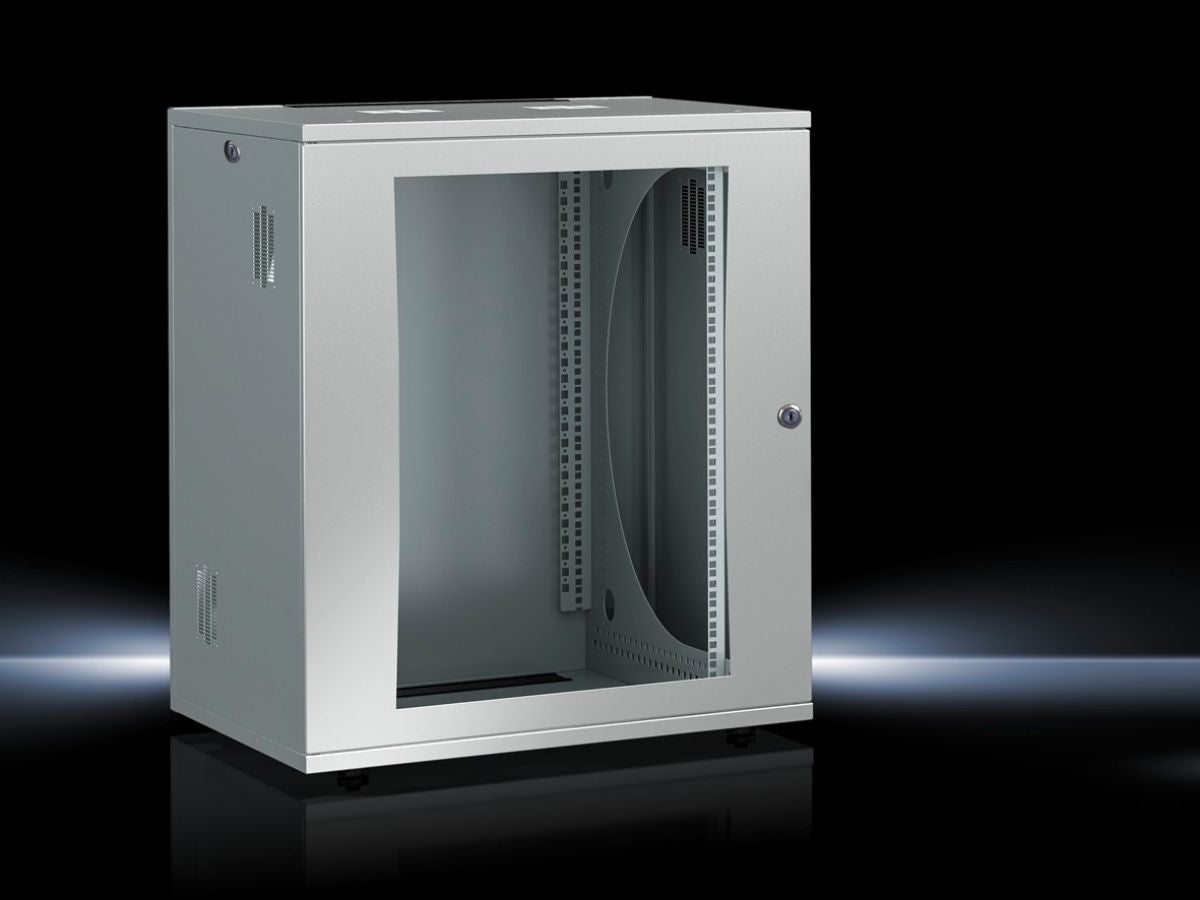

Rittal DK 7507.210, FlatBox
Rittal DK 7507.210, FlatBox
Regular price
€564,95
Regular price
Sale price
€564,95
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7507.210
Flat-packed enclosure. For optimum access and flexible use as a wall-mounted or floor-standing enclosure.
| Article number: | DK 7507.210 |
| Design | with 482.6 mm (19") mounting frame |
| Product description | For flexible use as a wall-mounted or floor-standing enclosure. |
| Benefits | Tool-free quick assembly |
| Material | Sheet steelViewing window: Single-pane safety glass, 3 mm |
| Surface finish | Powder-coated |
| Colour | RAL 7035 |
| Supply includes | Flat-packed enclosure1 wall section2 basic supports2 roof/base plates, with cut-outs for cable entry via brush strips2 side panels, lockable1 glazed door, lockable, security lock 3524 E, door hinge point selectableConnection components for tool-free, fast assemblyEarthing kit for system-compatible earthing of all enclosure parts482.6 mm (19") mounting frame |
| Units | 18 U |
| Dimensions | Width: 700 mmHeight: 892 mmDepth: 700 mm |
| Installation height for components | 18 U |
| Load capacity | max. 750 N |
| Note | Max. installation depth: Depth - 58 mm to rear panel |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 45.6 kg |
| Gross weight | 48.4 kg |
| PCF per pack (cradle-to-gate) | 182.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177551473 |
| ETIM 9 | EC002500 |
| ETIM 8 | EC002500 |
| ECLASS 8.0 | 27180208 |
| Product description | DK FlatBox, WHD: 700x892x700 mm, 18 U, with 482.6 mm (19") mounting frame |
