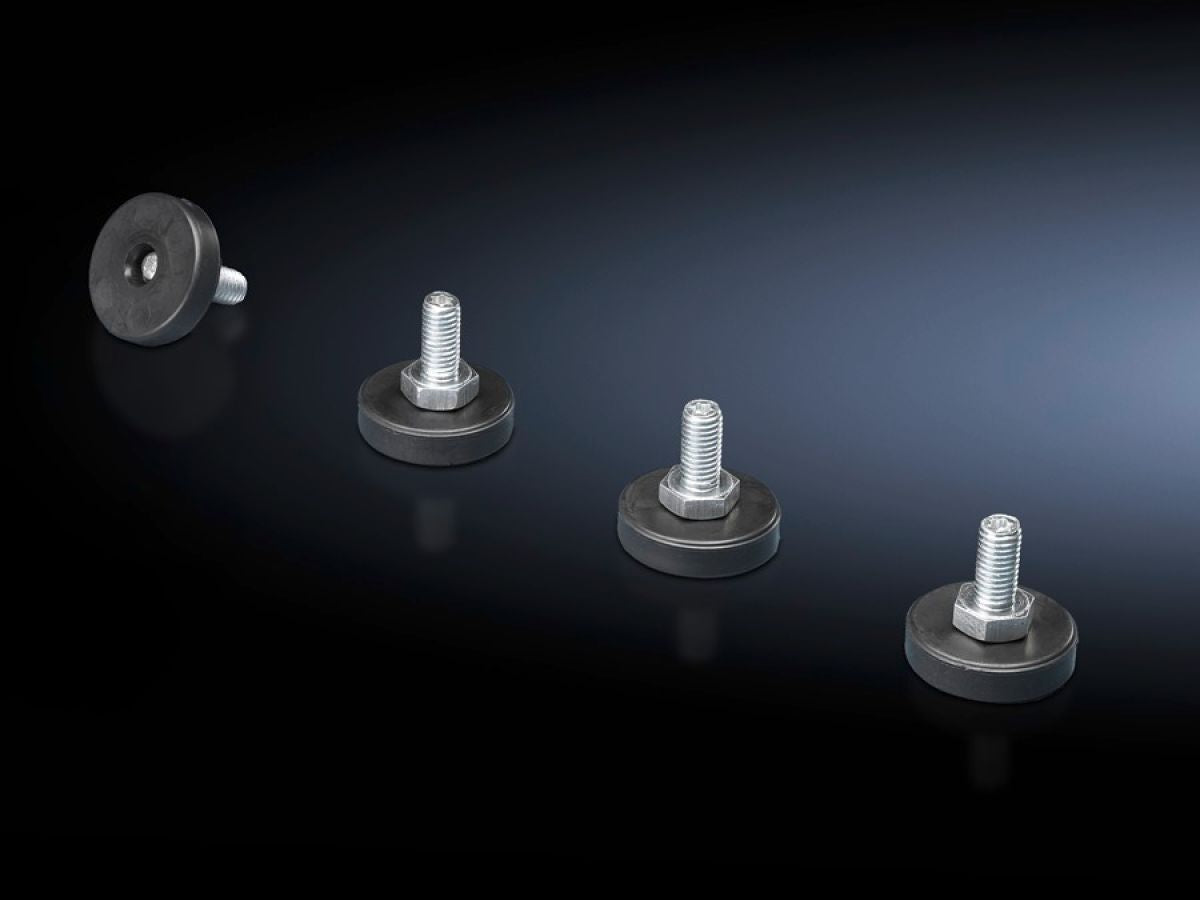

Rittal DK 7507.740, Levelling feet for FlatBox, M10 x 20 mm
Rittal DK 7507.740, Levelling feet for FlatBox, M10 x 20 mm
Regular price
€19,02
Regular price
Sale price
€19,02
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7507.740
Levelling feet for FlatBox
| Article number: | DK 7507.740 |
| Product description | For screw-fastening into the enclosure base. Width across flats 17, mounting thread multi-tooth 30. |
| Applications | Instrument case |
| Function principle | For screw-fastening into the enclosure base |
| Material | Foot: Plastic |
| Colour | Foot: RAL 9005 |
| Levelling low | 30 mm |
| Adjustment tool | Hex spanner SW 17 |
| Max. load capacity (static) per component | 5,500 N |
| Dimensions | Thread: M10Thread length: 20 mm |
| Levelling range | 10 ‐ 20 mm |
| Packs of | 4 pc(s). |
| Net weight | 0.128 kg |
| Gross weight | 0.131 kg |
| Customs tariff number | 73181900 |
| EAN | 4028177552678 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Levelling feet, For screw-fastening onto the enclosure base, M10x20 mm, For Flatbox, |
