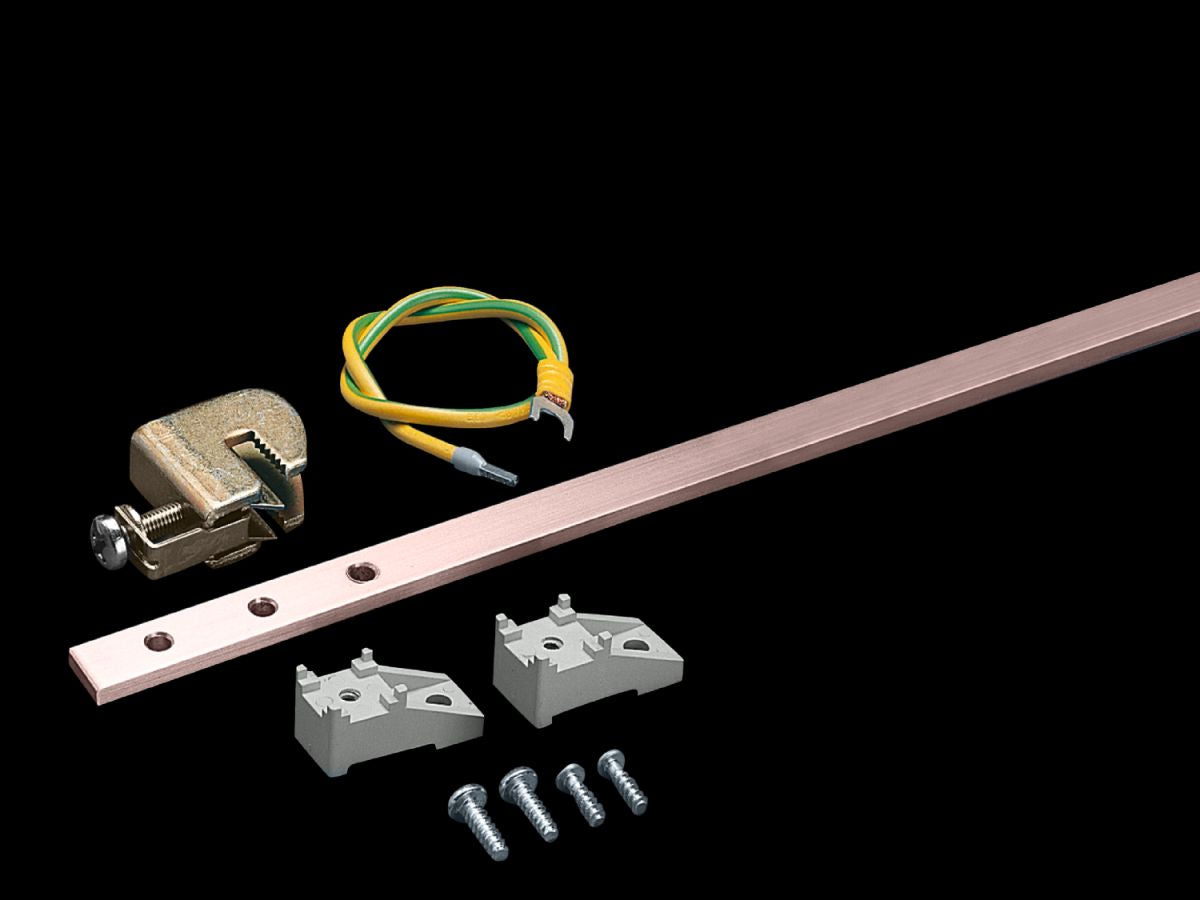

Rittal DK 7541.000, Earth rail, vertical for VX, VX IT
Rittal DK 7541.000, Earth rail, vertical for VX, VX IT
Regular price
€98,17
Regular price
Sale price
€98,17
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7541.000
The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels, the earth terminals are fully adjustable, current carrying capacity of rails approx. 200 A.
| Article number: | DK 7541.000 |
| Product description | Easily fitted to the 25 mm DIN pitch pattern of distributors or to the 482.6 mm (19") mounting angles. The supplied earth conductors facilitate star earthing of the cable clamp straps in the patch panels. The earth terminals are fully adjustable. Current carrying capacity of rail approx. 200 A. |
| Supply includes | Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mmnull15 earthing leads 6 mm², L = 500 mmAssembly parts |
| Dimensions | Length: 545 mm |
| To fit | Enclosure type: VXVX ITTSHeight: 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.272 kg |
| Gross weight | 1.472 kg |
| Customs tariff number | 74198090 |
| EAN | 4028177131798 |
| ETIM 9 | EC000329 |
| ECLASS 8.0 | 27400605 |
| Product description | DK earth rail, vertical, L: 545 mm, earthing leads: 15x 6 mm², L: 500 mm, conductor connection clamps: 16x 2.5-16 mm² |
