Rittal

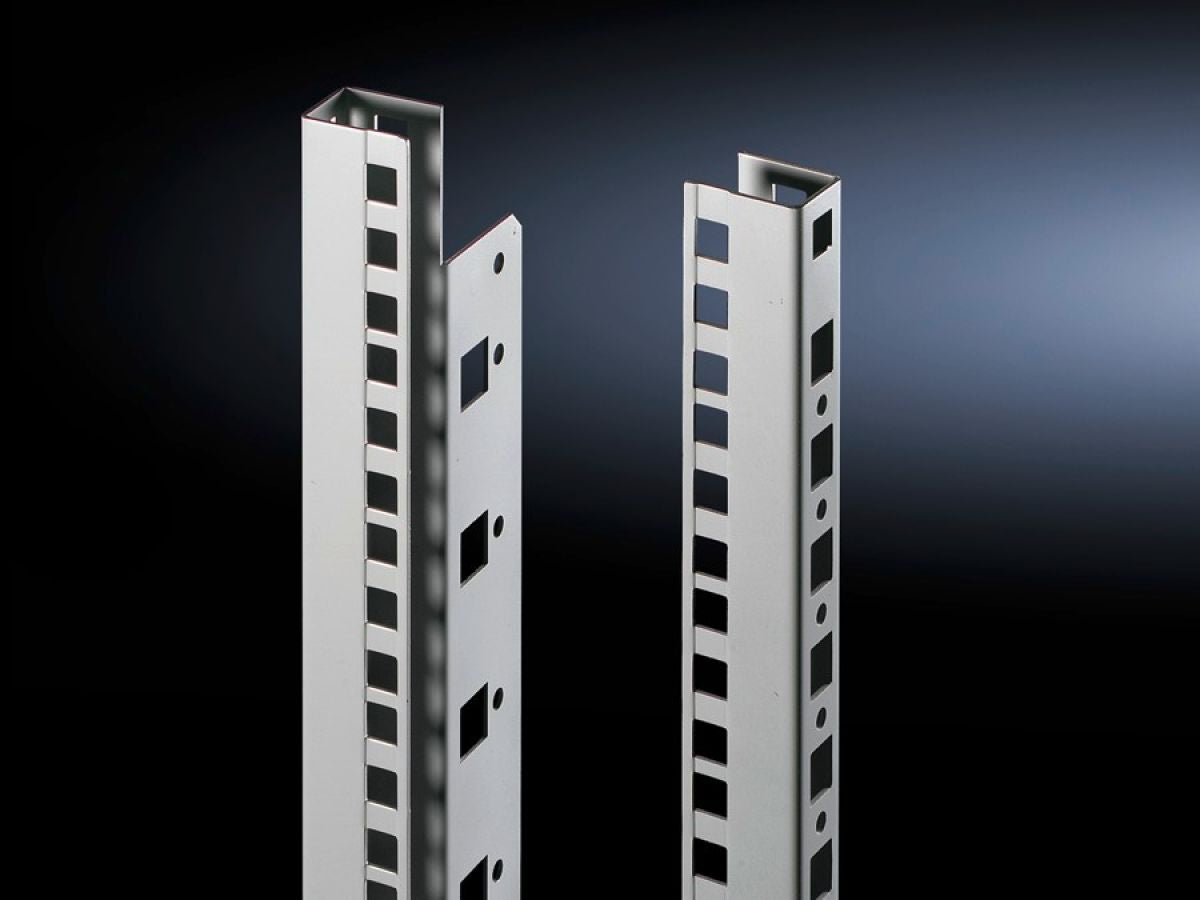

Rittal DK 7688.000, 482.6 mm (19") mounting angles for DK PS, CS New Basicgehäuse
Rittal DK 7688.000, 482.6 mm (19") mounting angles for DK PS, CS New Basicgehäuse
Regular price
€82,32
Regular price
Sale price
€82,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7688.000
For mounting 482.6 mm (19") components in Networking and Server Racks DK PS and in Outdoor enclosures CS New Basic
| Article number: | DK 7688.000 |
| Product description | For mounting 482.6 mm (19") components in DK PS network and server enclosures and in CS New Basic outdoor enclosures. The mounting angles are depth-adjustable on a 25 mm pitch pattern. A depth stay is required to attach the mounting angles. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Units | 24 U |
| Installation dimensions | Installation depth for components: 482.6 mmInstallation width for components: 19" |
| To fit | Enclosure type: CS basic enclosuresDK PSHeight: = 1,200 mm |
| Packs of | 2 pc(s). |
| Net weight | 2.494 kg |
| Gross weight | 2.693 kg |
| PCF per pack (cradle-to-gate) | 10.3 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177133341 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK 482.6 mm (19") mounting angles, 24 U, For H: 1200 mm |
