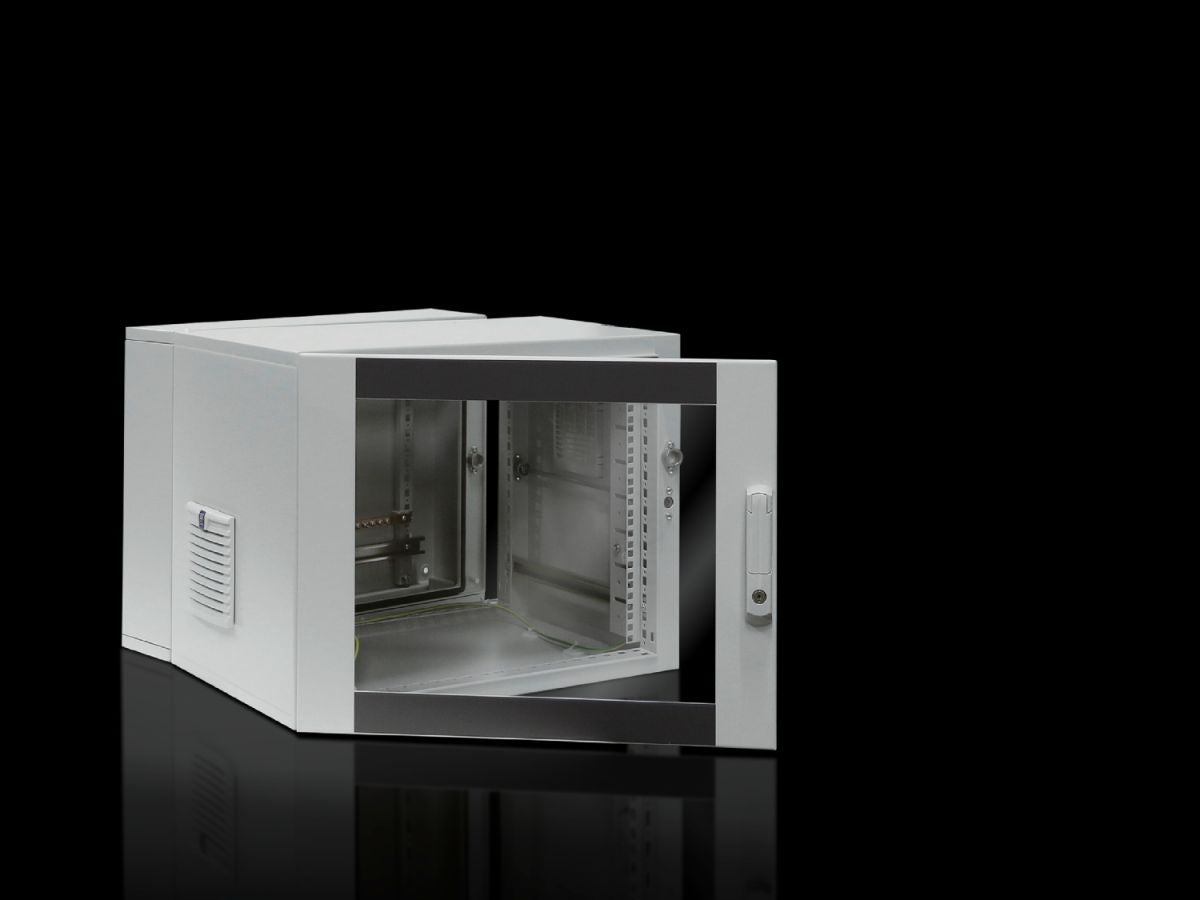

Rittal DK 7709.735, Wall-mounted enclosures EL, 3-part pre-configured with mounting angles, depth-variable
Rittal DK 7709.735, Wall-mounted enclosures EL, 3-part pre-configured with mounting angles, depth-variable
Regular price
€787,19
Regular price
Sale price
€787,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.01.2026
Couldn't load pickup availability
SKU: SKU:DK 7709.735
Wall-mounted enclosure 3-part, pre-configured with: Solid gland plate, top, with brush strip at the bottom, mounting rails, C rails, outlet filter, earth rail, wall-mounting bracket
| Article number: | DK 7709.735 |
| Design | Wall-mounted enclosures ITpre-configured with mounting angles, depth-variable |
| Product description | Wall-mounted enclosure with optimum accessibility due to hinged part. |
| Material | Wall and hinged part: Sheet steel, 1.5 mmViewing window: Single-pane safety glass, 3 mm |
| Surface finish | Powder-coated |
| General colour | RAL 7035 |
| Colour | Wall and hinged part: RAL 7035Glazed door: RAL 7035/7015 (slate grey) |
| Supply includes | Wall section with solid gland plate at the top and brush strip at the bottom, two vertical mounting rails and C rail, horizontal, for cable clampingHinged part with 25 mm pitch pattern of holes in the front and rear frame, two 482.6 mm (19") mounting angles at the front, infinitely depth-variable, and side outlet filters on the left and rightEarth rail with star earthingDesigner glazed door1 double-kit key no. 5Wall mounting bracket, 10 mmMini-comfort handle for lock insertsSecurity lock 3524 E |
| Units | 9 U |
| Dimensions | Width: 600 mmHeight: 478 mmDepth: 573 mm |
| Installation depth | 520 mm |
| Clearances | Clearance width: 502 mmClearance height: 415 mm |
| Depth hinged part | 416 mm |
| Depth of wall section | 135 mm |
| IK Code | IK08 |
| Load capacity of hinged part (static) | 450 N |
| Basic material | Sheet steel |
| Protection category to IEC 60 529 | IP 54 in conjunction with solid gland plate top and bottom |
| Packs of | 1 pc(s). |
| Net weight | 33.25 kg |
| Gross weight | 35 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177324237 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27142408 |
| Product description | DK Wall-mounted enclosure, 3-part, WxHxD: 600x478x573 mm, 9 U, pre-assembled, IP 54 with solid gland plate top and bottom |
