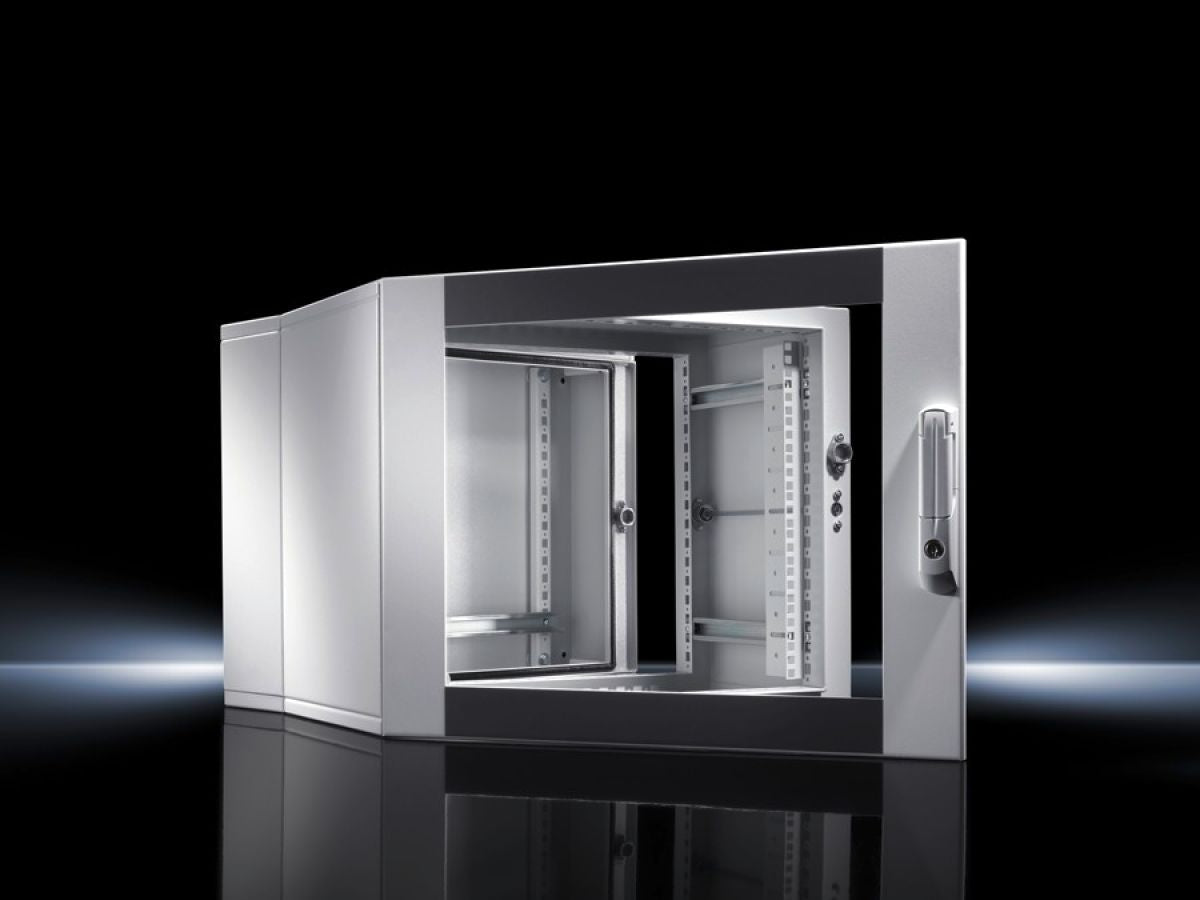

Rittal DK 7715.135, Wall-mounted enclosures EL, 3-part with punched rails and mounting angles, depth-variable

Rittal DK 7715.135, Wall-mounted enclosures EL, 3-part with punched rails and mounting angles, depth-variable

€730,96
€730,96
Sale Sold out
Taxes included.

📦 Ready for dispatch: 06.01.2026

SKU: DK 7715.135

Wall-mounted enclosure 3-part, pre-configured with: Solid gland plate, top and bottom, punched rails, C rails, wall mounting bracket. Protection category IP 55.

Article number: DK 7715.135
Design Wall-mounted enclosures ITwith punched rails and mounting angles, depth-variable
Product description Wall-mounted enclosure with optimum accessibility due to hinged part.
Material Wall and hinged part: Sheet steel, 1.5 mmViewing window: Single-pane safety glass, 3 mm
Surface finish Powder-coated
General colour RAL 7035
Colour Wall and hinged part: RAL 7035Glazed door: RAL 7035/7015 (slate grey)
Supply includes Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clampingHinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the front, infinitely depth-variable4 wall mounting brackets 10 mmDesigner glazed door1 double-kit key no. 5Mini-comfort handle for lock insertsSecurity lock 3524 E
Units 15 U
Dimensions Width: 600 mmHeight: 746 mmDepth: 473 mm
Installation depth 420 mm
Clearances Clearance width: 502 mmClearance height: 683 mm
Depth hinged part 316 mm
Depth of wall section 135 mm
IK Code IK08
Load capacity of hinged part (static) 750 N
Basic material Sheet steel
Protection category to IEC 60 529 IP 55
Packs of 1 pc(s).
Net weight 38.95 kg
Gross weight 41 kg
Customs tariff number 94032080
EAN 4028177324206
ETIM 9 EC000261
ECLASS 8.0 27142408
Product description DK Wall-mounted enclosures, 3-part, WHD: 600x746x473 mm, 15 U, With punched rails, and mounting angles, depth-variable
