Rittal

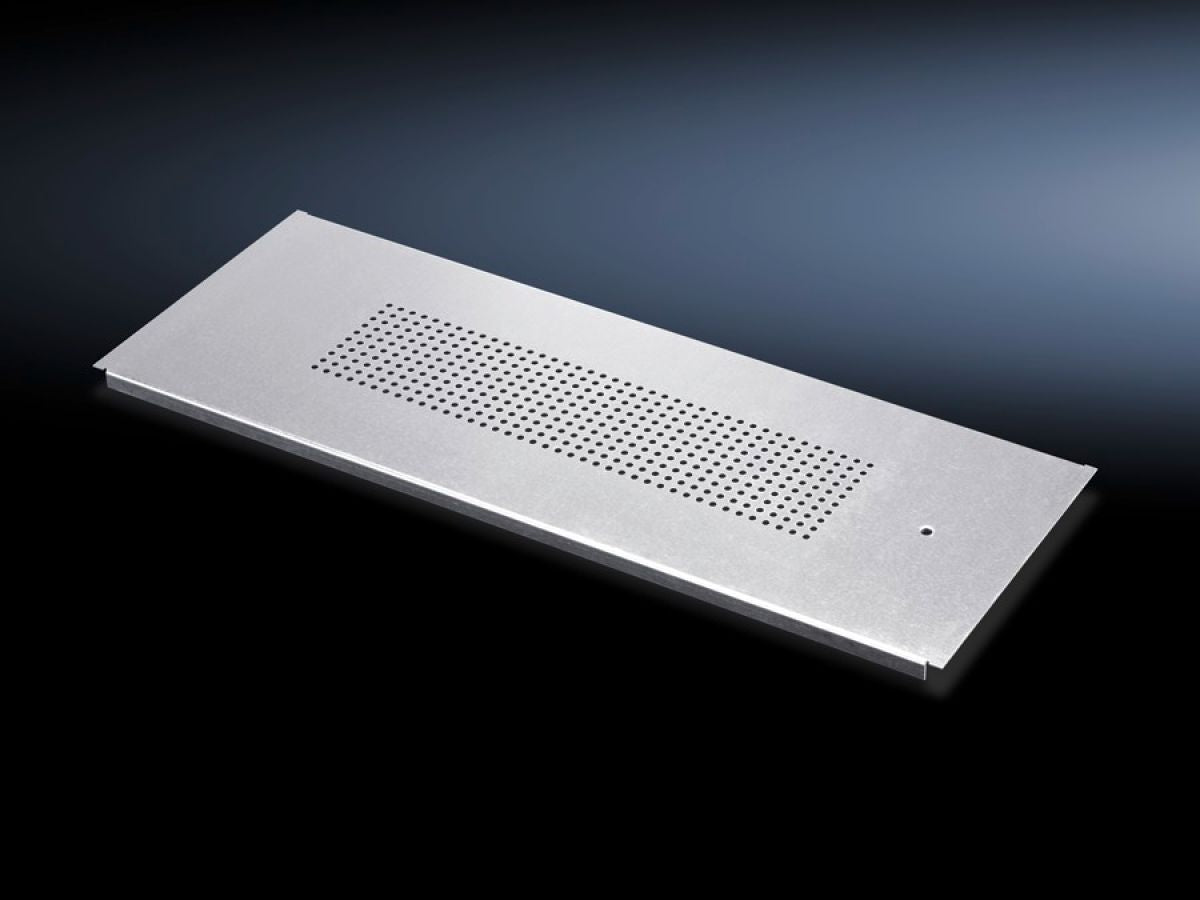

Rittal DK 7825.380, Gland plate modules, vented for TS IT, TS, SE, TX CableNet
Rittal DK 7825.380, Gland plate modules, vented for TS IT, TS, SE, TX CableNet
Regular price
€55,33
Regular price
Sale price
€55,33
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7825.380
Gland plate modules, vented, for TS, TS IT, SE for use in the base frame of the network enclosure. Used in exchange for an existing gland plate of the same depth.
| Article number: | DK 7825.380 |
| Product description | Large perforated section for passive enclosure ventilation. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Filter mat and nylon tape |
| Note | Several gland module plates need to be combined to close off the base completely in the TS-IT |
| Dimensions | Depth: 237.5 mm |
| To fit | Enclosure type: TSTS ITSETX CableNetWidth: 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.95 kg |
| Gross weight | 2.26 kg |
| PCF per pack (cradle-to-gate) | 8.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177233348 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Gland plate module, vented, depth: 237,5 mm, for enclosure width: 800 mm, for TS, TS IT, SE, TX CableNet, sheet steel, zinc-plated |
