Rittal DK 7825.381, Gland plate modules for cable entry for TS IT, TS, SE, TX CableNet
Rittal DK 7825.381, Gland plate modules for cable entry for TS IT, TS, SE, TX CableNet
Regular price
€42,76
Regular price
Sale price
€42,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7825.381

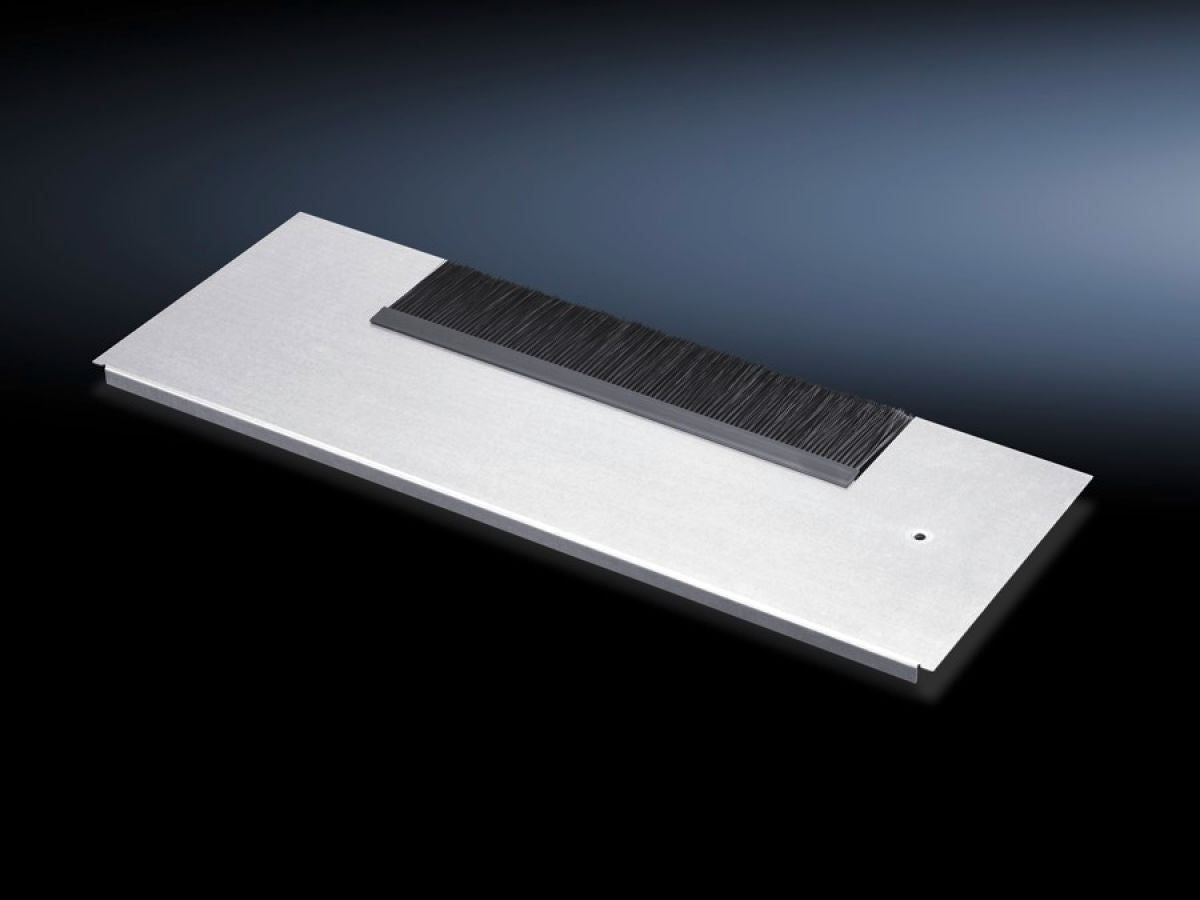

Gland plate modules for cable entry, for TS, TS-IT, SE for use in the base frame of the network enclosure. Used in exchange for an existing gland plate of the same depth.
| Article number: | DK 7825.381 |
| Product description | For simple, sealed cable entry. |
| Material | Module plate: Sheet steelBrush strip: Plastic, UL 94 HB, halogen-free |
| Surface finish | Zinc-plated |
| Note | Several gland module plates need to be combined to close off the base completely in the TS-IT |
| Dimensions | Depth: 237.5 mm |
| To fit | Enclosure type: TS ITTSVX SETX CableNetWidth: 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.75 kg |
| Gross weight | 1.78 kg |
| PCF per pack (cradle-to-gate) | 7.4 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177233355 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Gland plate module, for cable entry with brush strip, depth: 237.5 mm, for enclosure width: 800 mm, for TS, TS IT, SE, TX CableNet, sheet steel, zinc-plated |
