Rittal
Rittal DK 7825.388, Gland plate modules for cable entry for TS, TS IT, VX SE
Rittal DK 7825.388, Gland plate modules for cable entry for TS, TS IT, VX SE
Regular price
€137,72
Regular price
Sale price
€137,72
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7825.388

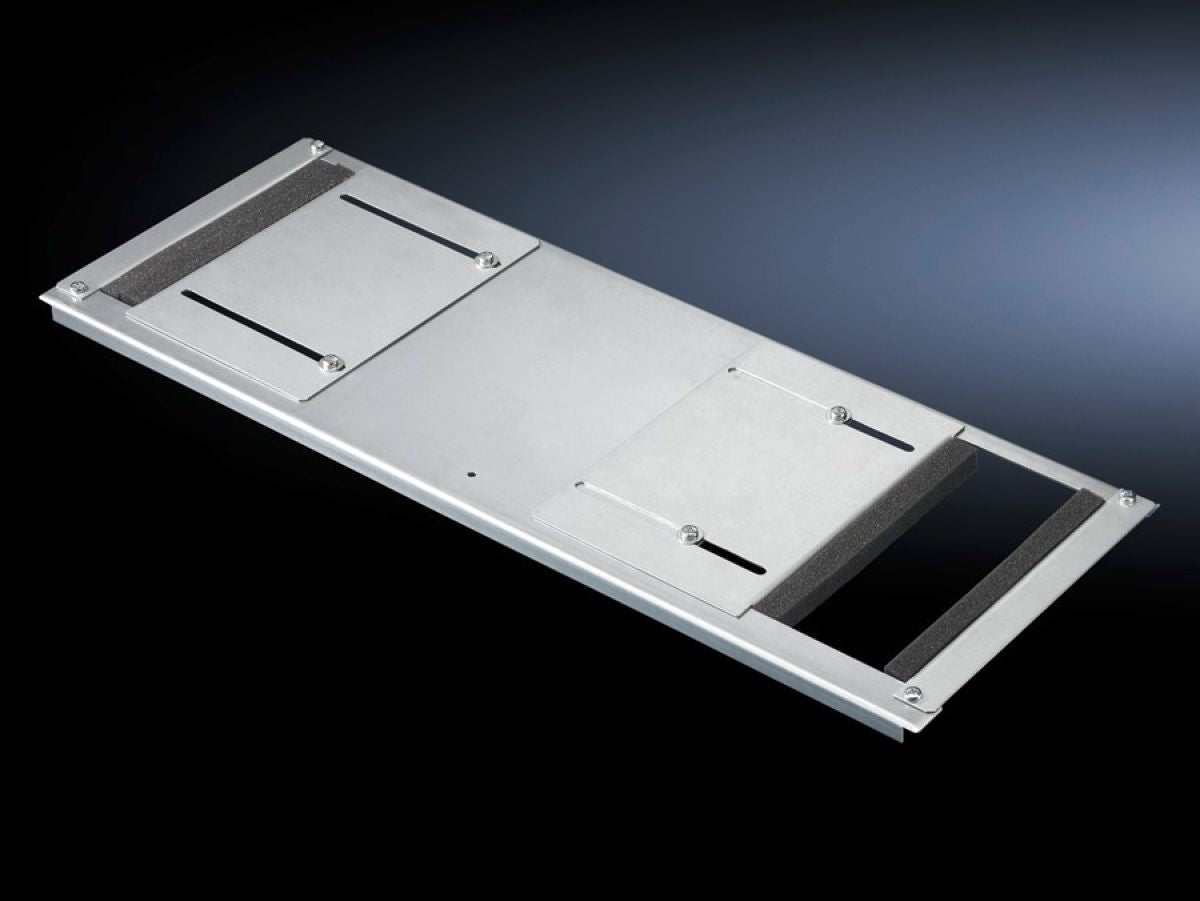

Gland plate modules for cable entry for DK-TS, for use in the base frame of the network enclosure. Used in exchange for an existing gland plate of the same depth.
| Article number: | DK 7825.388 |
| Design | Version for cable entry with rubber cable clamp strip at the sides: |
| Product description | With adjustable openings on both sides and rubber cable clamp strip. The two-piece design even allows retrospective fitting of the base module with the cables already installed. |
| Material | Sheet steelSeal: Polyurethane foam, UL 94-HF1 |
| Surface finish | Zinc-plated |
| Supply includes | Assembly partsIncluding clips |
| Note | Several gland module plates need to be combined to close off the base completely in the TS-IT |
| Dimensions | Depth: 237.5 mm |
| To fit | Enclosure type: TS ITWidth: 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 2.42 kg |
| Gross weight | 2.62 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177597679 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Gland plate module, For W: 800 mm, For side cable entry |
