Rittal

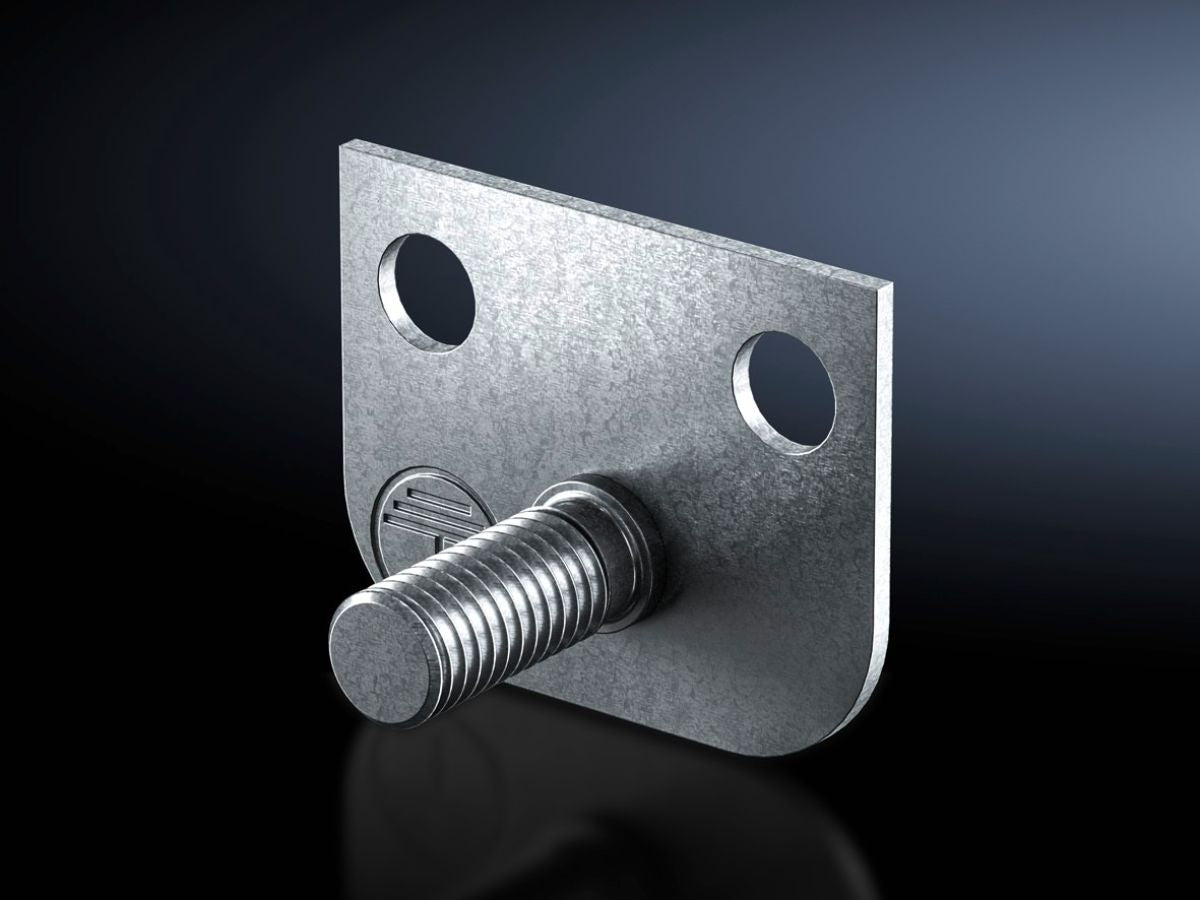

Rittal DK 7829.200, Central earthing point
Rittal DK 7829.200, Central earthing point
Regular price
€18,19
Regular price
Sale price
€18,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7829.200
For connecting earth straps and earthing braids to the vertical and horizontal enclosure profile.
| Article number: | DK 7829.200 |
| Product description | For connecting earth straps, earthing braids to the vertical and horizontal enclosure section. The connection bracket is connected to the enclosure frame with 2 screws and is securely contacted. Earth connection is carried out via the threaded bolt M8 x 20 mm. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | 1 connection bracket2 assembly screws1 serrated washer1 nut M81 contact washer M81 washer |
| Packs of | 1 pc(s). |
| Net weight | 0.037 kg |
| Gross weight | 0.038 kg |
| PCF per pack (cradle-to-gate) | 0.1 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177231979 |
| ETIM 9 | EC001503 |
| ECLASS 8.0 | 27149219 |
| Product description | DK Central earthing point |
