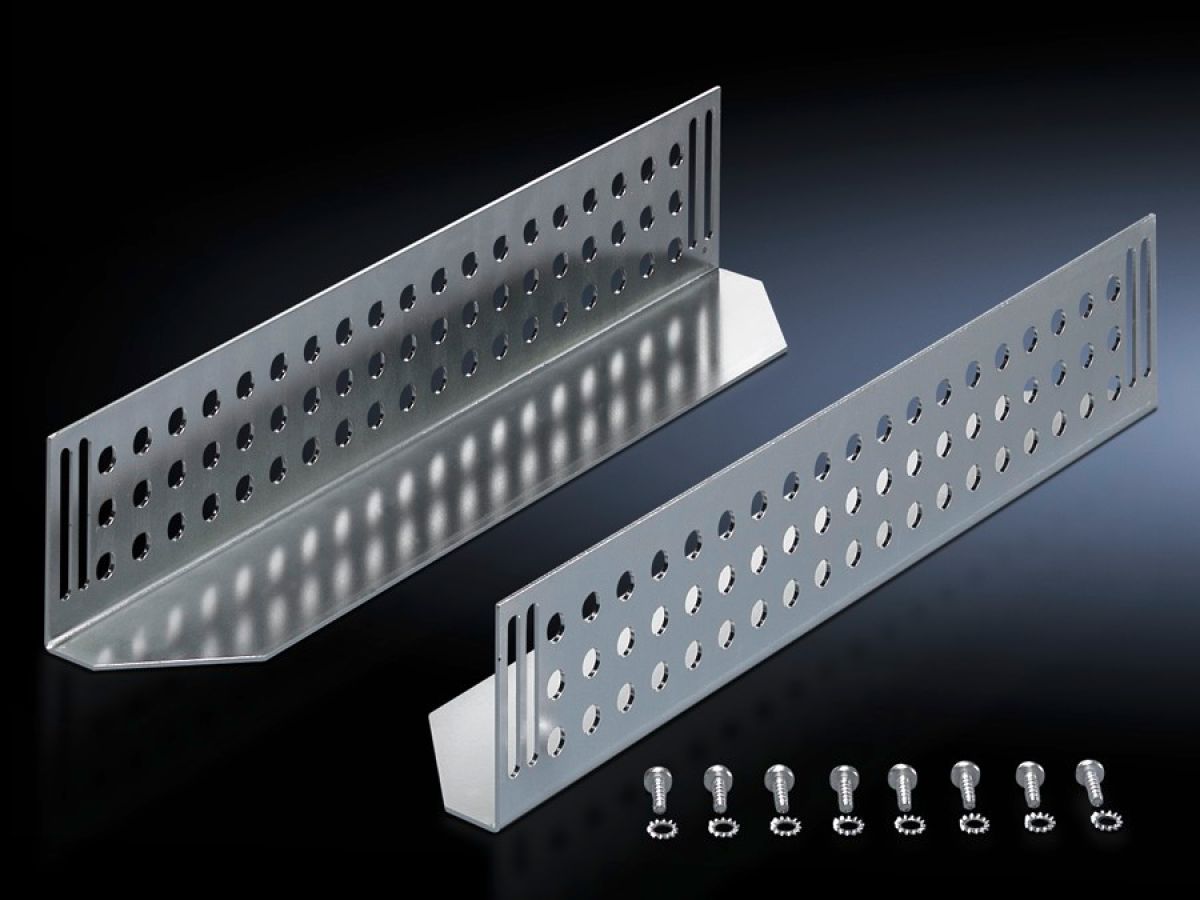

Rittal DK 7963.410, Slide rail for TE
Rittal DK 7963.410, Slide rail for TE
Regular price
€29,77
Regular price
Sale price
€29,77
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7963.410
For mounting between a front and a rear pair of mounting angles, to support heavy 482.6 mm (19˝) components.
| Article number: | DK 7963.410 |
| Product description | For mounting between the front and rear 482.6 mm (19") mounting levels. The slide rails can be used to support heavy 482.6 mm (19") components. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Distance between mounting levels | 495 mm |
| Load capacity static | 800 N |
| Contact surface | Width: 85 mmDepth: 424 mm |
| To fit | Enclosure type: TE 8000EL |
| Installation dimensions | Installation depth for components: 482.6 mmInstallation width for components: 19" |
| Packs of | 2 pc(s). |
| Net weight | 2.08 kg |
| Gross weight | 2.28 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177443945 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189261 |
| Product description | DK Slide rail, support surface WxD: 85x424 mm, 80 kg, static, distance between levels:: 495 mm, For TE |
