Rittal

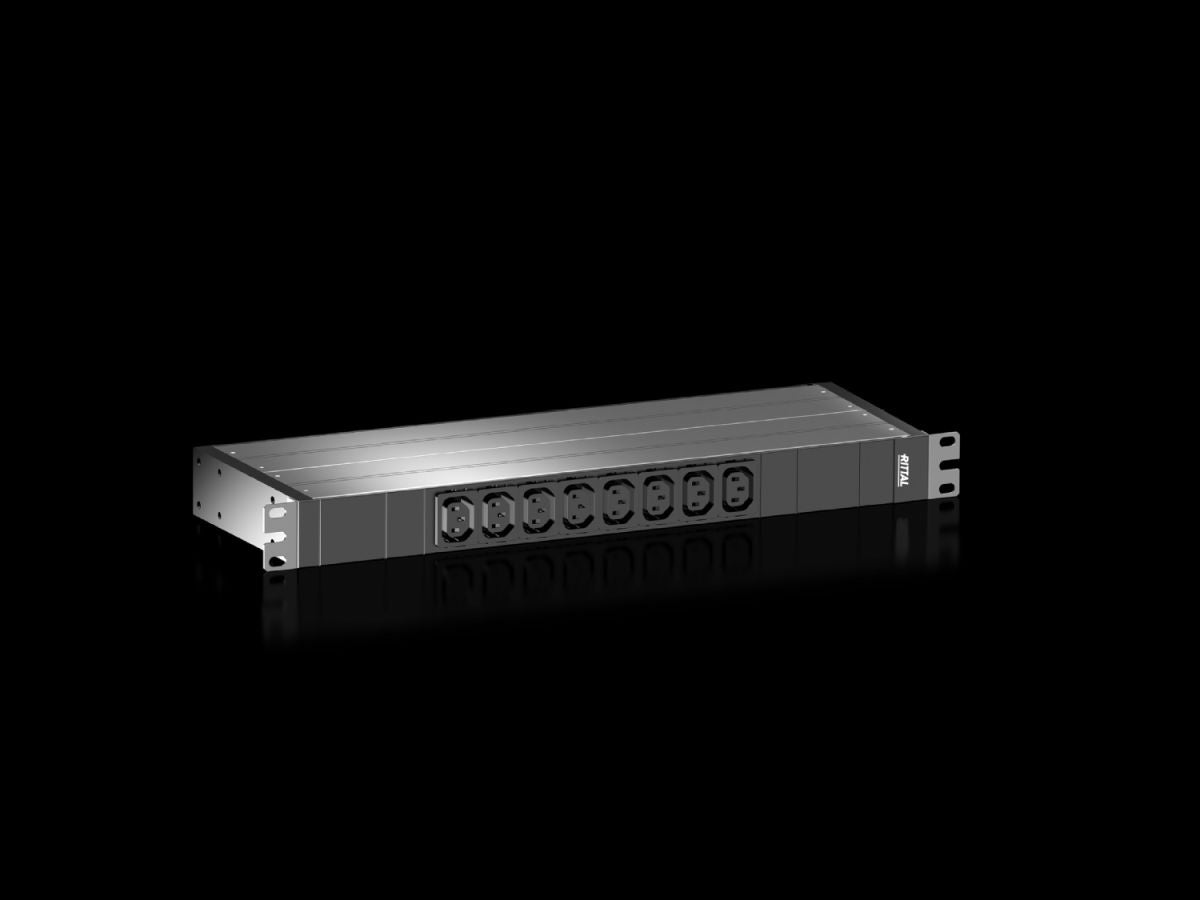

Rittal DK 7979.102, PDU basic
Rittal DK 7979.102, PDU basic
Regular price
€144,15
Regular price
Sale price
€144,15
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7979.102
High-end IT rack power distribution: Robust PDU with compact basic power distribution for the IT environment.
| Article number: | DK 7979.102 |
| Design | 482.6 mm (19") version |
| Product description | Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible. |
| Benefits | For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools |
| Material | Extruded aluminium section, anodisedSlots: Plastic |
| Supply includes | Connector lock for IEC C14 and C20 connectorsAssembly partsNo connection cable, to be provided by the customer. |
| Options | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosureOther enclosure colours are available |
| Dimensions | Height: 44 mmDepth: 144 mmLength: 450 mm |
| No. of sockets and type | 8 x C13 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 16 A |
| Power consumption | 3.7 kW |
| Infeeds | Qty.: 1Phases per infeed: 1~ |
| Type of electrical connection | IEC C20 |
| Directives | EMC Directive 2014/30/EU |
| Standards | EN 62368-1 |
| Operating temperature range | 5 °C...50 °C |
| Ambient humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| To fit | Enclosure type: VX IT enclosure frame: ≥ 800 mmEnclosure type: VX IT 19" mounting angles: ≥ 800 mmEnclosure type: TX CableNet: ≥ 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 1.8 kg |
| Gross weight | 2 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177947351 |
| ETIM 9 | EC002762 |
| ETIM 8 | EC002762 |
| ECLASS 8.0 | 27142604 |
| Product description | DK PDU basic, compact basic power distribution, WHD: 44x450x144, IEC 60320: 8 x C13, 230 V, 1~, 16 A |
