Rittal

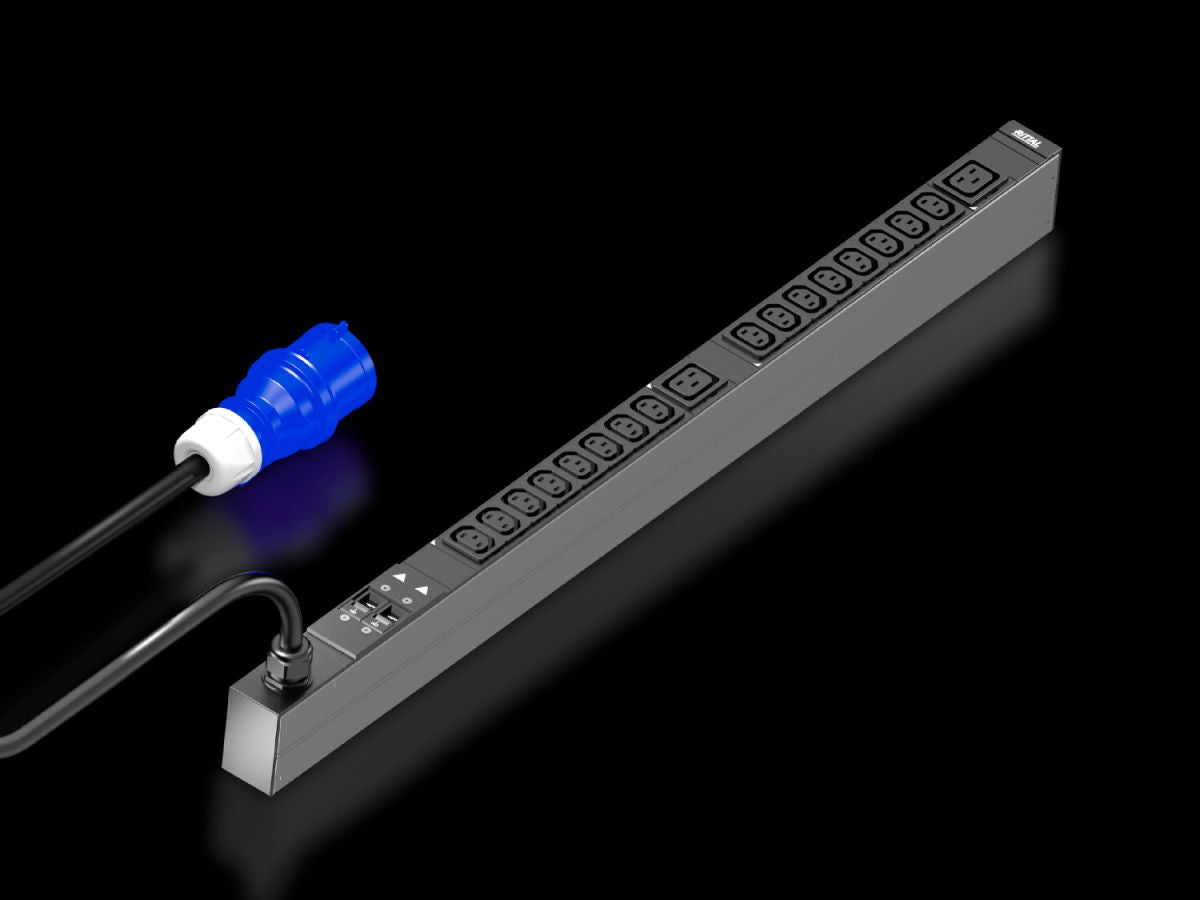

Rittal DK 7979.112, PDU basic
Rittal DK 7979.112, PDU basic
Regular price
€292,95
Regular price
Sale price
€292,95
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7979.112
High-end IT rack power distribution: Robust PDU with compact basic power distribution for the IT environment.
| Article number: | DK 7979.112 |
| Product description | Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible. |
| Benefits | For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools |
| Material | Extruded aluminium section, anodisedSlots: Plastic |
| Supply includes | Connector lock for IEC C14 and C20 connectorsAssembly parts |
| Options | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosureOther enclosure colours are available |
| Dimensions | Width: 44 mmDepth: 70 mmLength: 845 mm |
| No. of sockets and type | 16 x C13 / 2 x C19 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 32 A |
| Power consumption | 7.4 kW |
| Infeeds | Qty.: 1Phases per infeed: 1~ |
| Length of connection cable | 3 m |
| Type of electrical connection | CEE |
| Directives | EMC Directive 2014/30/EU |
| Standards | EN 62368-1 |
| Operating temperature range | 5 °C...50 °C |
| Ambient humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| To fit | Enclosure type: VX IT enclosure frame: ≥ 1,200 mmEnclosure type: VX IT 19" mounting angles: ≥ 1,200 mmEnclosure type: TX CableNet: ≥ 1,200 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.52 kg |
| Gross weight | 3.52 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177947412 |
| ETIM 9 | EC002762 |
| ETIM 8 | EC002762 |
| ECLASS 8.0 | 27142604 |
| Product description | PDU basic 32A/1P CEE 16xC13+2xC19, DK PDU basic, Compact basic power distributor, WHD: 44x845x70, IEC 60320: 16 x C13, 2 x C19 |
