Rittal

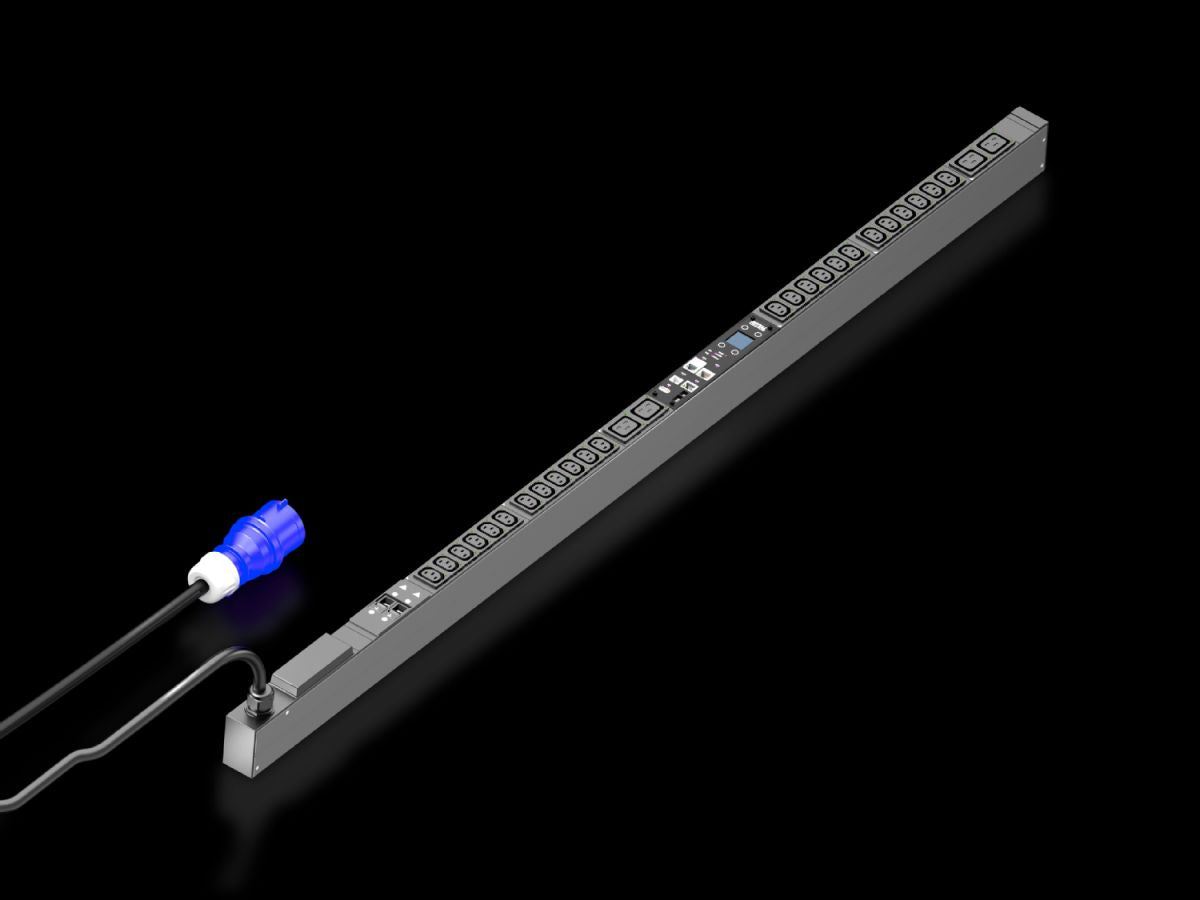

Rittal DK 7979.256, PDU metered
Rittal DK 7979.256, PDU metered
Regular price
€1.282,52
Regular price
Sale price
€1.282,52
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7979.256
High-end IT rack power distribution: Smart PDU with energy measurement per phase, i.e. output requirement of an entire IT rack and additionally differential current measurement per fuse.
| Article number: | DK 7979.256 |
| Design | Incl. RCM |
| Product description | High-end power distribution in a compact design for IT network and server racks. With power measurement at the infeed or per phase. |
| Benefits | Metered PDU with integral differential current measurement (RCM / type B). The differential current is measured for each 16 A fuse. |
| Technical specifications | Display/controller unit in the PDU enclosure rotatable through 180° and replaceable |
| Material | Aluminium section, black anodisedSlots: Plastic |
| Supply includes | Assembly parts |
| Options | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosureMonitoring of the optionally available overvoltage protectionCMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensorsOther enclosure colours are available |
| Measurement functions, description | Differential current measurement (type B – AC/DC) per fuse, measuring range 0 mA– 100 mA |
| Dimensions | Width: 44 mmDepth: 70 mmLength: 1,695 mm |
| No. of sockets and type | 24 x C13 / 4 x C19 |
| Rated operating voltage | 230 V AC |
| Rated current (max.) | 32 A |
| Power consumption | 7.4 kW |
| Infeeds | Qty.: 1Phases per infeed: 1~ |
| Length of connection cable | 3 m |
| Type of electrical connection | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging |
| Number RJ45 ports for sensor units max | 2 |
| Directives | EMC Directive 2014/30/EU |
| Standards | EN 62368-1 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP |
| Operating temperature range | 5 °C...50 °C |
| Ambient humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| To fit | Enclosure type: VX IT enclosure frame: ≥ 1,800 mmEnclosure type: VX IT 19" mounting angles: ≥ 1,800 mm |
| Packs of | 1 pc(s). |
| Net weight | 5.5 kg |
| Gross weight | 5.7 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177967946 |
| ETIM 9 | EC002762 |
| ETIM 8 | EC002762 |
| ECLASS 8.0 | 27142604 |
| Product description | DK PDU metered RCM, compact basic power distribution incl. energy measurement per phase, with network interface and display, WLD: 44x1695x70 mm, IEC 60 320: 24xC13 und 4xC19, differential current measurement (Type B – AC/DC) per fuse, measuring range 0 mA – 100 mA |
