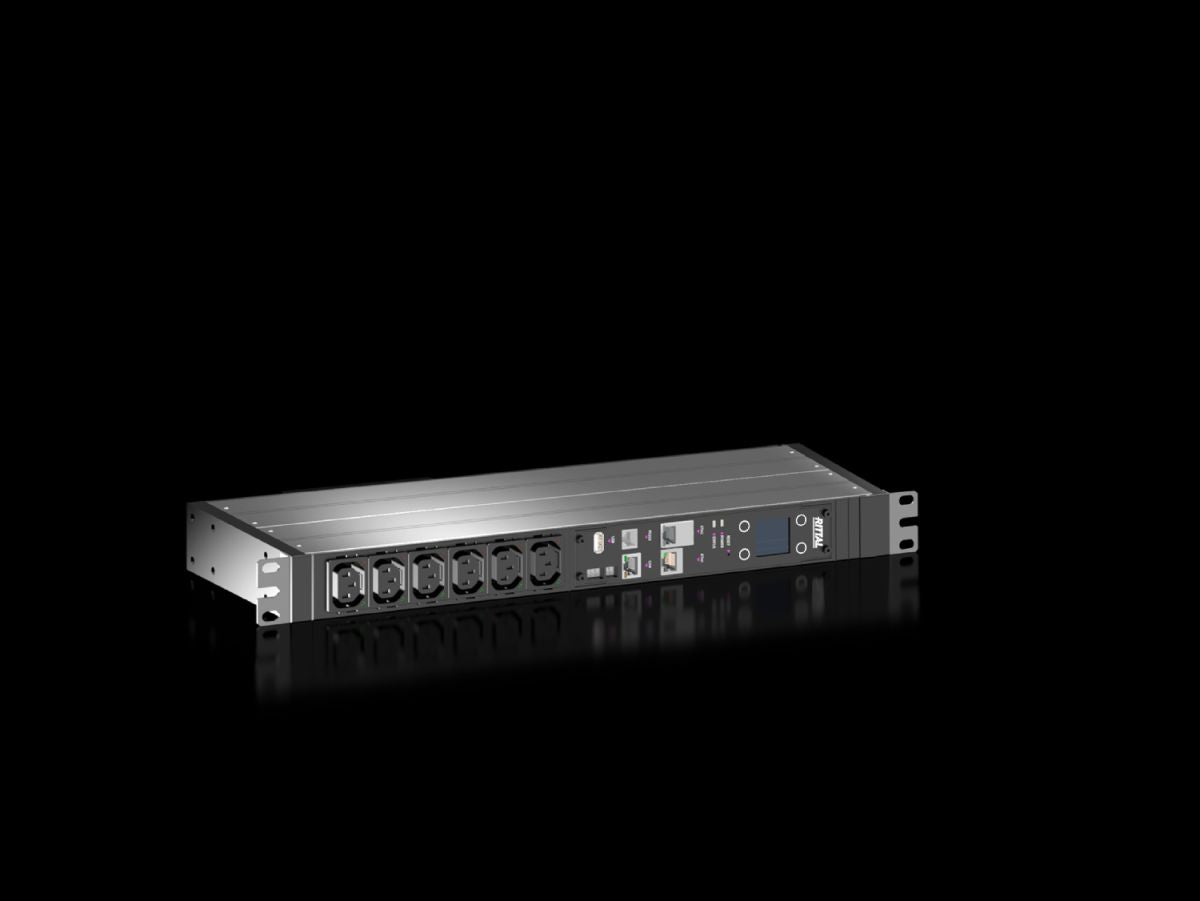

High-end IT rack power distribution: Smart PDU with measurement function per phase and individually switchable output slots.
| Article number: | DK 7979.302 |
| Design | 482.6 mm (19") version |
| Product description | High-end power distribution in a compact design for IT network and server racks. With switching function and power measurement at the infeed or per phase. |
| Benefits | For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools |
| Technical specifications | Display/controller unit in the PDU enclosure rotatable through 180° and replaceable |
| Material | Aluminium section, black anodisedSlots: Plastic |
| Supply includes | Assembly partsNo connection cable, to be provided by the customer. |
| Options | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors |
| Measurement functions, description | Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs |
| Dimensions | Height: 44 mmDepth: 144 mmLength: 450 mm |
| No. of sockets and type | 6 x C13 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 16 A |
| Power consumption | 3.7 kW |
| Infeeds | Phases per infeed: 1~ |
| Type of electrical connection | IEC C20 |
| Interfaces | Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE) |
| Directives | EMC Directive 2014/30/EU |
| Standards | EN 62368-1 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP |
| Operating temperature range | 5 °C...50 °C |
| Ambient humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| To fit | Enclosure type: VX IT enclosure frame: ≥ 800 mmEnclosure type: VX IT 19" mounting angles: ≥ 800 mm |
| Packs of | 1 pc(s). |
| Net weight | 2 kg |
| Gross weight | 2.5 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177947825 |
| ETIM 9 | EC002762 |
| ETIM 8 | EC002762 |
| ECLASS 8.0 | 27142604 |
| Product description | DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WHD: 450x44x144mm, IEC 60 320: 6x C13 |
