Rittal

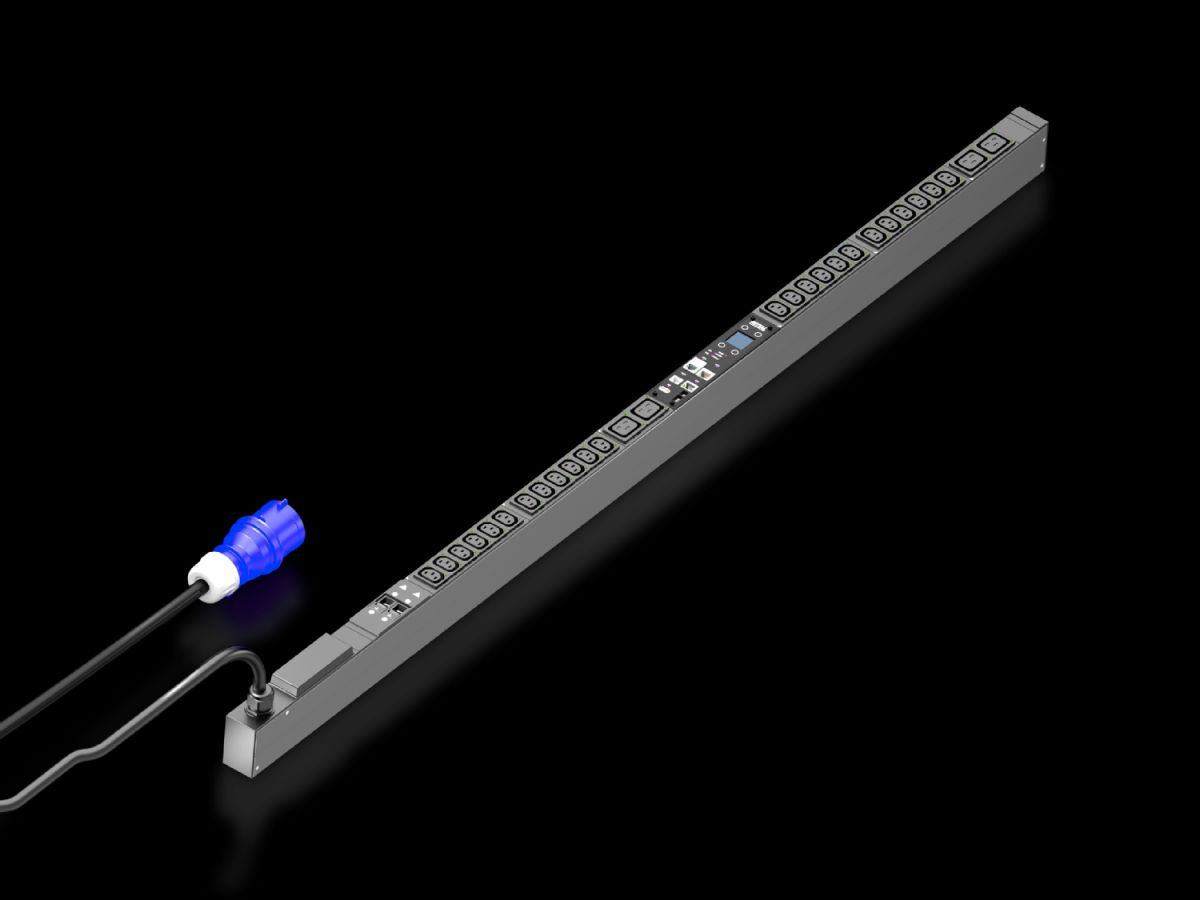

Rittal DK 7979.516, PDU metered plus
Rittal DK 7979.516, PDU metered plus
Regular price
€1.749,75
Regular price
Sale price
€1.749,75
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.01.2026
Couldn't load pickup availability
SKU: SKU:DK 7979.516
High-end IT rack power distribution: Smart PDU with energy measurement per slot, i.e. output requirement for each individual consumer.
| Article number: | DK 7979.516 |
| Product description | High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot. |
| Benefits | For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools |
| Technical specifications | Display/controller unit in the PDU enclosure rotatable through 180° and replaceable |
| Material | Aluminium section, black anodisedSlots: Plastic |
| Supply includes | Assembly parts |
| Options | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosureResidual current measurement (type B) per infeed/phase/fuseMonitoring of the optionally available overvoltage protectionCMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensorsOther enclosure colours are available |
| Measurement functions, description | Measurement per phase or infeed |
| Dimensions | Width: 44 mmDepth: 70 mmLength: 1,495 mm |
| No. of sockets and type | 24 x C13 / 4 x C19 |
| Sockets | 24 x C 134 x C 19 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 32 A |
| Power consumption | 7.4 kW |
| Infeeds | Qty.: 1Phases per infeed: 1~ |
| Length of connection cable | 3 m |
| Type of electrical connection | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging |
| Number RJ45 ports for sensor units max | 2 |
| Directives | EMC Directive 2014/30/EU |
| Standards | EN 62368-1 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP |
| Operating temperature range | 5 °C...50 °C |
| Ambient humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| To fit | Enclosure type: VX IT enclosure frame: ≥ 1,800 mmEnclosure type: VX IT 19" mounting angles: ≥ 1,800 mm |
| Packs of | 1 pc(s). |
| Net weight | 5 kg |
| Gross weight | 5.5 kg |
| Customs tariff number | 85366990 |
| EAN | 4028177948358 |
| ETIM 9 | EC002762 |
| ETIM 8 | EC002762 |
| ECLASS 8.0 | 27142604 |
| Product description | DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13, 4x C19 |
