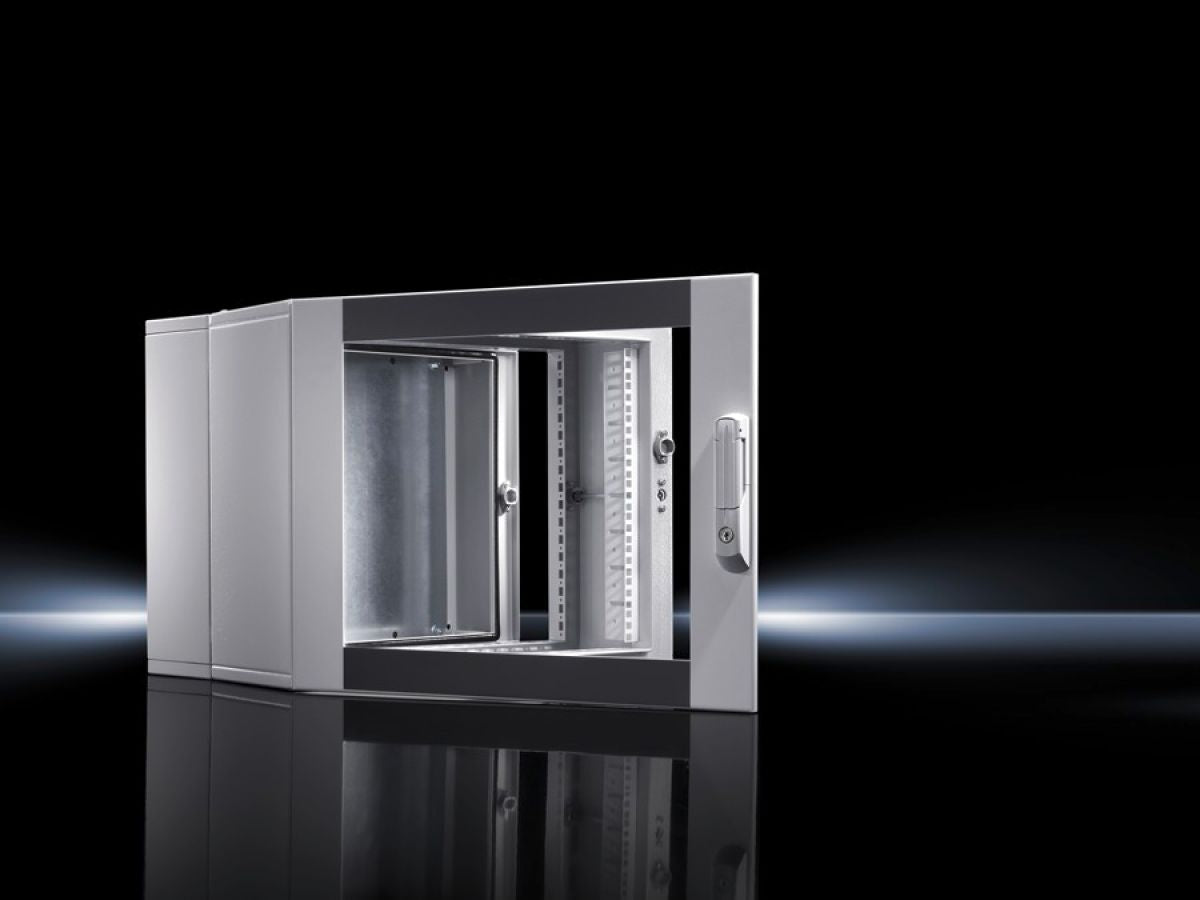

Rittal EL 2246.605, Wall-mounted enclosures EL, 3-part with mounting plate and mounting angles, static installation
Rittal EL 2246.605, Wall-mounted enclosures EL, 3-part with mounting plate and mounting angles, static installation
Regular price
€533,09
Regular price
Sale price
€533,09
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:EL 2246.605
Wall-mounted enclosure 3-part, pre-configured with: Solid gland plate, top and bottom, mounting plate is supplied loose. Protection category IP 55.
| Article number: | EL 2246.605 |
| Design | Wall-mounted enclosures ITwith mounting plate and mounting angles, static installation |
| Product description | Wall-mounted enclosure with optimum accessibility due to hinged part. |
| Material | Wall and hinged part: Sheet steel, 1.5 mmViewing window: Single-pane safety glass, 3 mm |
| Surface finish | Powder-coated |
| General colour | RAL 7035 |
| Colour | Wall and hinged part: RAL 7035Glazed door: RAL 7035/7015 (slate grey) |
| Supply includes | Wall section with solid gland plate, top and bottom and mounting plate (supplied loose).Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles, front, static installationDesigner glazed door1 double-kit key no. 5Mini-comfort handle for lock insertsSecurity lock 3524 E |
| Units | 6 U |
| Dimensions | Width: 600 mmHeight: 345 mmDepth: 373 mm |
| Installation depth | 320 mm |
| Clearances | Clearance width: 502 mmClearance height: 282 mm |
| Depth hinged part | 216 mm |
| Dimensions mounting plate (W x H) | 485 mm x 299 mm |
| Depth of wall section | 135 mm |
| IK Code | IK08 |
| Load capacity of hinged part (static) | 300 N |
| Basic material | Sheet steel |
| Protection category to IEC 60 529 | IP 55 |
| Packs of | 1 pc(s). |
| Net weight | 23.719 kg |
| Gross weight | 24.967 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177324312 |
| ETIM 9 | EC002500 |
| ETIM 8 | EC002500 |
| ECLASS 8.0 | 27180208 |
| Product description | EL Wall-mounted enclosures, 3-part, 6 U, WHD: 600x345x373 mm, Protection category: IP 55, Designer glazed door |
