Rittal EL 7705.235, Gland plate for metric cable glands for EL
Rittal EL 7705.235, Gland plate for metric cable glands for EL
Regular price
€41,91
Regular price
Sale price
€41,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:EL 7705.235

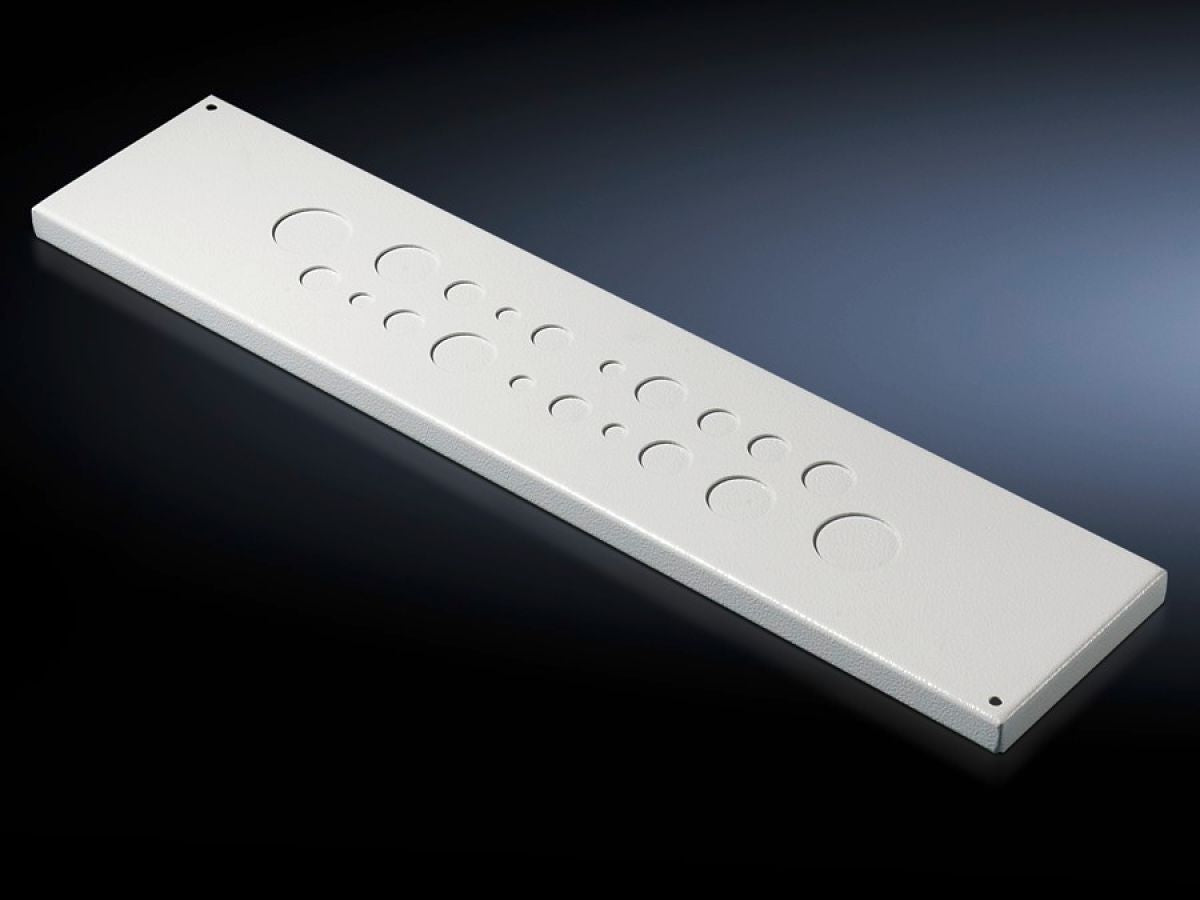

Folded gland plate with foamed-in seal and pre-punched, knock-out holes for metric cable glands.
| Article number: | EL 7705.235 |
| Product description | Folded gland plate with foamed-in seal and pre-punched, knock-out holes for metric cable glands M12, M20, M25, M32, M40. |
| Material | Sheet steel, 1.5 mm |
| Colour | RAL 7035 |
| No. of metric knockouts | 4 x M128 x M206 x M251 x M321 x M40 |
| Dimensions | Width: 599 mmDepth: 133.5 mm |
| Protection category to IEC 60 529 | IP 55 |
| Number knockouts | 48611 |
| Metric diameter | M12 |
| Packs of | 1 pc(s). |
| Net weight | 1.55 kg |
| Gross weight | 1.64 kg |
| PCF per pack (cradle-to-gate) | 6.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177389854 |
| ETIM 9 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | EL Gland plate for metric cable glands, WxD: 599x133,5 mm, For EL |
