Rittal

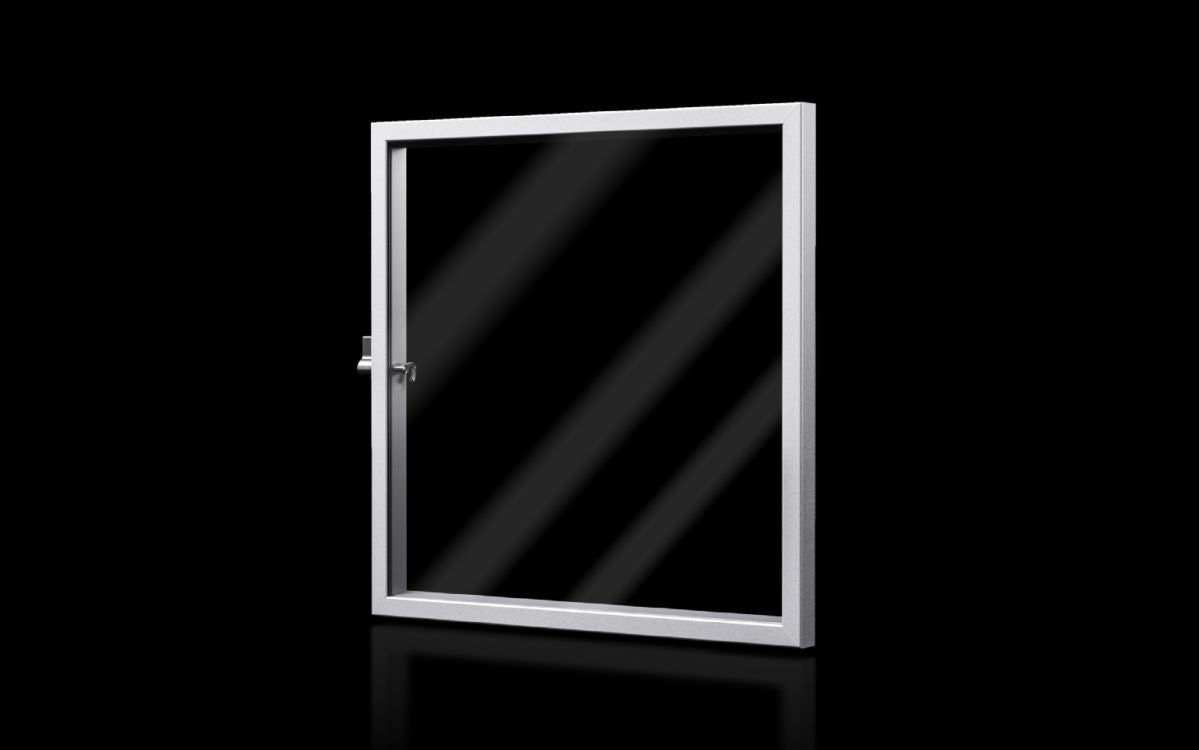

Rittal FT 2731.010, Viewing window for AX
Rittal FT 2731.010, Viewing window for AX
Regular price
€231,12
Regular price
Sale price
€231,12
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:FT 2731.010
For external mounting on AX enclosures instead of a door and on surfaces.
| Article number: | FT 2731.010 |
| Design | 30 section |
| Product description | For external mounting on AX enclosures instead of a door and on surfaces. |
| Material | Frame: Aluminium, natural anodised.Glass panel: Acrylic |
| Supply includes | Plastic handle with lock insert no. 3524 E |
| Protection category to IEC 60 529 | IP 54 |
| To fit Model No. | 1010.000 |
| To fit | Enclosure type: AXWidth: = 600 mmHeight: = 600 mm |
| Dimensions | Width: 597 mmHeight: 597 mmDepth: 36 mm |
| Visible area | Viewing window width: 537 mmViewing window height: 537 mm |
| Build depth for components (max.) | 32 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.236 kg |
| Gross weight | 3.48 kg |
| Customs tariff number | 76101000 |
| EAN | 4028177938472 |
| ETIM 9 | EC002527 |
| ETIM 8 | EC002527 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Viewing window, WHD: 597x597x36 mm, for AX enclosures instead of the door and surfaces |
