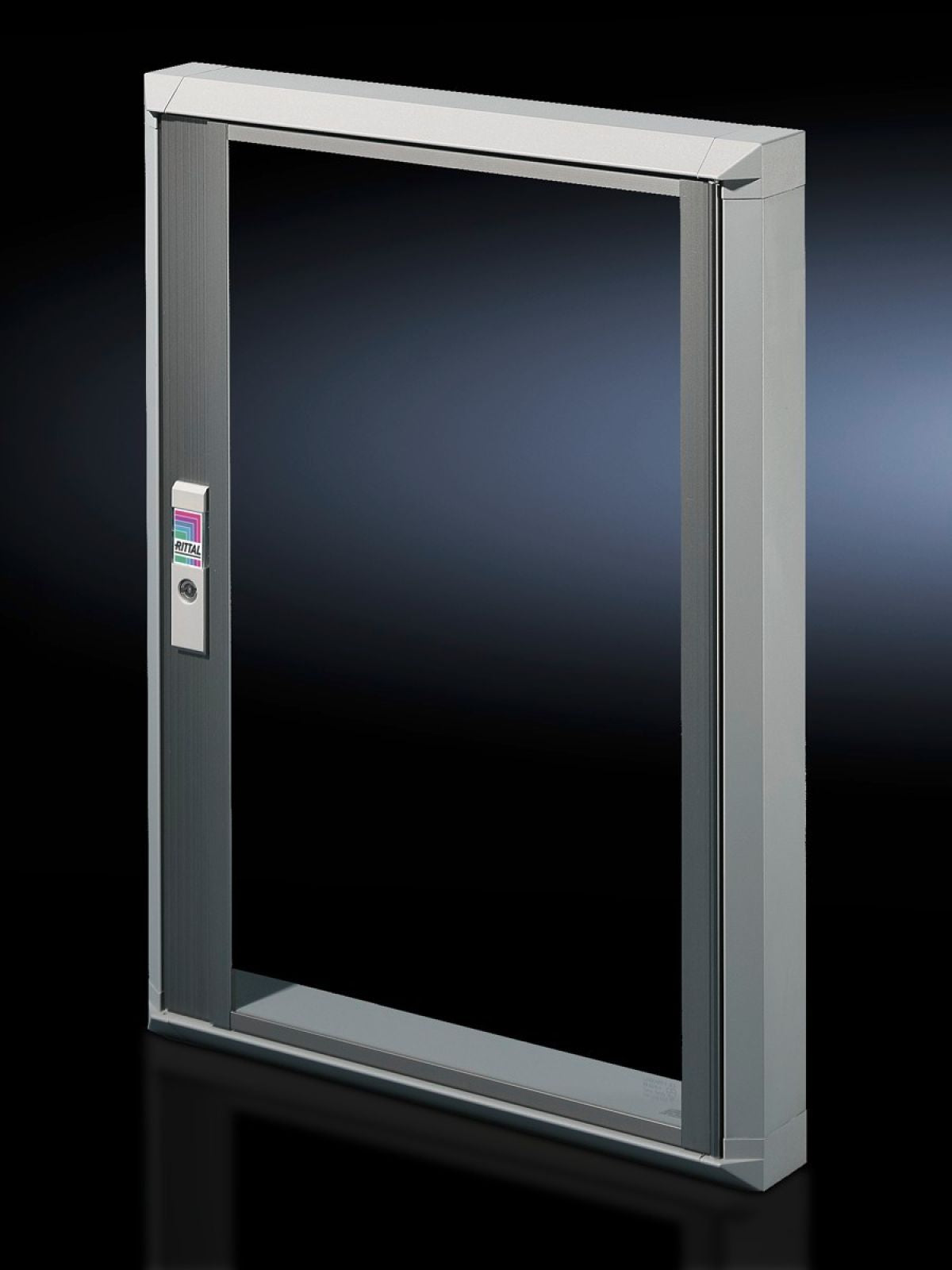

Rittal FT 2735.540, System windows for VX, TS, VX SE
Rittal FT 2735.540, System windows for VX, TS, VX SE
Regular price
€242,40
Regular price
Sale price
€242,40
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:FT 2735.540
To conceal display and operating instruments or cut-outs, and to protect against dirt and liquids as well as unauthorised access.
| Article number: | FT 2735.540 |
| Design | 30 section |
| Product description | To conceal display and operating instruments or cut-outs, and to protect against dirt and liquids as well as unauthorised access. |
| Material | Extruded aluminium section with die-cast zinc corner pieces and single-pane safety glass. |
| Surface finish | Base frame: Powder-coated on the outside in RAL 7035Hinge and lock section: Natural-anodised |
| Value base frame | Made from single-pane safety glass: High level of resistance to solvents and scratches, anti-static, reduced risk of injury if broken. |
| Value base frame | Easily screw-fastened to the door thanks to modified dimensions (tubular door frame may be used as a drilling template). |
| Protection category to IEC 60 529 | IP 54 |
| Note | Standard double-bit lock insert may be exchanged for lock inserts 27 mm, type A, and/or for lock system Ergoform-S (except H = 270 mm). |
| To fit | Enclosure type: VXTSVX SEWidth: = 600 mm |
| Dimensions | Width: 500 mmHeight: 670 mmDepth: 47 mm |
| Visible area | Viewing window width: 363 mmViewing window height: 598 mm |
| Build depth for components (max.) | 33 mm |
| Packs of | 1 pc(s). |
| Net weight | 5.368 kg |
| Gross weight | 5.72 kg |
| Customs tariff number | 76101000 |
| EAN | 4028177476325 |
| ETIM 9 | EC002527 |
| ETIM 8 | EC002527 |
| ECLASS 8.0 | 27182301 |
| Product description | FT System window, for VX, TS, VX SE, 30 section, WHD: 500x670x47 mm, for W: 600 mm |
