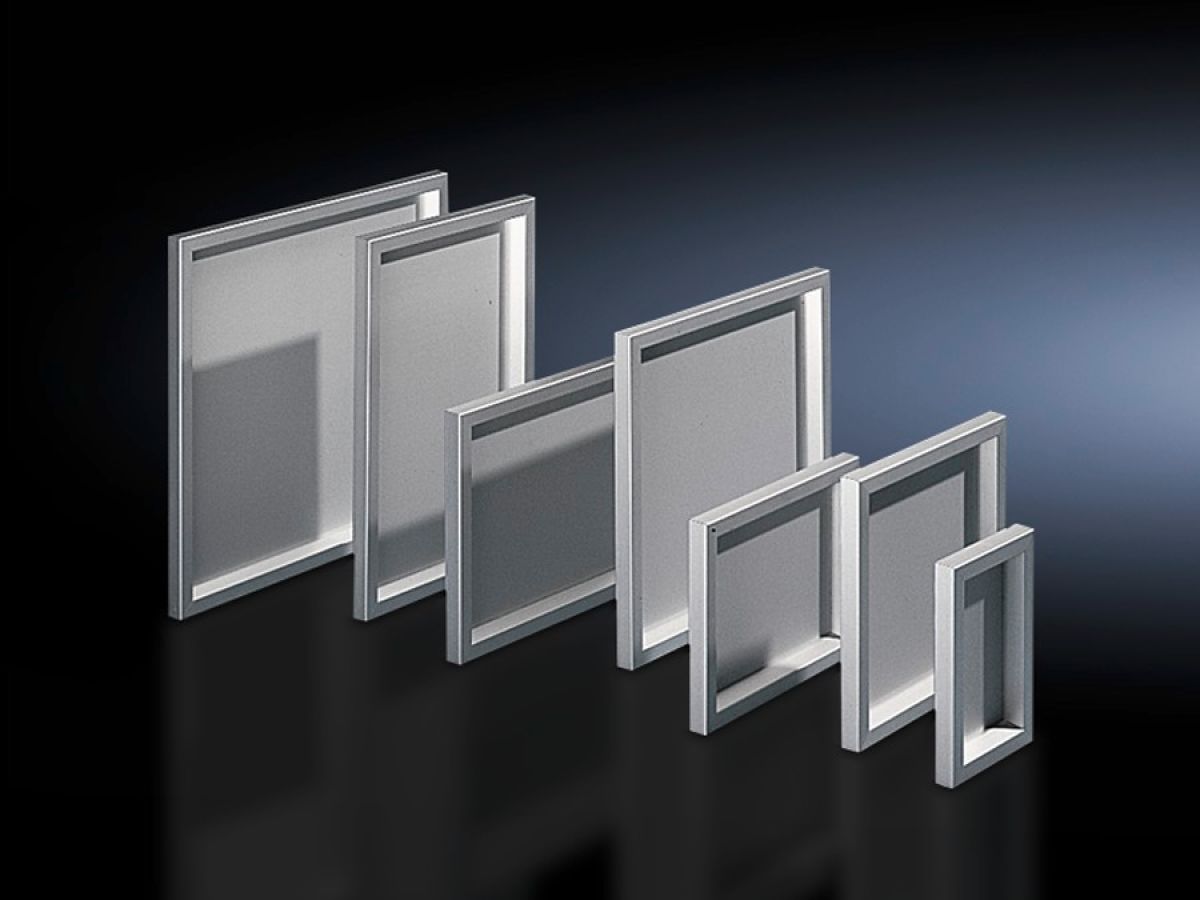

Rittal FT 2740.000, Operating panel for AE
Rittal FT 2740.000, Operating panel for AE
Regular price
€127,30
Regular price
Sale price
€127,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:FT 2740.000
For external mounting on an AE instead of a door and on surfaces. Frame construction with corner connectors on the inside, 3 mm aluminium plate secured from the inside and sealed against the frame.
| Article number: | FT 2740.000 |
| Product description | For external mounting on an AE instead of a door and on surfaces. Frame construction with corner connectors on the inside, 3 mm aluminium plate secured from the inside and sealed against the frame. |
| Material | Aluminium, natural anodised |
| Supply includes | Aluminium frameDisplay panelHingesBrackets |
| Protection category to IEC 60 529 | IP 54 |
| Note | When installing instead of a door, the cam lock is required |
| To fit | Enclosure type: AEWidth: = 200 mmHeight: = 300 mm |
| Dimensions | Width: 197 mmHeight: 297 mmDepth: 34 mm |
| Dimensions of aluminium plate | Width: 143 mmHeight: 243 mm |
| Area available for population | Width: 127 mmHeight: 227 mm |
| Note on Model No. | With AE, only for use on the rear panel |
| Packs of | 1 pc(s). |
| Net weight | 1.237 kg |
| Gross weight | 1.42 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177031838 |
| ETIM 9 | EC000747 |
| ETIM 8 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Operating panel, WHD: 197x297x34 mm, for WH: 200x300 mm |
