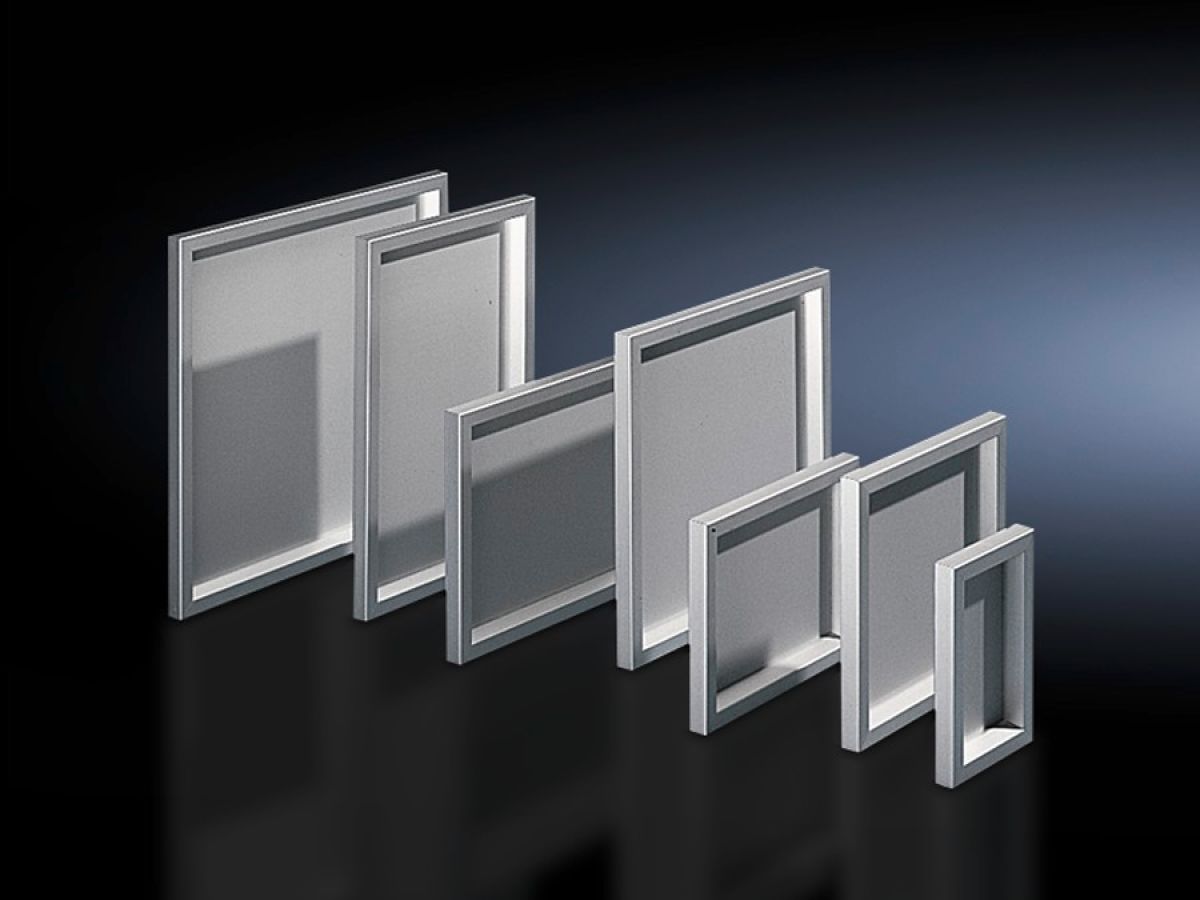

Rittal FT 2742.000, Operating panel for AE
Rittal FT 2742.000, Operating panel for AE
Regular price
€145,58
Regular price
Sale price
€145,58
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:FT 2742.000
For external mounting on an AE instead of a door and on surfaces. Frame construction with corner connectors on the inside, 3 mm aluminium plate secured from the inside and sealed against the frame.
| Article number: | FT 2742.000 |
| Product description | For external mounting on an AE instead of a door and on surfaces. Frame construction with corner connectors on the inside, 3 mm aluminium plate secured from the inside and sealed against the frame. |
| Material | Aluminium, natural anodised |
| Supply includes | Aluminium frameDisplay panelHingesBrackets |
| Protection category to IEC 60 529 | IP 54 |
| Note | When installing instead of a door, the cam lock is required |
| To fit | Enclosure type: AEWidth: = 380 mmHeight: = 380 mm |
| Dimensions | Width: 377 mmHeight: 377 mmDepth: 34 mm |
| Dimensions of aluminium plate | Width: 323 mmHeight: 323 mm |
| Area available for population | Width: 307 mmHeight: 307 mm |
| Packs of | 1 pc(s). |
| Net weight | 2.182 kg |
| Gross weight | 2.382 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177031876 |
| ETIM 9 | EC000747 |
| ETIM 8 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Operating panel, WHD: 377x377x34 mm, for WH: 380x380 mm |
