Rittal

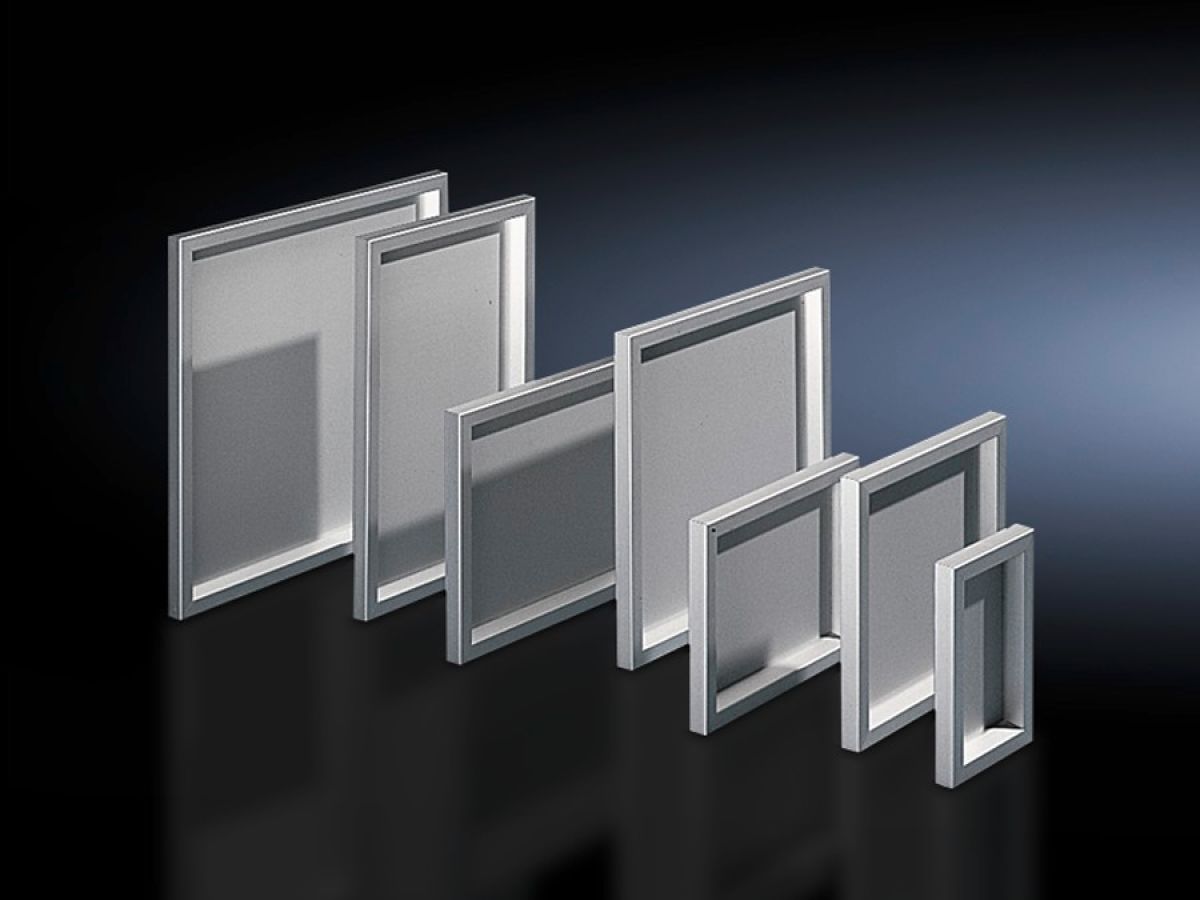

Rittal FT 2745.000, Operating panel for AE
Rittal FT 2745.000, Operating panel for AE
Regular price
€172,57
Regular price
Sale price
€172,57
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:FT 2745.000
For external mounting on an AE instead of a door and on surfaces. Frame construction with corner connectors on the inside, 3 mm aluminium plate secured from the inside and sealed against the frame.
| Article number: | FT 2745.000 |
| Product description | For external mounting on an AE instead of a door and on surfaces. Frame construction with corner connectors on the inside, 3 mm aluminium plate secured from the inside and sealed against the frame. |
| Material | Aluminium, natural anodised |
| Supply includes | Aluminium frameDisplay panelHingesBrackets |
| Protection category to IEC 60 529 | IP 54 |
| Note | When installing instead of a door, the cam lock is required |
| To fit | Enclosure type: AEWidth: = 500 mmHeight: = 500 mm |
| Dimensions | Width: 497 mmHeight: 497 mmDepth: 34 mm |
| Dimensions of aluminium plate | Width: 443 mmHeight: 443 mm |
| Area available for population | Width: 427 mmHeight: 427 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.343 kg |
| Gross weight | 3.543 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177031937 |
| ETIM 9 | EC000747 |
| ETIM 8 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Operating panel, WHD: 497x497x34 mm, for WH: 500x500 mm |
