Rittal

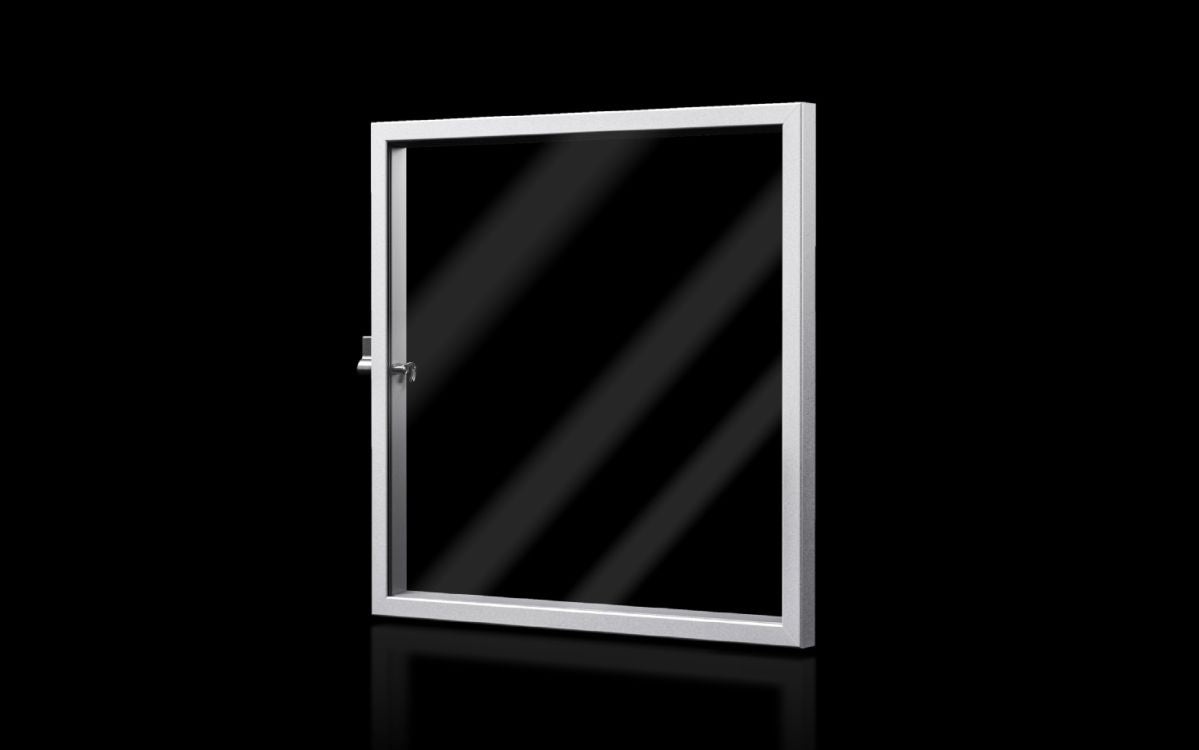

Rittal FT 2760.010, Viewing window for AX
Rittal FT 2760.010, Viewing window for AX
Regular price
€228,12
Regular price
Sale price
€228,12
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:FT 2760.010
For external mounting on AX enclosures instead of a door and on surfaces.
| Article number: | FT 2760.010 |
| Design | 60 section |
| Product description | For external mounting on AX enclosures instead of a door and on surfaces. |
| Material | Frame: Aluminium, natural anodised.Glass panel: Acrylic |
| Supply includes | Plastic handle with lock insert no. 3524 E |
| Protection category to IEC 60 529 | IP 54 |
| To fit Model No. | 1039.000 |
| To fit | Enclosure type: AXWidth: = 600 mmHeight: = 380 mm |
| Dimensions | Width: 597 mmHeight: 377 mmDepth: 62 mm |
| Visible area | Viewing window width: 537 mmViewing window height: 317 mm |
| Build depth for components (max.) | 58 mm |
| Packs of | 1 pc(s). |
| Net weight | 3.245 kg |
| Gross weight | 3.3 kg |
| Customs tariff number | 76101000 |
| EAN | 4028177938571 |
| ETIM 9 | EC002527 |
| ETIM 8 | EC002527 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Viewing window, WHD: 597x377x62 mm, for AX enclosures instead of the door and surfaces |
