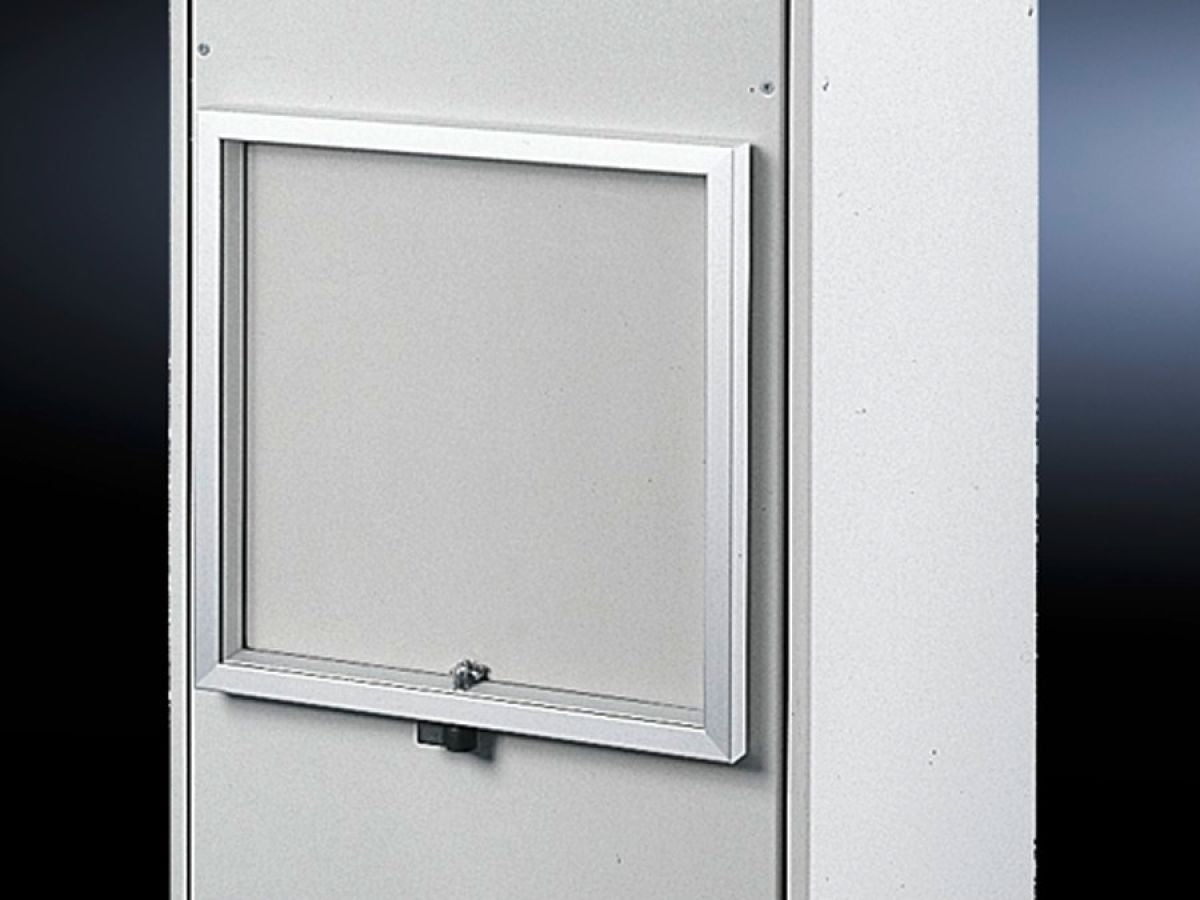

Rittal FT 2762.000, Viewing window for AE
Rittal FT 2762.000, Viewing window for AE
Regular price
€311,61
Regular price
Sale price
€311,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:FT 2762.000
For mounting on AE instead of door or sufficiently large surfaces.
| Article number: | FT 2762.000 |
| Product description | For mounting on AE instead of doors and surfaces. |
| Material | Frame: Aluminium, natural anodised.Glass panel: Acrylic |
| Supply includes | Plastic handle with lock insert no. 3524 E |
| Protection category to IEC 60 529 | IP 54 |
| To fit | Enclosure type: AEWidth: = 600 mmHeight: = 760 mm |
| Dimensions | Width: 597 mmHeight: 757 mmDepth: 60 mm |
| Visible area | Viewing window width: 537 mmViewing window height: 697 mm |
| Build depth for components (max.) | 56 mm |
| Packs of | 1 pc(s). |
| Net weight | 4.482 kg |
| Gross weight | 4.682 kg |
| Customs tariff number | 76101000 |
| EAN | 4028177032064 |
| ETIM 9 | EC000747 |
| ETIM 8 | EC000747 |
| ECLASS 8.0 | 27182204 |
| Product description | FT Viewing window, WHD: 597x757x60 mm, for WH: 600x760 mm, aluminum |
