Rittal

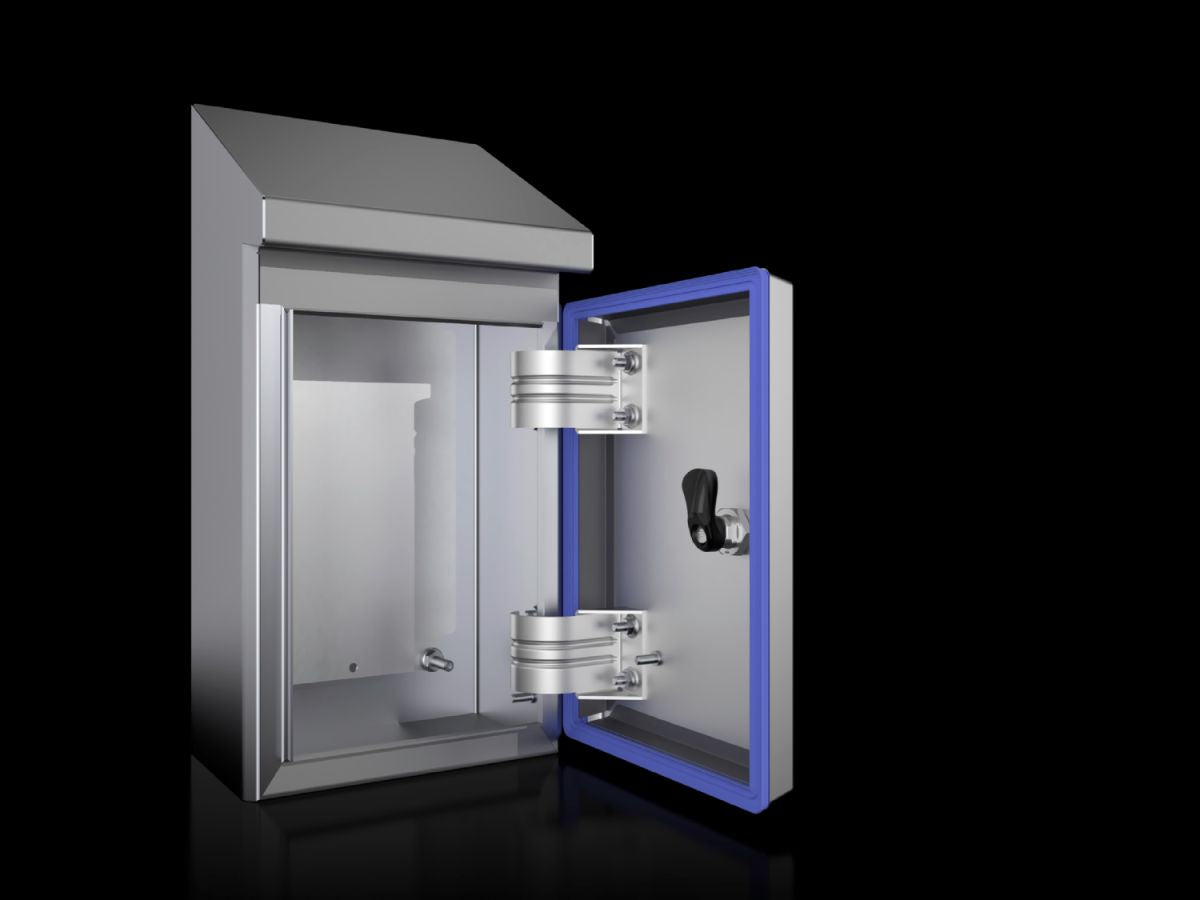

Rittal HD 1302.600, Compact enclosure HD, single-door
Rittal HD 1302.600, Compact enclosure HD, single-door
Regular price
€421,17
Regular price
Sale price
€421,17
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:HD 1302.600
Enclosure solution tailored to the requirements of the food and beverage industry. Roof angled forwards by 30°. Seal dyed blue to clearly distinguish it from foodstuffs
| Article number: | HD 1302.600 |
| Design | Hygienic Design enclosure |
| Product modification | From June 2020, the compact enclosure HD, single-door, comes with the new compact enclosure AX mounting plate. |
| Material | Enclosure and door: Stainless steel 1.4301 (AISI 304)Mounting plate: Sheet steelLock insert HD: Stainless steel 1.4404 (AISI 316L)Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 |
| Surface finish | Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µmMounting plate: Zinc-platedSeal: Blue, dyed (RAL 5010) |
| Supply includes | Enclosure of all-round solid constructionDoor with inserted sealDoor hinged on the right, may be swapped to the leftMounting plate |
| Dimensions | Width: 220 mmHeight, front: 350 mmHeight rear: 437 mmDepth: 155 mm |
| Dimensions mounting plate (W x H) | 160 mm x 275 mm |
| Door opening angle | 125° |
| Number of locks | 1 |
| IK Code | IK08 |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| IP protection category to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| Packs of | 1 pc(s). |
| Net weight | 6 kg |
| Gross weight | 6.56 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177567597 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | HD Compact enclosure, WHD: 220x350(H1)x437(H2)x155 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal |
