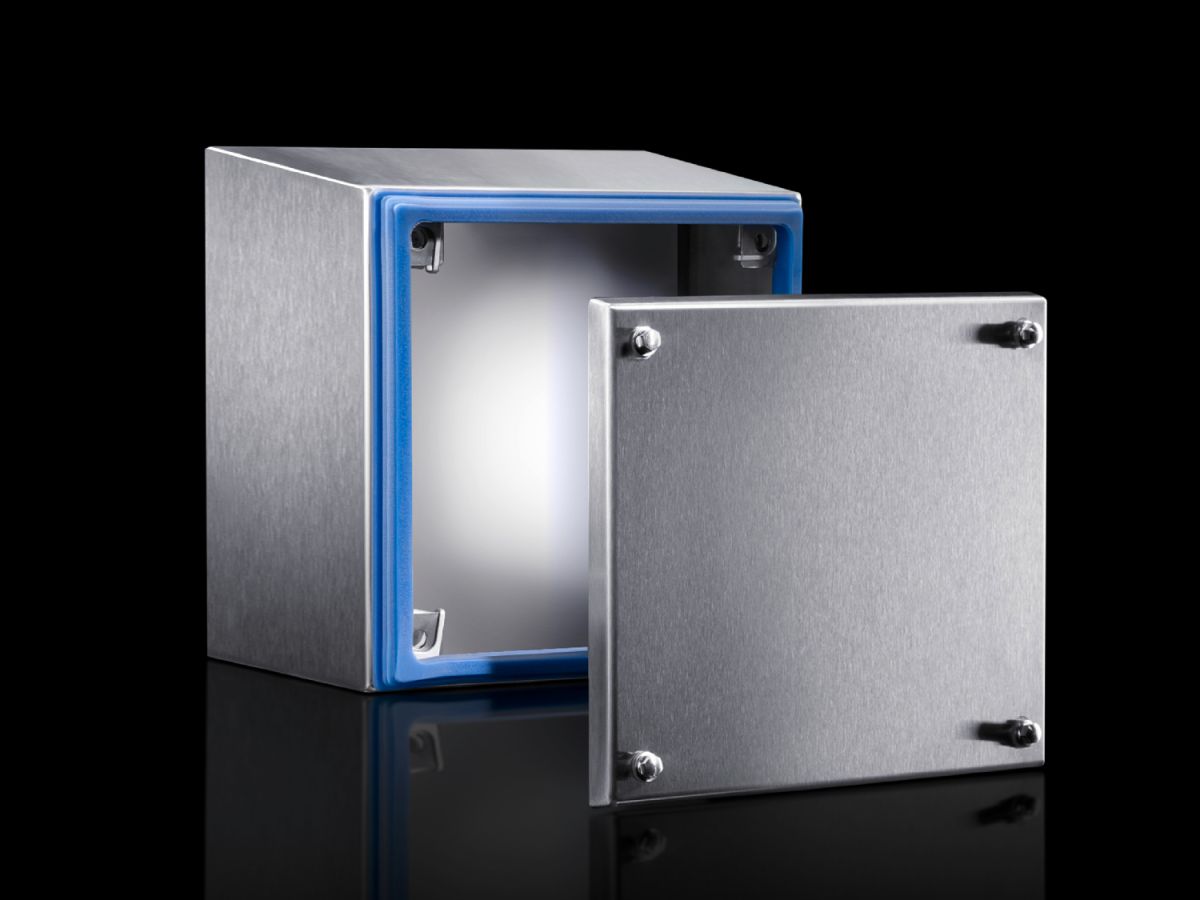

Rittal HD 1671.600, Terminal box HD
Rittal HD 1671.600, Terminal box HD
Regular price
€292,66
Regular price
Sale price
€292,66
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:HD 1671.600
Enclosure solution tailored to the requirements of the food and beverage industry. All-round gap-free silicone seal between enclosure and cover. Hygiene-compliant quick-release hexagon fastener
| Article number: | HD 1671.600 |
| Design | Hygienic Design enclosure |
| Material | Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mmMounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mmScrew plug: Stainless steelSeal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 |
| Surface finish | Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µmSeal: Blue, dyed (RAL 5010) |
| Supply includes | Enclosure of all-round solid constructionCoverMounting bracket (pre-assembled)Seal and screw plug (supplied loose) |
| Dimensions | Width front: 150 mmWidth (rear): 177 mmHeight, front: 150 mmHeight rear: 177 mmDepth: 120 mm |
| IK Code | IK08 |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| IP protection category to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| Packs of | 1 pc(s). |
| Net weight | 1.906 kg |
| Gross weight | 2.06 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177639744 |
| ETIM 9 | EC002713 |
| ETIM 8 | EC002713 |
| ECLASS 8.0 | 27180101 |
| Product description | HD Terminal box, WHD: 150x150x120 mm, Stainless steel 1.4301, with cover and silicone seal |
