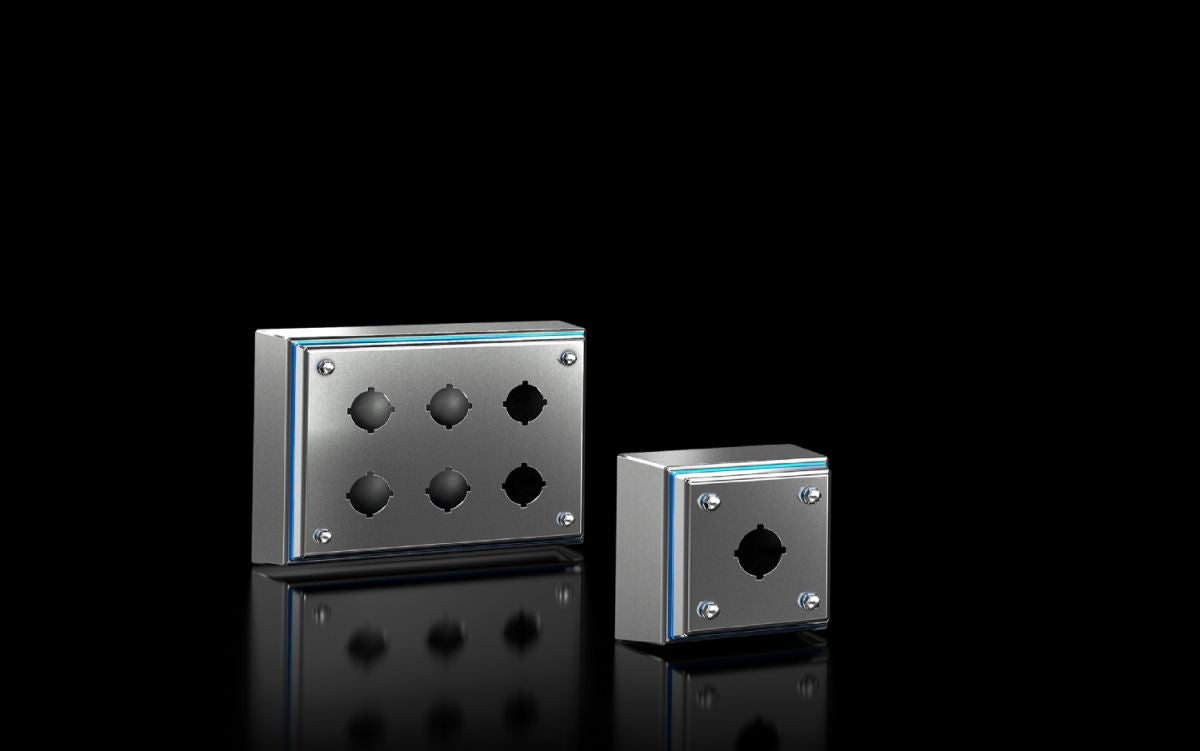

Rittal HD 1684.600, Switch housing HD
Rittal HD 1684.600, Switch housing HD
Regular price
€225,12
Regular price
Sale price
€225,12
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:HD 1684.600
Enclosure solution with four cut-outs for switches, tailored to the requirements of the food and beverage industry. All-round gap-free silicone seal between enclosure and cover. Hygiene-compliant quick-release hexagon fastener.
| Article number: | HD 1684.600 |
| Design | Hygienic Design enclosure |
| Material | Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mmScrew plug: Stainless steelSeal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 |
| Surface finish | Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µmSeal: Blue, dyed (RAL 5010) |
| Supply includes | Enclosure of all-round solid constructionCover with switch cut-outSeal and screw plug (supplied loose) |
| Dimensions | Width front: 100 mmWidth (rear): 122 mmHeight, front: 280 mmHeight rear: 302 mmDepth: 90 mm |
| Pitch pattern | 60 mm |
| Cut-outs (quantity x diameter) | 4 x 22.5 mm |
| IK Code | IK08 |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Lock | Lock version: Hygiene-compliant quick-release hexagon fastenerNumber of locks: 4 |
| IP protection category to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 1 |
| Type rating to UL 50E | Type 1 |
| Packs of | 1 pc(s). |
| Net weight | 1.78 kg |
| Gross weight | 1.98 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177958692 |
| ETIM 9 | EC002713 |
| ETIM 8 | EC002713 |
| ECLASS 8.0 | 27180101 |
| Product description | HD switch housing, WxHxD: 100x280x90 mm, stainless steel 1.4301, 4 switch cut-outs, Ø 22.5 mm |
