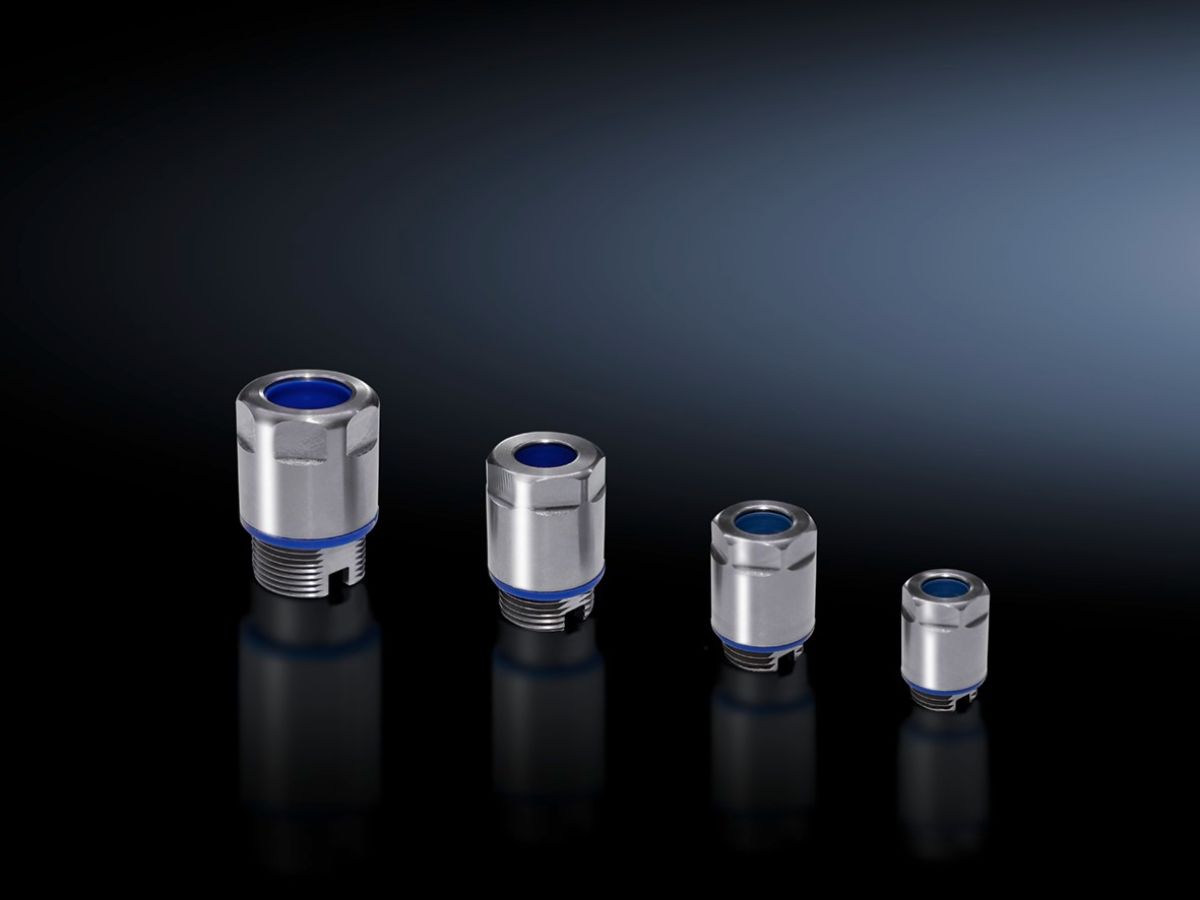

Rittal HD 2410.131, Cable gland HD
Rittal HD 2410.131, Cable gland HD
Regular price
€234,40
Regular price
Sale price
€234,40
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:HD 2410.131
More compact design and the lock nut is included with the supply.
| Article number: | HD 2410.131 |
| Design | EMC |
| Benefits | Smooth, solid exterior surfaces effectively prevent the depositing of harmful micro-organisms. |
| Applications | Manufacturer |
| Material | Nut: Stainless steel 1.4305 (AISI 303)Seal: EPDM, compliant with FDA 21 CFR 177.2600 |
| Supply includes | Lock nut |
| Dimensions | Thread: M25 x 1.5 |
| For cable diameters | 12 ‐ 17 mm |
| Operating temperature range | -20 °C...100 °C |
| IP protection category to IEC 60 529 | IP69 / IPX8 (5 bar, 30 min) |
| Type rating to UL 50E | Type 1 |
| Packs of | 5 pc(s). |
| Net weight | 0.54 kg |
| Gross weight | 0.59 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177928664 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | HD Cable gland, stainless steel 1.4305, size: M25x1,5, for cables Ø 12-17 mm, EMC version |
