Rittal

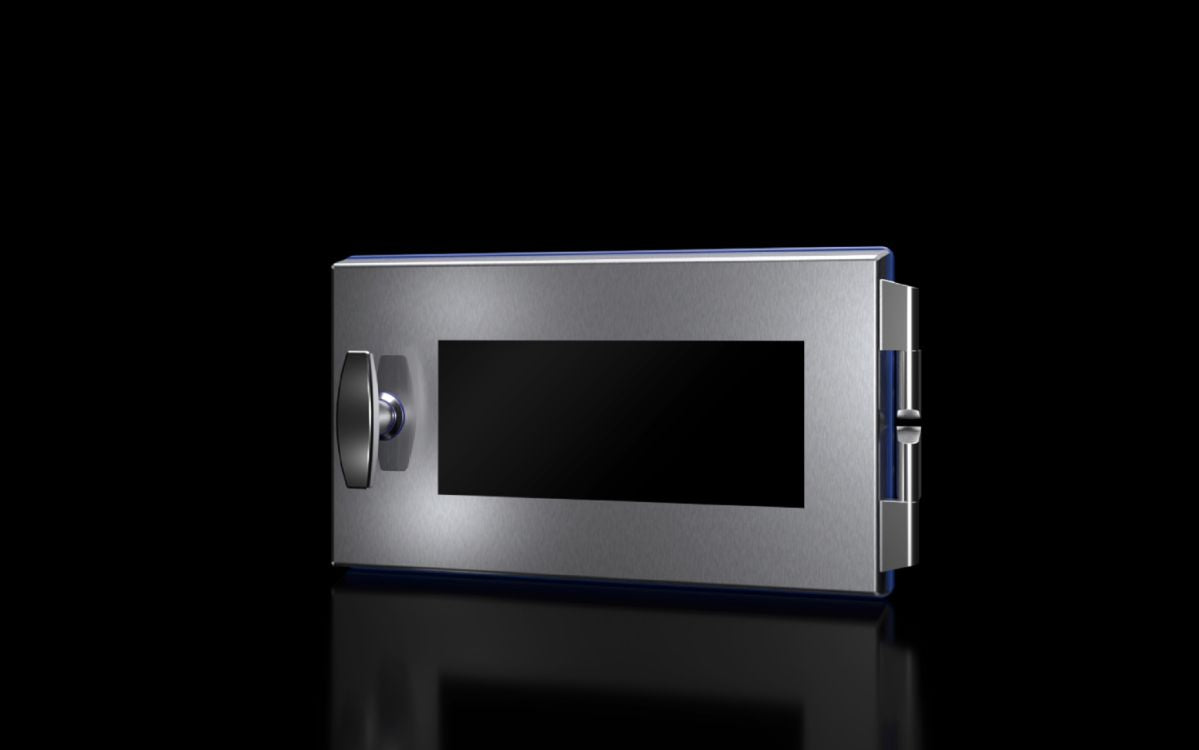

Rittal HD 4000.081, Viewing window HD
Rittal HD 4000.081, Viewing window HD
Regular price
€338,70
Regular price
Sale price
€338,70
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:HD 4000.081
For the protection of switches or displays.
| Article number: | HD 4000.081 |
| Product description | For the protection of switches or displays. |
| Benefits | Large viewing panel |
| Material | Frame: Stainless steel 1.4301 (AISI 304)Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600Viewing window: Polycarbonate |
| Supply includes | 2 hingesT handleAssembly parts |
| Visible area | Viewing window width: 212 mmViewing window height: 90 mm |
| Dimensions | Width: 330 mmHeight: 190 mmDepth: 65 mm |
| To fit | Enclosure type: HD compact enclosure |
| IP protection category to IEC 60 529 | IP 55 |
| IK Code | IK08 |
| Installation options | For external mounting on surfaces. |
| Type rating to UL 50E | Type 1 |
| Packs of | 1 pc(s). |
| Net weight | 1.83 kg |
| Gross weight | 1.891 kg |
| Customs tariff number | 39252000 |
| EAN | 4028177985148 |
| ETIM 9 | EC002527 |
| ETIM 8 | EC002527 |
| ECLASS 8.0 | 27182204 |
| Product description | HD viewing window, with T handle, WxH: 330x190 mm, stainless steel, 1.4301 |
