Rittal

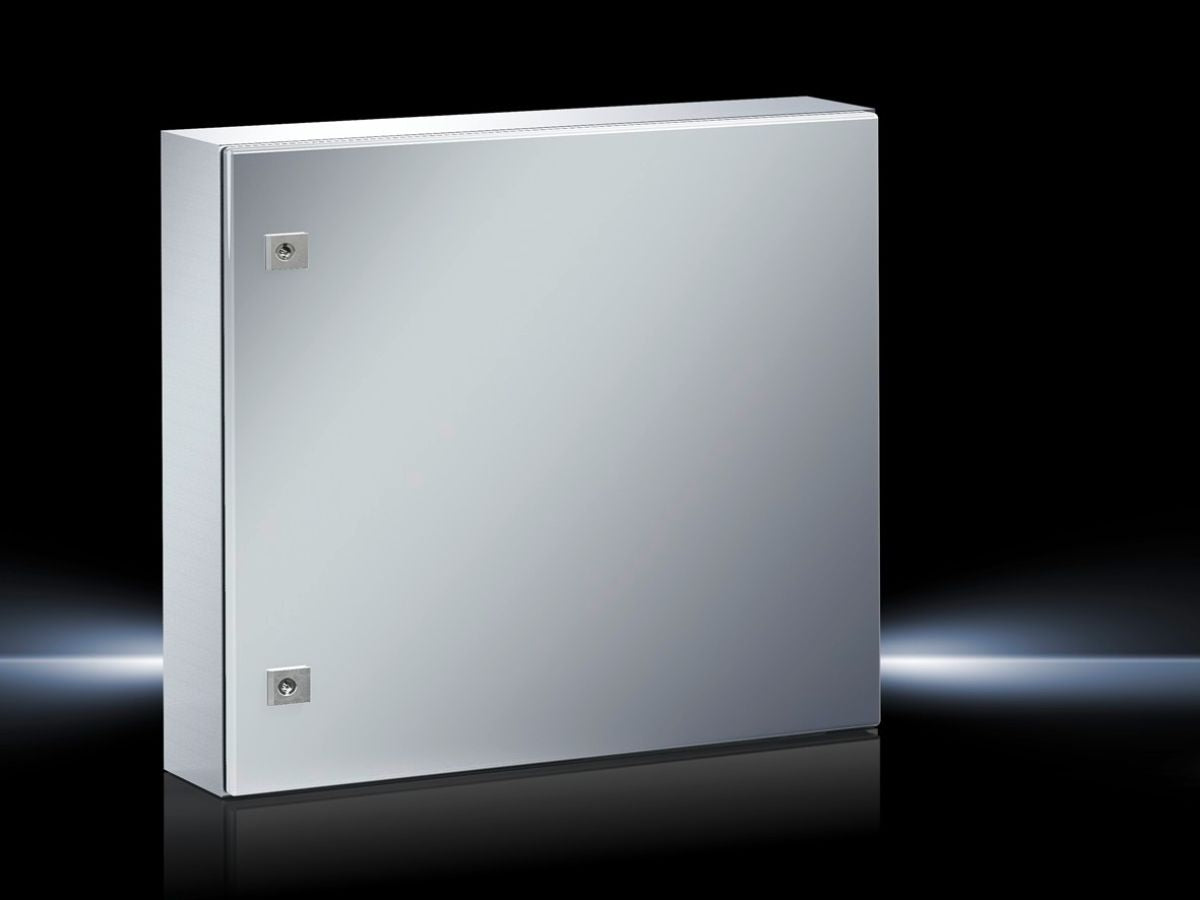

Rittal KEL 9405.600, Ex enclosures Stainless steel, empty enclosure with hinged door
Rittal KEL 9405.600, Ex enclosures Stainless steel, empty enclosure with hinged door
Regular price
€670,71
Regular price
Sale price
€670,71
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:KEL 9405.600
Ex enclosure with hinged door, stainless steel
| Article number: | KEL 9405.600 |
| Design | Ex enclosures |
| Applications | Zone 1 and 2 or 21 and 22 to 2014/34/EC |
| Material | Enclosure: Stainless steel 1.4301 (AISI 304)Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone sealMounting plate: Sheet steel |
| Surface finish | Enclosure: Brushed, grain 400, peak-to-valley height < 0.8 µmMounting plate: Zinc-plated |
| Supply includes | EnclosureDoorMounting plate |
| Dimensions | Width: 600 mmHeight: 600 mmDepth: 210 mm |
| Dimensions mounting plate (W x H) | 549 mm x 570 mm |
| Certificate IEC EX PTB 09.0035U | Yes |
| Certificate PTB 02 ATEX 1082U | Yes |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Lock | Lock version: CamNumber of locks: 2Lock insert: 3 mm double-bit |
| IP protection category to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 4X |
| Type rating to UL 50E | Type 1 |
| Packs of | 1 pc(s). |
| Net weight | 21.94 kg |
| Gross weight | 23.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177138803 |
| ETIM 9 | EC002503 |
| ECLASS 8.0 | 27180502 |
| Product description | KEL Ex enclosure, WHD: 600x600x210 mm, Stainless steel 1.4301, with mounting plate, Empty enclosure with hinged door |
