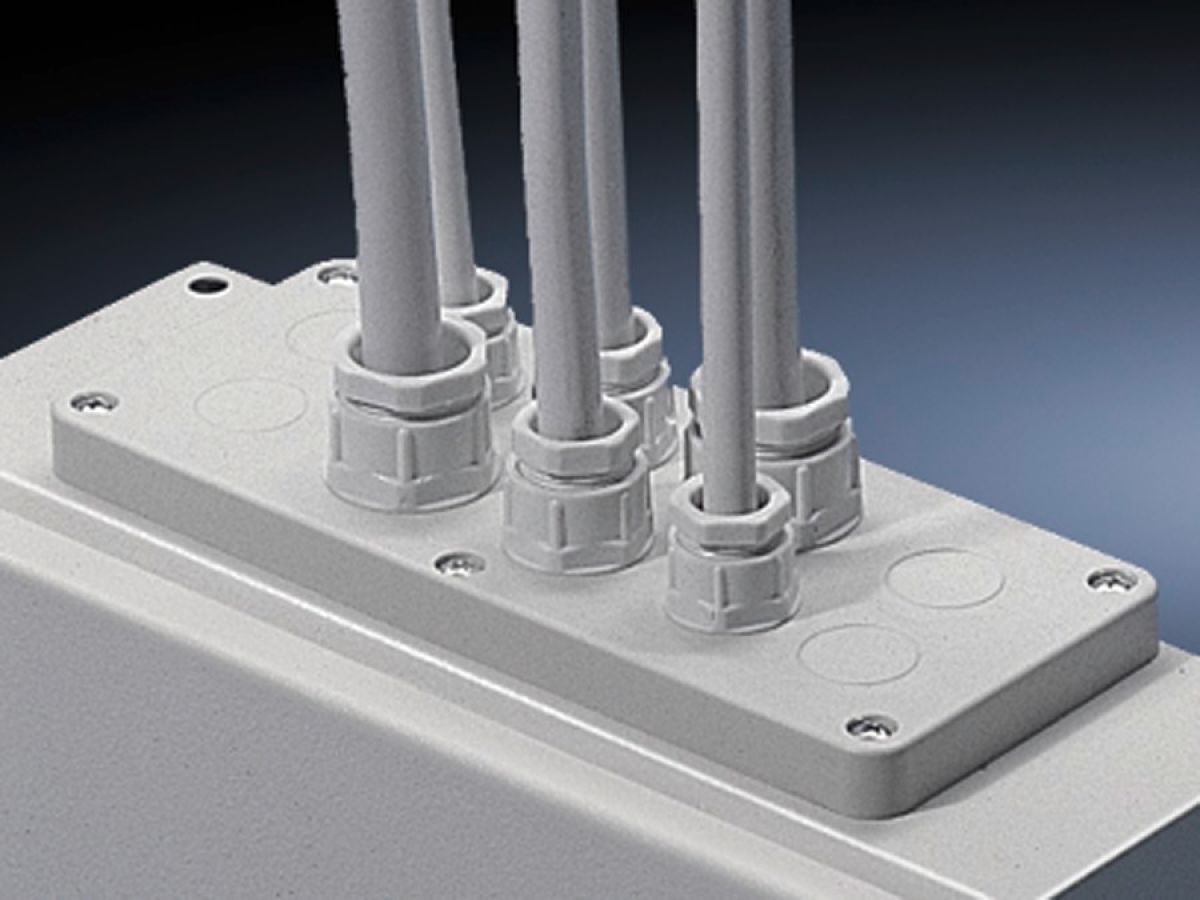

Rittal KL 1581.000, Plastic cable gland plates with PG knockouts
Rittal KL 1581.000, Plastic cable gland plates with PG knockouts
Regular price
€50,19
Regular price
Sale price
€50,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:KL 1581.000
With pre-punched PG holes for cable glands.
| Article number: | KL 1581.000 |
| Product description | With pre-punched PG holes for cable glands. Use seal for standard gland plates. |
| Material | ABS |
| Colour | RAL 7035 |
| Note | The allocation of gland plate sizes is indicated on the relevant enclosures |
| No. of metric knockouts | 12 |
| Number x PG diameter | 12 x 13.5 |
| Dimensions | Width: 220 mmDepth: 90 mm |
| To fit | Enclosure type: KL |
| Gland plate | Size: 2 |
| Operating temperature range | -40 °C...70 °C |
| Protection category to IEC 60 529 | IP 55 if installed correctly |
| Number knockouts | 12 |
| Packs of | 5 pc(s). |
| Net weight | 0.505 kg |
| Gross weight | 0.604 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177010888 |
| ETIM 9 | EC000211 |
| ETIM 8 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | KL Plastic cable gland plate, with PG knock-outs, WD: 220x90 mm, size: 2, PG knockouts: 13.5 |
