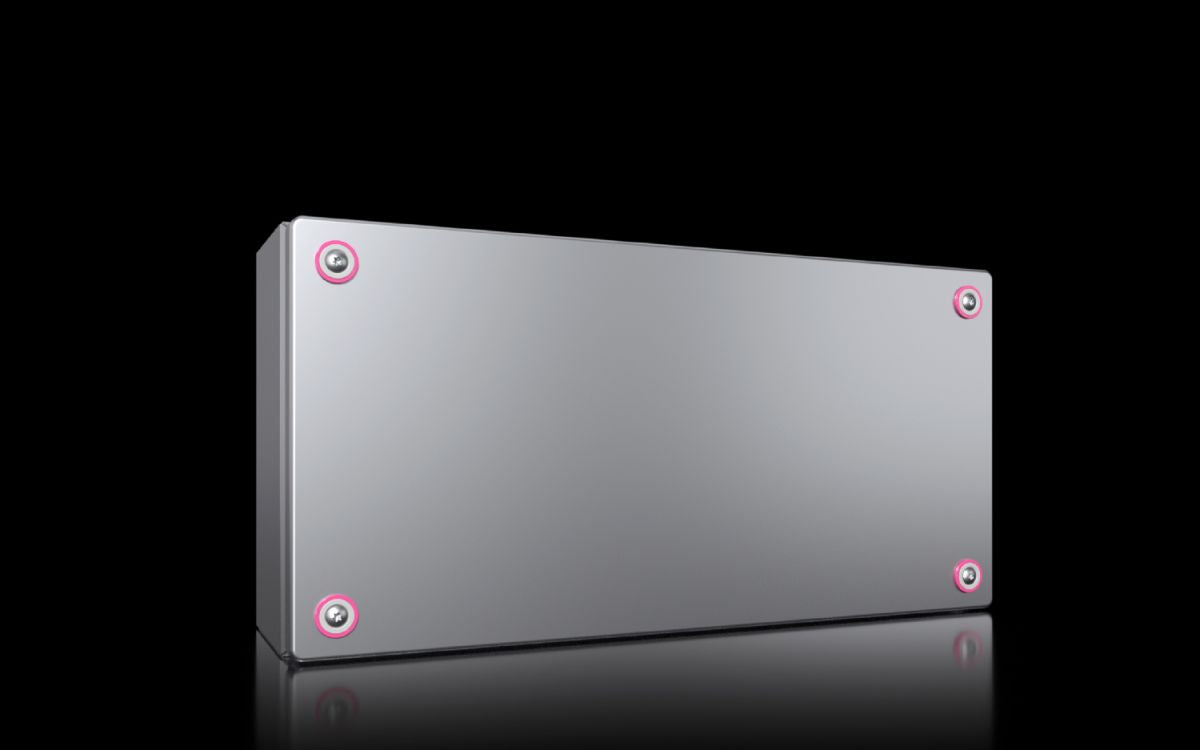

Rittal KX 1568.000, Terminal box KX Stainless steel
Rittal KX 1568.000, Terminal box KX Stainless steel
Regular price
€253,68
Regular price
Sale price
€253,68
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 08.12.2025
Couldn't load pickup availability
SKU: SKU:KX 1568.000
The stainless steel terminal box KX delivers maximum data quality and consistency of engineering while ensuring flexibility and reliability across a wide range of applications.
| Article number: | KX 1568.000 |
| Product description | The stainless steel terminal box KX delivers maximum data quality and consistency of engineering while ensuring flexibility and reliability across a wide range of applications. |
| Material | Enclosure: Stainless steel 1.4301 (AISI 304)Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal |
| Surface finish | Enclosure and cover: Brushed, grain 180 |
| Supply includes | Enclosure with coverQuick-release fastener including plastic bushes |
| Protection category NEMA | NEMA 1 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1 |
| Dimensions | Width: 400 mmHeight: 200 mmDepth: 120 mm |
| Material thickness - cover | 1.25 mm |
| Material thickness - enclosure | 1.25 mm |
| Lock | Number of locks: 4 |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| Packs of | 1 pc(s). |
| Net weight | 3.62 kg |
| Gross weight | 3.66 kg |
| Customs tariff number | 84879090 |
| EAN | 4028177919082 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX Terminal box, WHD: 400x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners |
