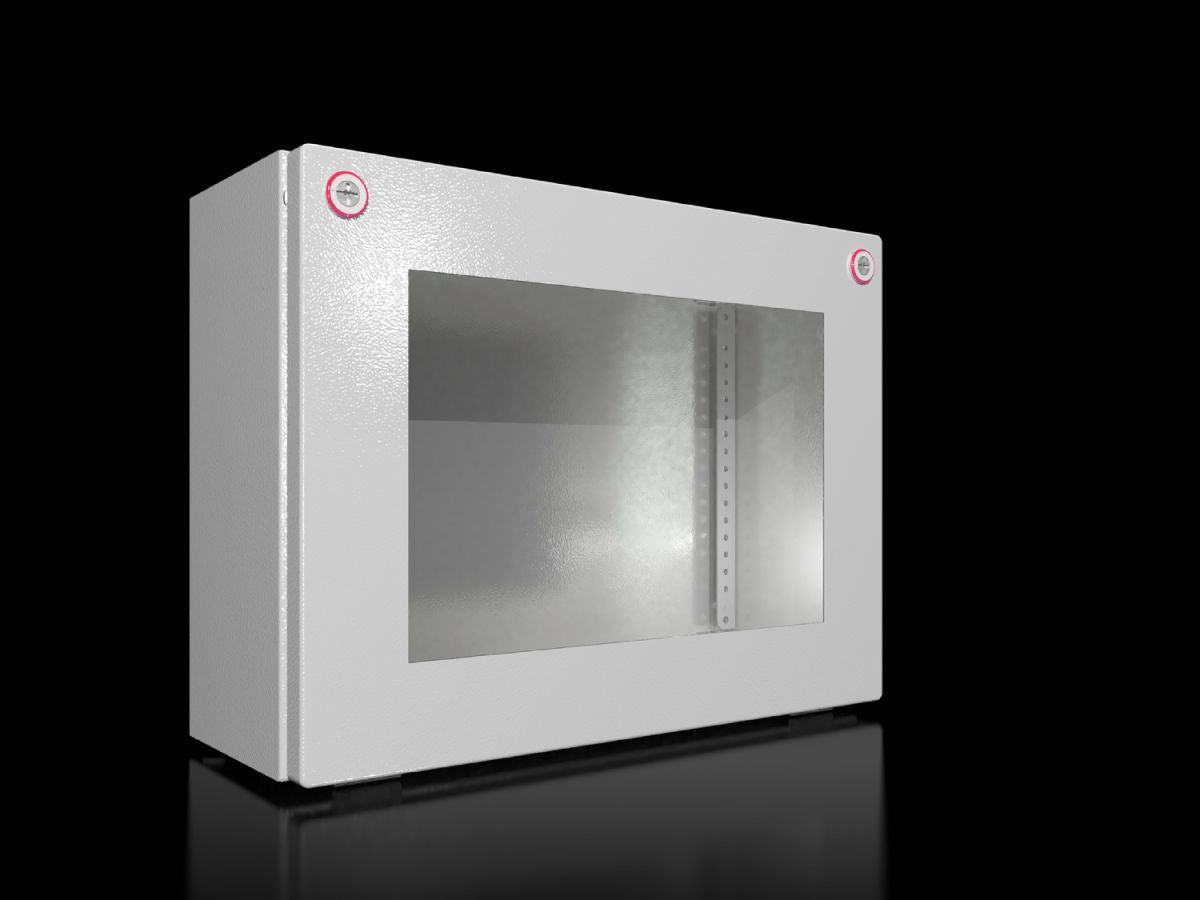

Rittal KX 1611.000, Bus enclosures KX, sheet steel, with mini cam lock
Rittal KX 1611.000, Bus enclosures KX, sheet steel, with mini cam lock
Regular price
€136,44
Regular price
Sale price
€136,44
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:KX 1611.000
Wall-mounted enclosure made from sheet steel, with cover and viewing panel. Protection category IP 65/NEMA 12. For installing most brands of bus modules and sensors.
| Article number: | KX 1611.000 |
| Design | with viewing window |
| Material | Enclosure: Sheet steelCover: Sheet steel, all-round foamed-in PU sealViewing window: Polycarbonate, 4 mm |
| Surface finish | Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint |
| Colour | RAL 7035 |
| Supply includes | Enclosure with hinged coverViewing window in coverMini cam locks |
| Protection category NEMA | NEMA 1 |
| Protection category to IEC 60 529 | IP 65 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK08 |
| Dimensions | Width: 400 mmHeight: 300 mmDepth: 155 mm |
| Material thickness - cover | 1.25 mm |
| Material thickness - enclosure | 1.25 mm |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 4.78 kg |
| Gross weight | 5 kg |
| PCF per pack (cradle-to-gate) | 24.8 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177816688 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX Bus enclosure, WHD: 400x300x155 mm, sheet steel, with solid base, with hinged cover and viewing window |
