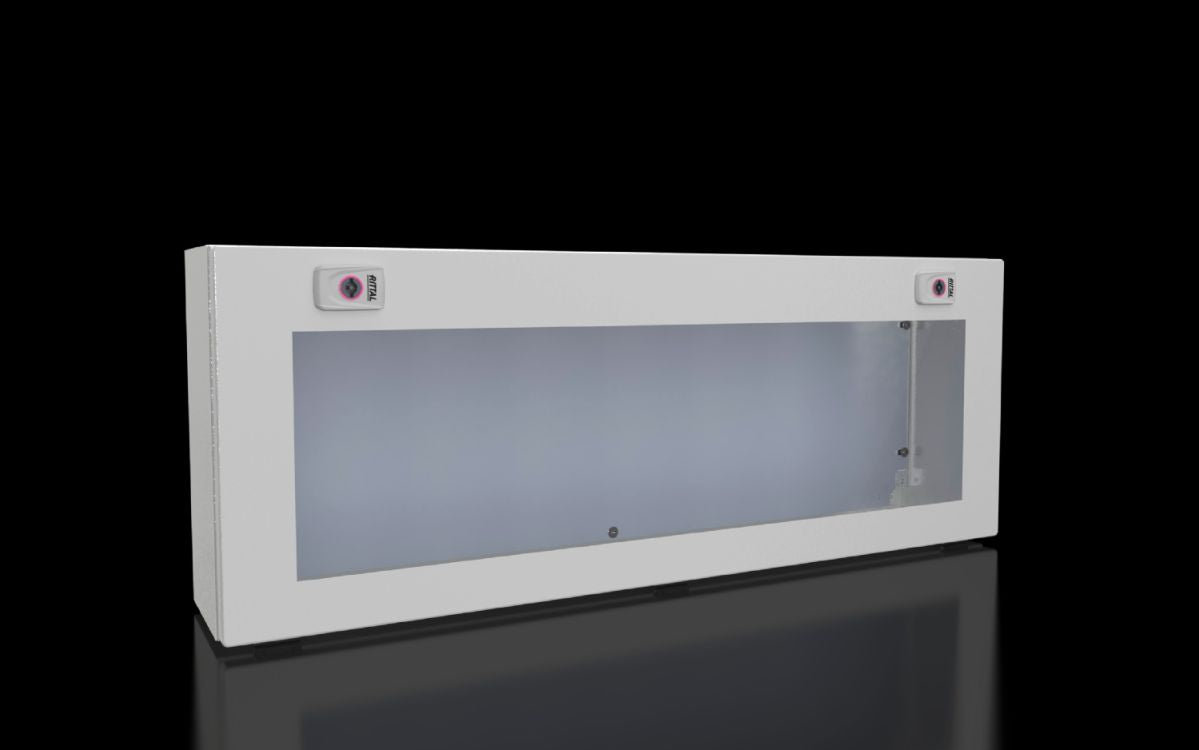

Rittal KX 1613.100, Bus enclosures KX, sheet steel, with double-bit insert
Rittal KX 1613.100, Bus enclosures KX, sheet steel, with double-bit insert
Regular price
€241,83
Regular price
Sale price
€241,83
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 07.12.2025
Couldn't load pickup availability
SKU: SKU:KX 1613.100
Wall-mounted enclosure made from sheet steel, with cover and viewing panel. Protection category IP 65/NEMA 12. For installing most brands of bus modules and sensors.
| Article number: | KX 1613.100 |
| Design | with viewing window |
| Material | Enclosure: Sheet steelCover: Sheet steel, all-round foamed-in PU sealViewing window: Polycarbonate, 4 mmMounting plate: Sheet steel, zinc-plated |
| Surface finish | Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint |
| Colour | RAL 7035 |
| Supply includes | Enclosure with hinged coverViewing window in coverMounting plateCam lock with 3 mm double-bit insert |
| Protection category NEMA | NEMA 1 |
| Protection category to IEC 60 529 | IP 65 |
| Type rating to UL 50E | Type 1 |
| IK Code | IK08 |
| Dimensions | Width: 800 mmHeight: 300 mmDepth: 155 mm |
| Material thickness - cover | 1.25 mm |
| Material thickness - enclosure | 1.25 mm |
| Material thickness of mounting plate | 2 mm |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 12 kg |
| Gross weight | 12.111 kg |
| PCF per pack (cradle-to-gate) | 40.9 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177970038 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX Bus enclosure, WHD: 800x300x155 mm, with mounting plate and cam lock |
